TOP IMSLCHR 102mm standard bore top end rebuild kit for the Honda 675cc single. New, complete.

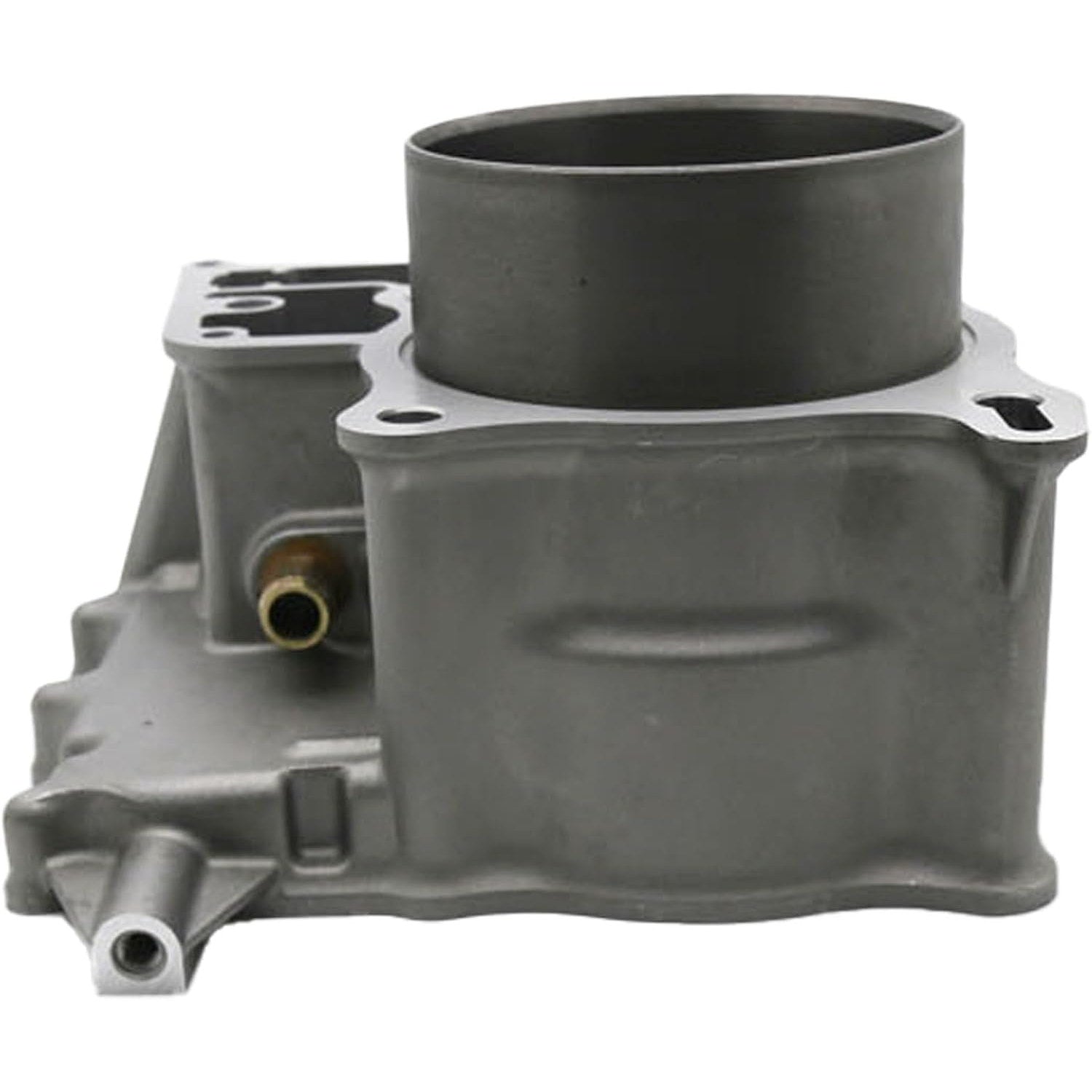

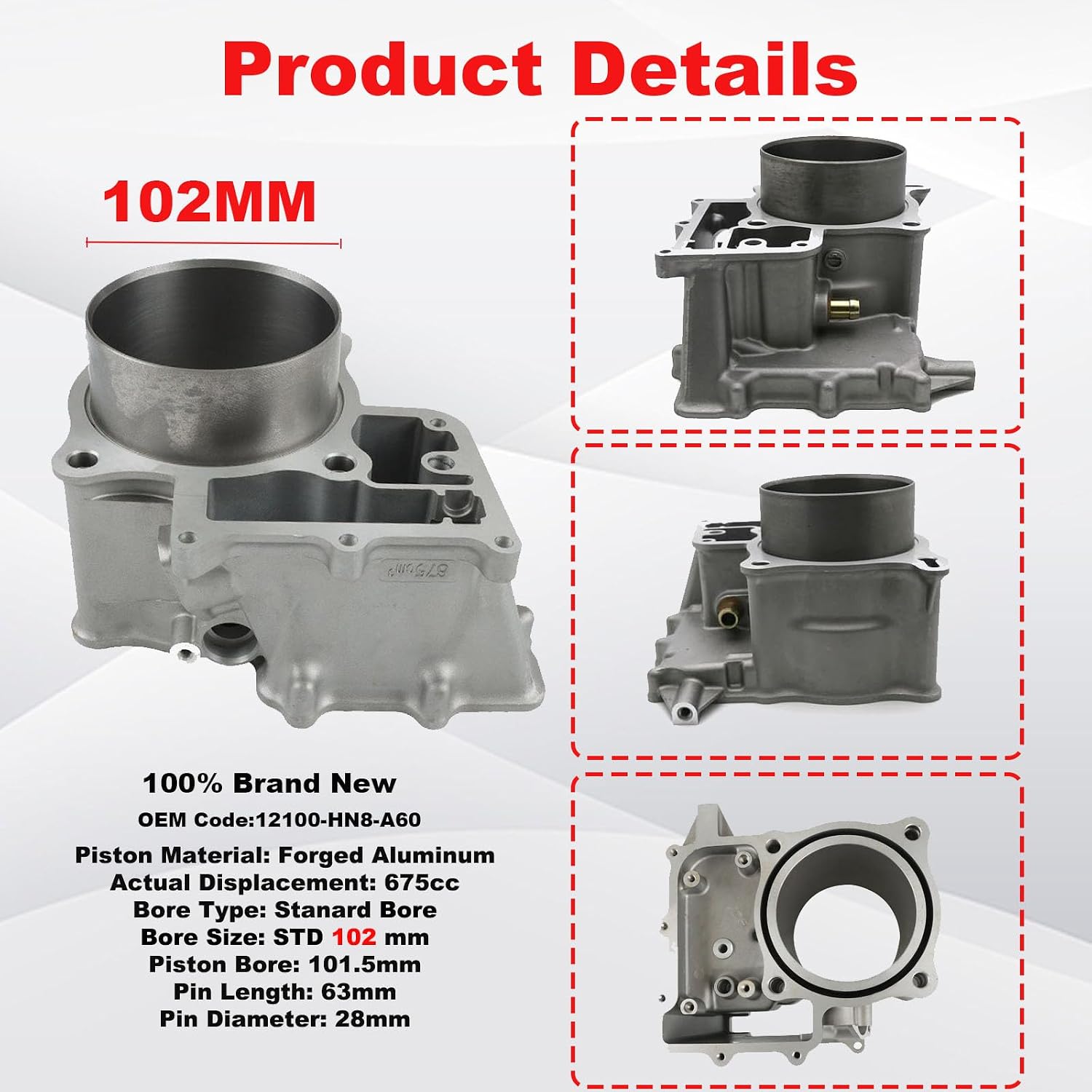

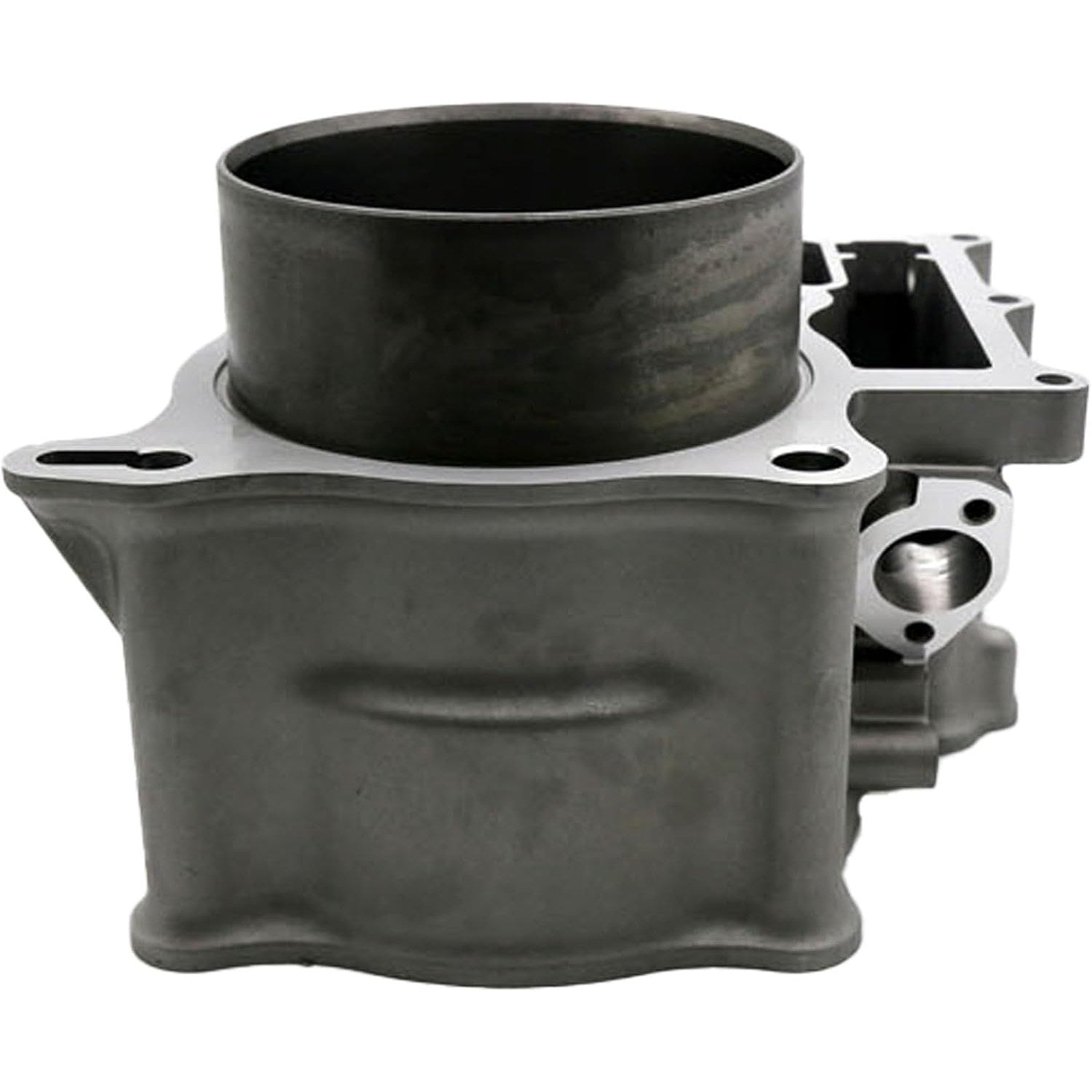

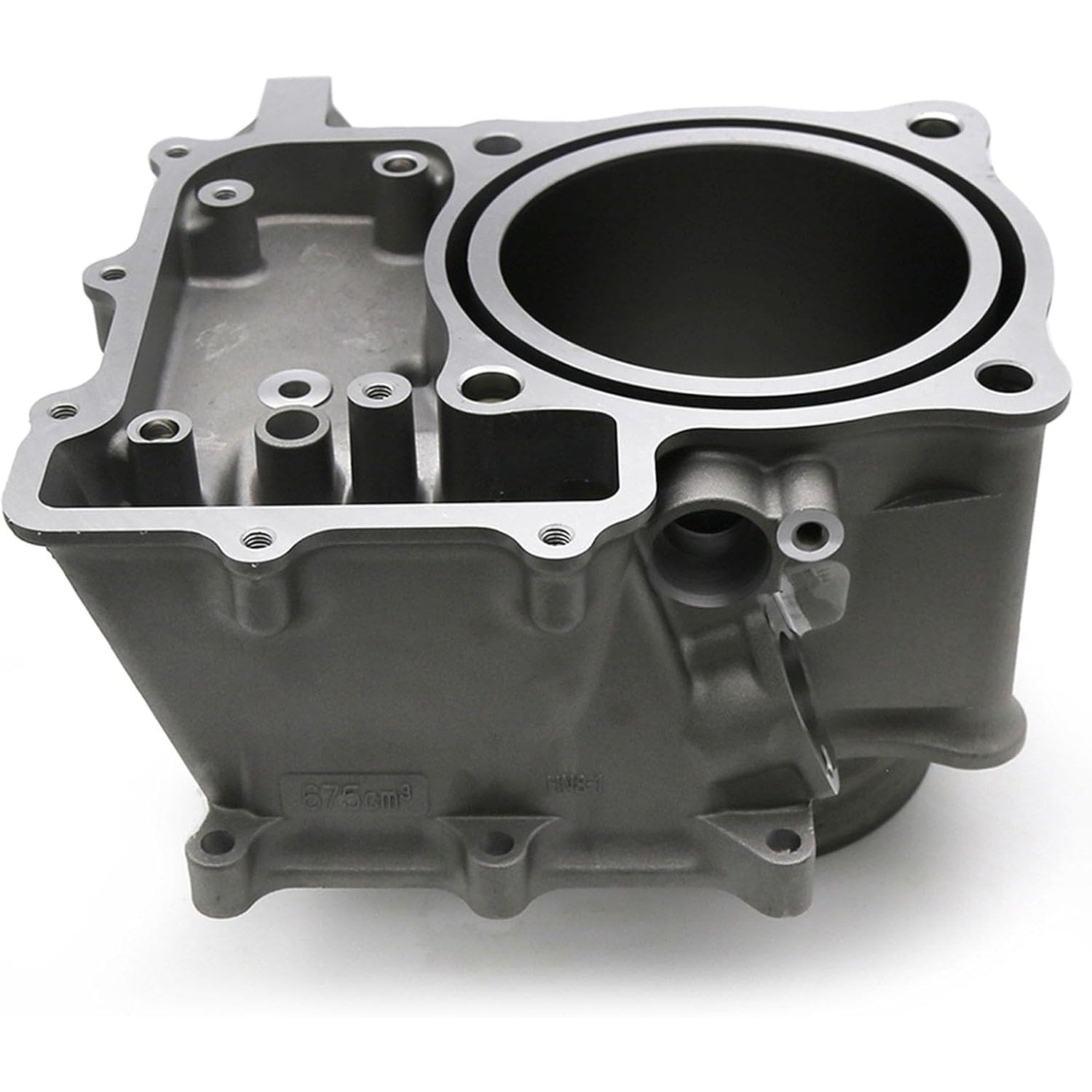

Bore: 102mm standard Cylinder: precision machined, standard bore Piston: cast with high silicon content, Teflon coated skirts, anodized dome

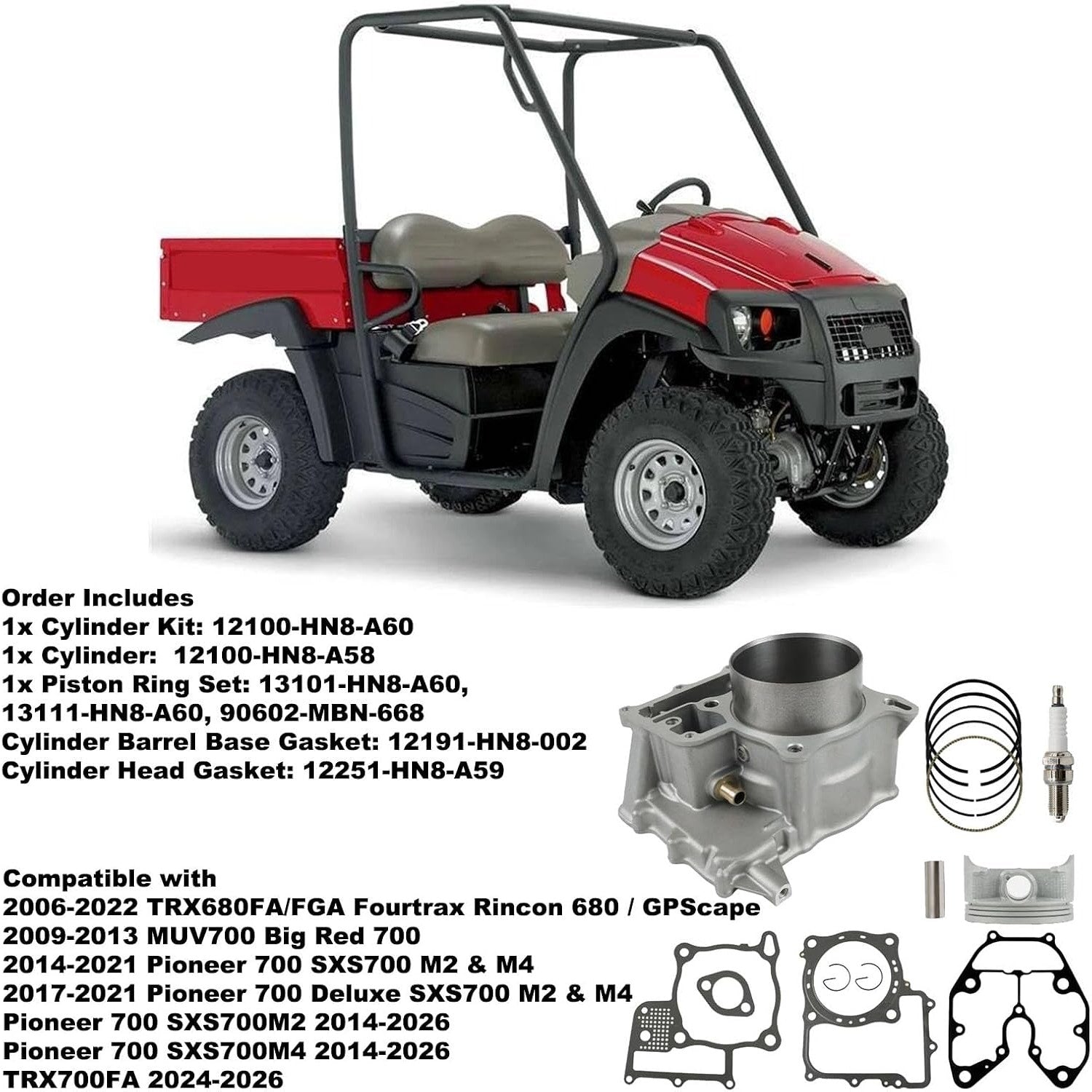

Fitment Honda TRX680FA and TRX680FGA Fourtrax Rincon 680 and GPScape, 2006 to 2022 Honda MUV700 Big Red 700, 2009 to 2013 Honda Pioneer 700 SXS700 M2 and M4, 2014 to 2021 Honda Pioneer 700 Deluxe SXS700 M2 and M4, 2017 to 2021
Replaces Cylinder 12100-HN8-A60 Piston 13101-HN8-A60 Ring set 13010-HN8-A61 Piston pin 13111-HN8-A60 Circlips 90602-MBN-670 Base gasket 12191-HN8-000 Head gasket 12251-HN8-A61 Head cover gasket 12315-HN8-000 Tensioner gasket 12194-HC5-740

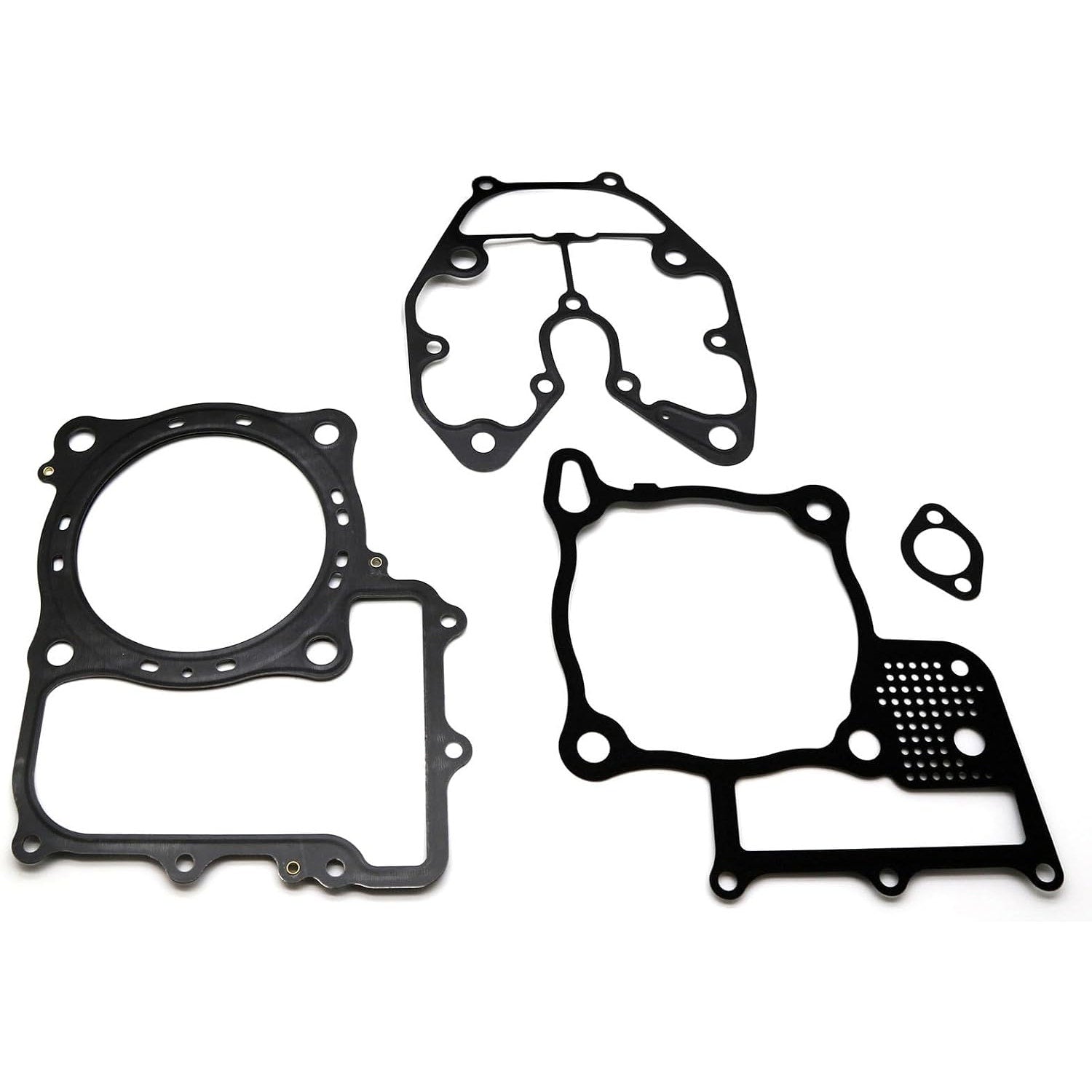

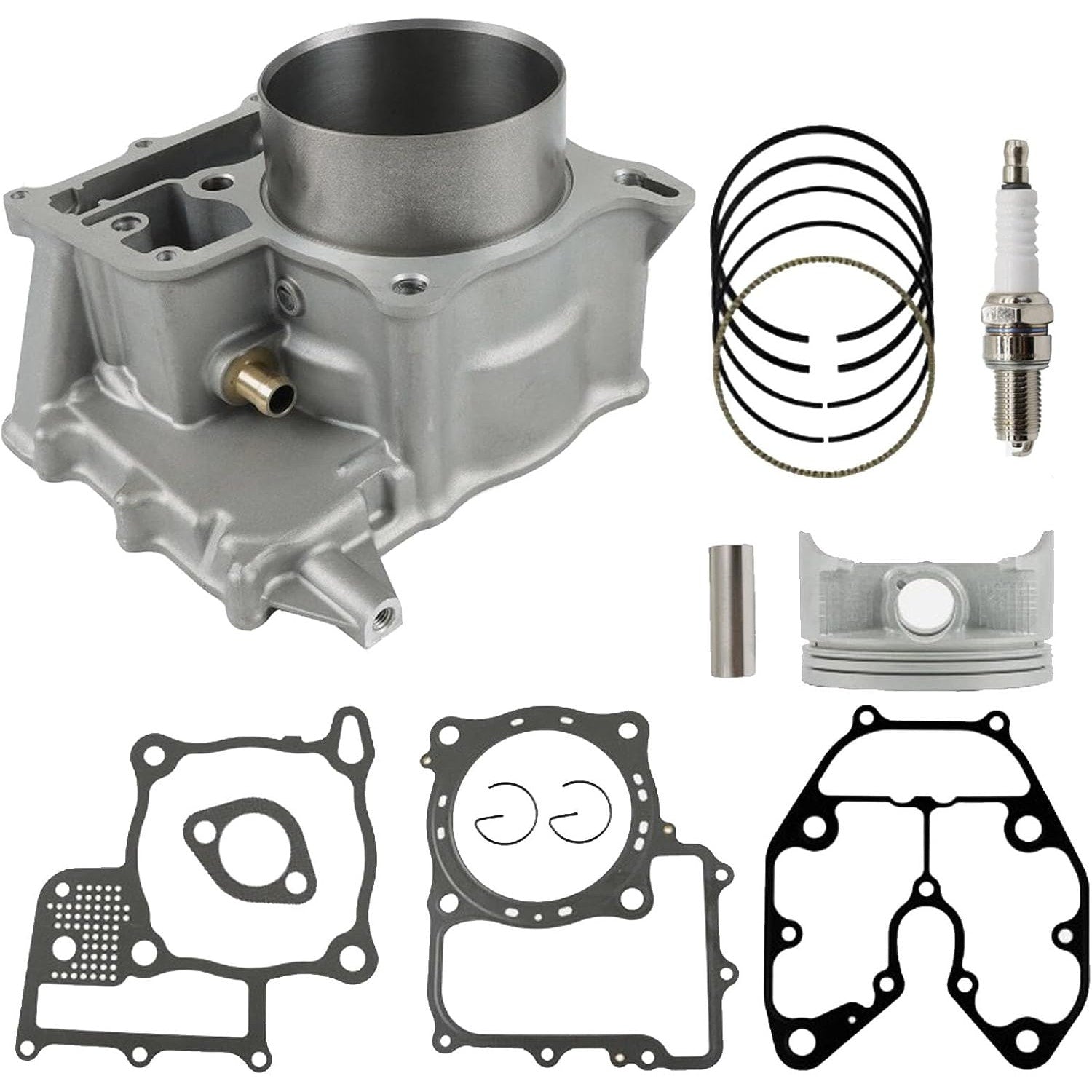

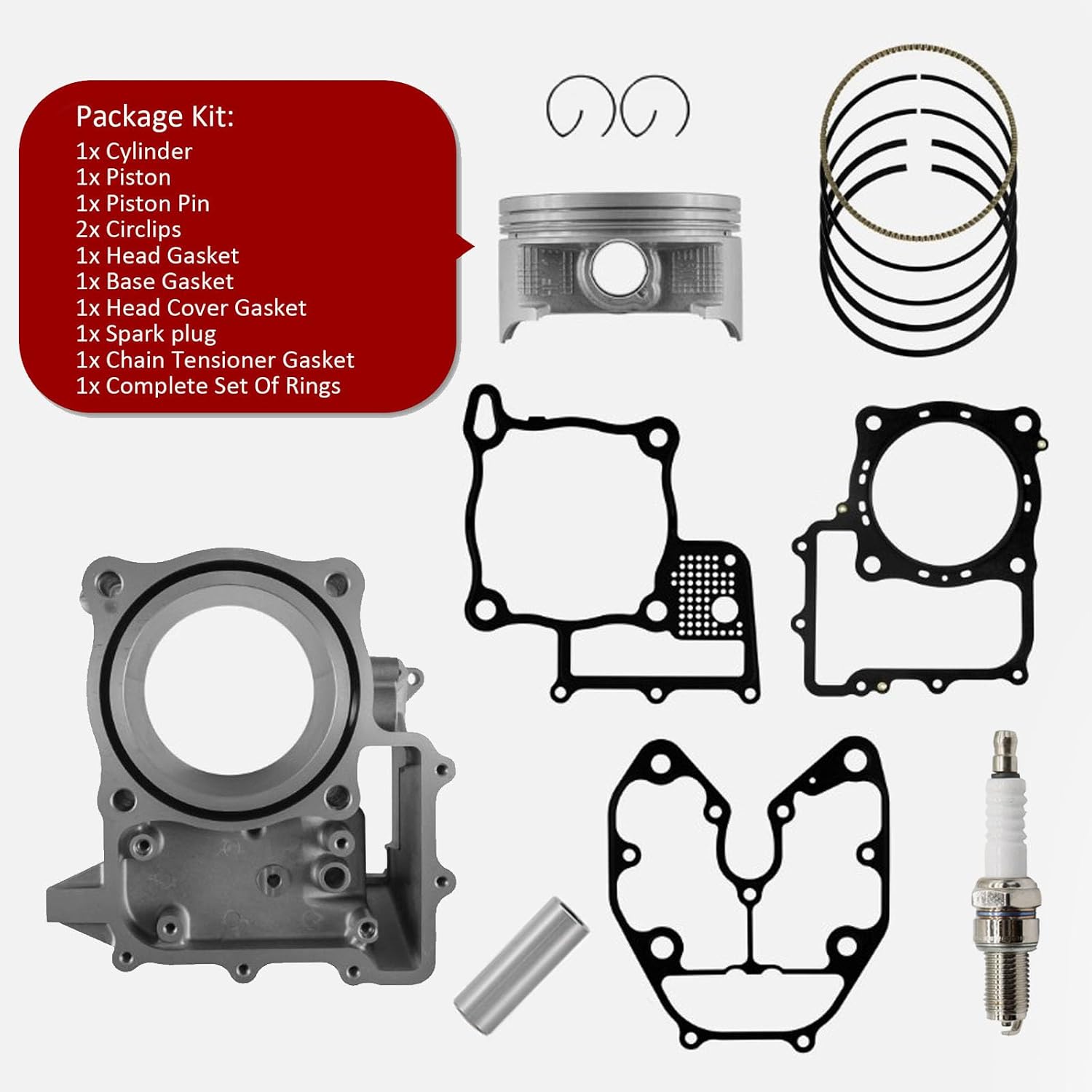

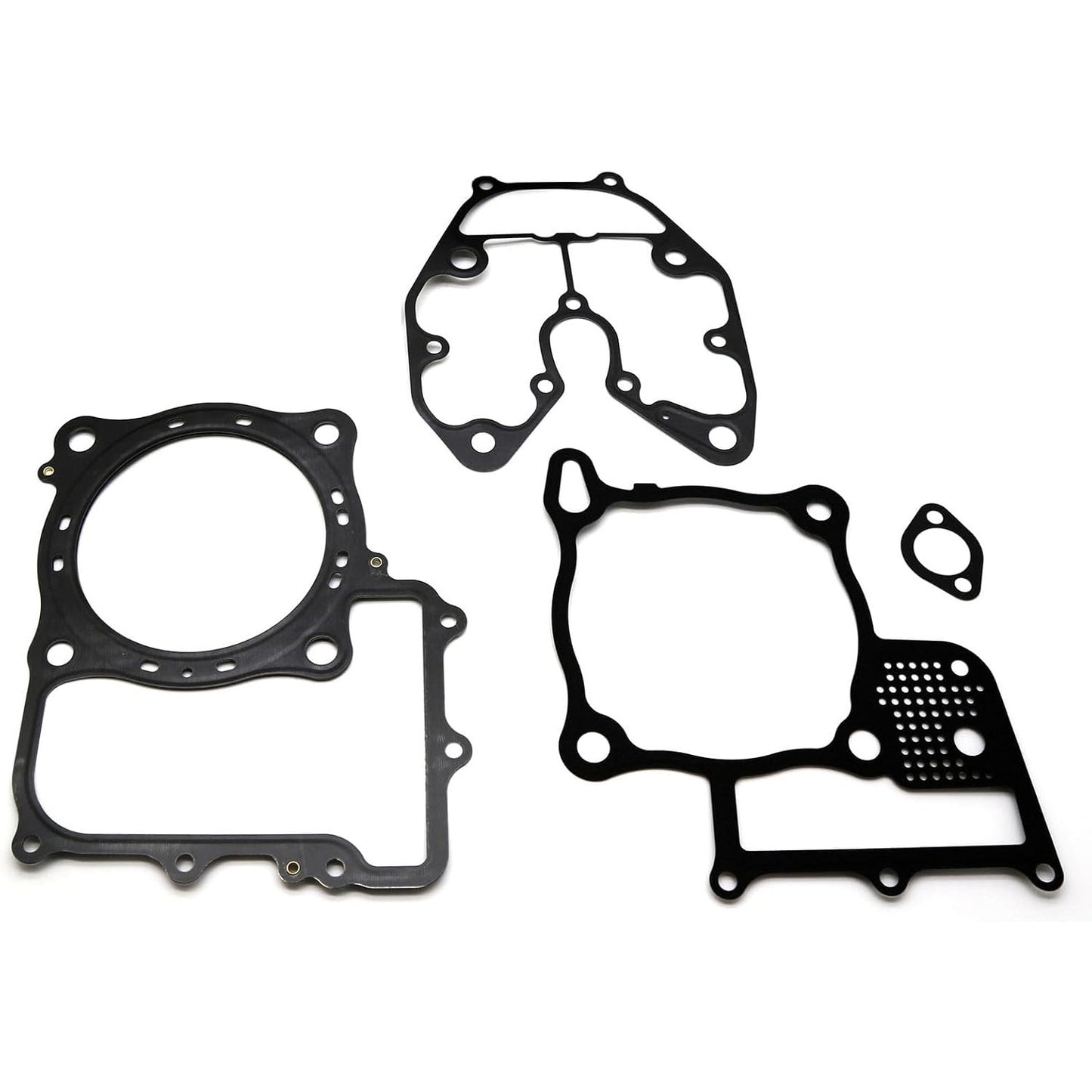

Included: cylinder, piston, ring set, piston pin, circlips and full top end gasket kit.
This is a liquid cooled engine. Drain and refill the coolant during the rebuild, and check the head and mating surfaces for warp before assembly.
ADDITIONAL INFORMATION FOR VERIFICATION: Brand: TOP IMSLCHR Type: Cylinder Piston Gasket Top End Rebuild Kit Bore Size: 102mm Bore Type: Standard Bore Manufacturer Part Number: 12100-HN8-A60 Reference OEM Number: 13101-HN8-A60, 13010-HN8-A61, 13111-HN8-A60, 90602-MBN-670, 12191-HN8-000, 12251-HN8-A61, 12315-HN8-000, 12194-HC5-740 Cylinder Material: Aluminum Piston Material: Cast Aluminum, Teflon Coated Items Included: Cylinder, Piston, Piston Rings, Piston Pin, Circlips, Gasket Kit Compatible Vehicle Make: Honda Placement on Vehicle: Front Country of Origin: China Condition: New
