4in Submersible Effluent Pump 3/4HP 32GPM 174FT Head 115V Septic Cistern Well
4in Submersible Effluent Pump 3/4HP 32GPM 174FT Head 115V Septic Cistern Well
Regular price
$254.99 USD
Regular price
$569.99 USD
Sale price
$254.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
4 inch Stainless Steel Submersible Effluent Pump. High head cistern and deep well pump with float switch.
BRAND: VORTPUMP
PRODUCT TYPE: Submersible High Head Effluent Cistern Pump
MANUFACTURER PART#:
MOTOR: 3/4 HP, 115V 60Hz, capacitor start, hermetically sealed and thermally protected
MAX FLOW: 32 GPM
MAX HEAD: 174 FT
DISCHARGE: 1-1/4 inch FNPT
CASING: Fits 4 inch well casings and larger
CORD: 33 ft UL listed cord with float switch
DESIGN: Stainless steel body with multistage impeller and stainless filtration mesh. Bottom suction design allows maximum drawdown without requiring a flow inducer sleeve.
INTENDED USE: Filtered effluent and gray water service, cistern and holding tank transfer, aerobic septic sprinkler and drip discharge, deep well water supply, irrigation, and drainage. Suitable for residential, agricultural, and commercial installations.
IMPORTANT LIMITATION: This is a high head effluent pump, not a sewage or grinder pump. It is designed for clean tanks and filtered effluent and will NOT pass solids. Do not install in a raw sewage or solids handling application.
INSTALLATION: Support the pump with a proper lifting rope. NEVER use the power cable as a hanging rope. A licensed installer is recommended.
DISCLAIMER: We sell parts only and do not complete installations.
ADDITIONAL INFORMATION FOR VERIFICATION:
Type: Submersible Effluent Pump
Horsepower: 3/4 HP
Maximum Flow Rate: 32 GPM
Maximum Head: 174 ft
Voltage: 115 V
Frequency: 60 Hz
Discharge Size: 1-1/4 in FNPT
Casing Size: 4 in
Cord Length: 33 ft
Material: Stainless Steel
Features: Float Switch, Bottom Suction, Multistage Impeller, Thermal Protection
Country/Region of Manufacture: China

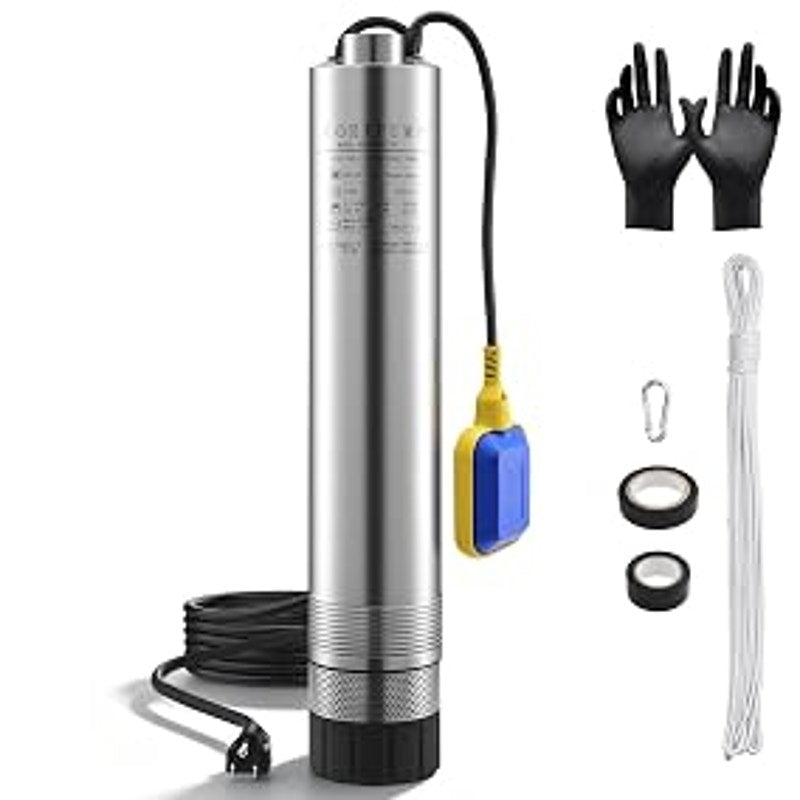

IN THE BOX: Submersible pump, tethered float switch, 33 ft UL power cord, braided lifting rope, rope clip, work gloves, and 2 rolls of electrical tape for splice sealing.
FLOAT SWITCH: Tethered style. Requires clearance inside the tank or basin to swing freely. Confirm your tank diameter allows the float to travel.
BRAND: VORTPUMP
PRODUCT TYPE: Submersible High Head Effluent Cistern Pump
MANUFACTURER PART#:
MOTOR: 3/4 HP, 115V 60Hz, capacitor start, hermetically sealed and thermally protected
MAX FLOW: 32 GPM
MAX HEAD: 174 FT
DISCHARGE: 1-1/4 inch FNPT
CASING: Fits 4 inch well casings and larger
CORD: 33 ft UL listed cord with float switch
DESIGN: Stainless steel body with multistage impeller and stainless filtration mesh. Bottom suction design allows maximum drawdown without requiring a flow inducer sleeve.
INTENDED USE: Filtered effluent and gray water service, cistern and holding tank transfer, aerobic septic sprinkler and drip discharge, deep well water supply, irrigation, and drainage. Suitable for residential, agricultural, and commercial installations.
IMPORTANT LIMITATION: This is a high head effluent pump, not a sewage or grinder pump. It is designed for clean tanks and filtered effluent and will NOT pass solids. Do not install in a raw sewage or solids handling application.
INSTALLATION: Support the pump with a proper lifting rope. NEVER use the power cable as a hanging rope. A licensed installer is recommended.
DISCLAIMER: We sell parts only and do not complete installations.
ADDITIONAL INFORMATION FOR VERIFICATION:
Type: Submersible Effluent Pump
Horsepower: 3/4 HP
Maximum Flow Rate: 32 GPM
Maximum Head: 174 ft
Voltage: 115 V
Frequency: 60 Hz
Discharge Size: 1-1/4 in FNPT
Casing Size: 4 in
Cord Length: 33 ft
Material: Stainless Steel
Features: Float Switch, Bottom Suction, Multistage Impeller, Thermal Protection
Country/Region of Manufacture: China
IN THE BOX: Submersible pump, tethered float switch, 33 ft UL power cord, braided lifting rope, rope clip, work gloves, and 2 rolls of electrical tape for splice sealing.
FLOAT SWITCH: Tethered style. Requires clearance inside the tank or basin to swing freely. Confirm your tank diameter allows the float to travel.
