67mm big bore top end kit for the Honda 230. New, complete.
This is a big bore performance kit, not a stock rebuild. Factory bore is 65.5mm at 223cc. This takes the engine to 67mm and roughly 235cc at 11.9 to 1 compression. Plan on rejetting the carburetor and running premium fuel.

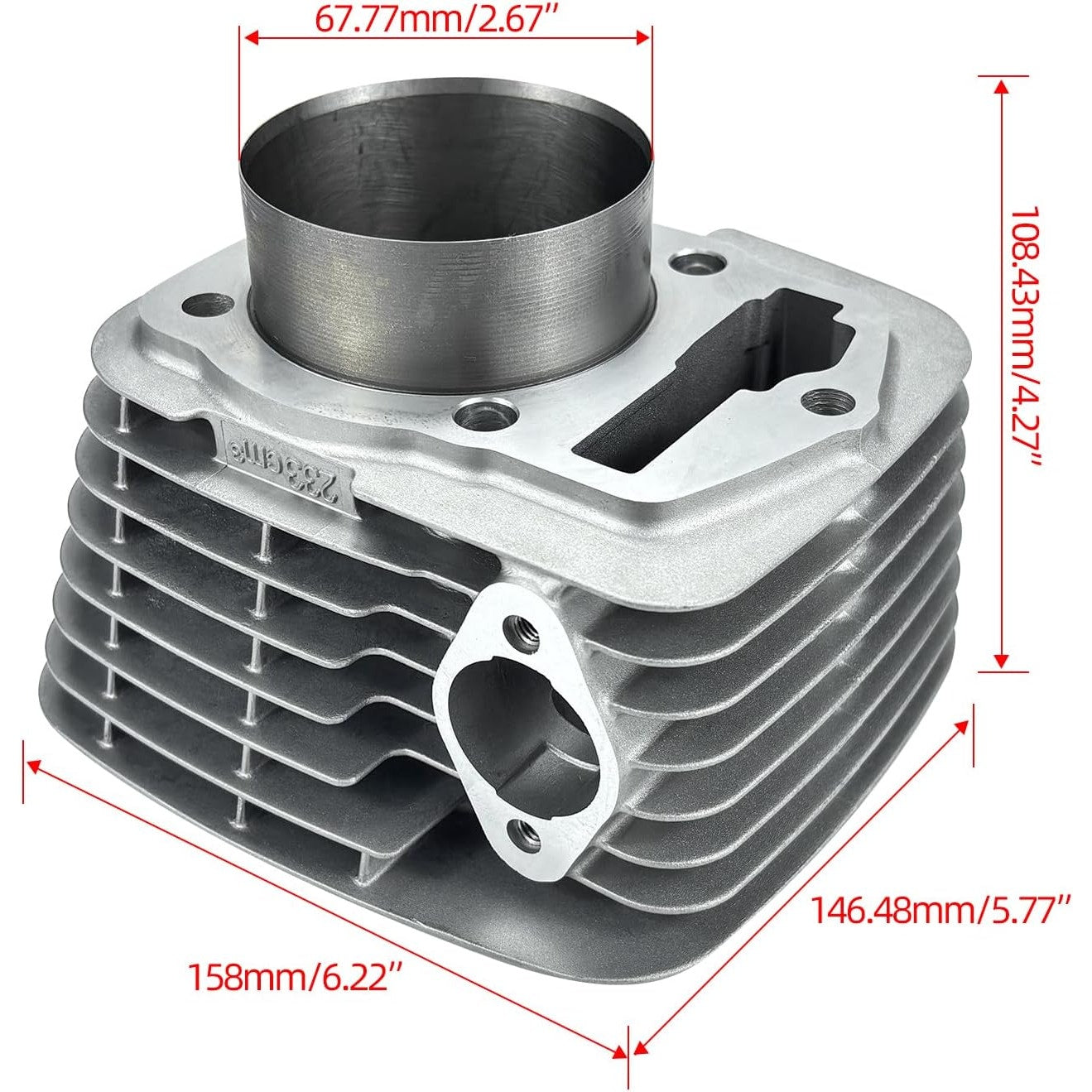

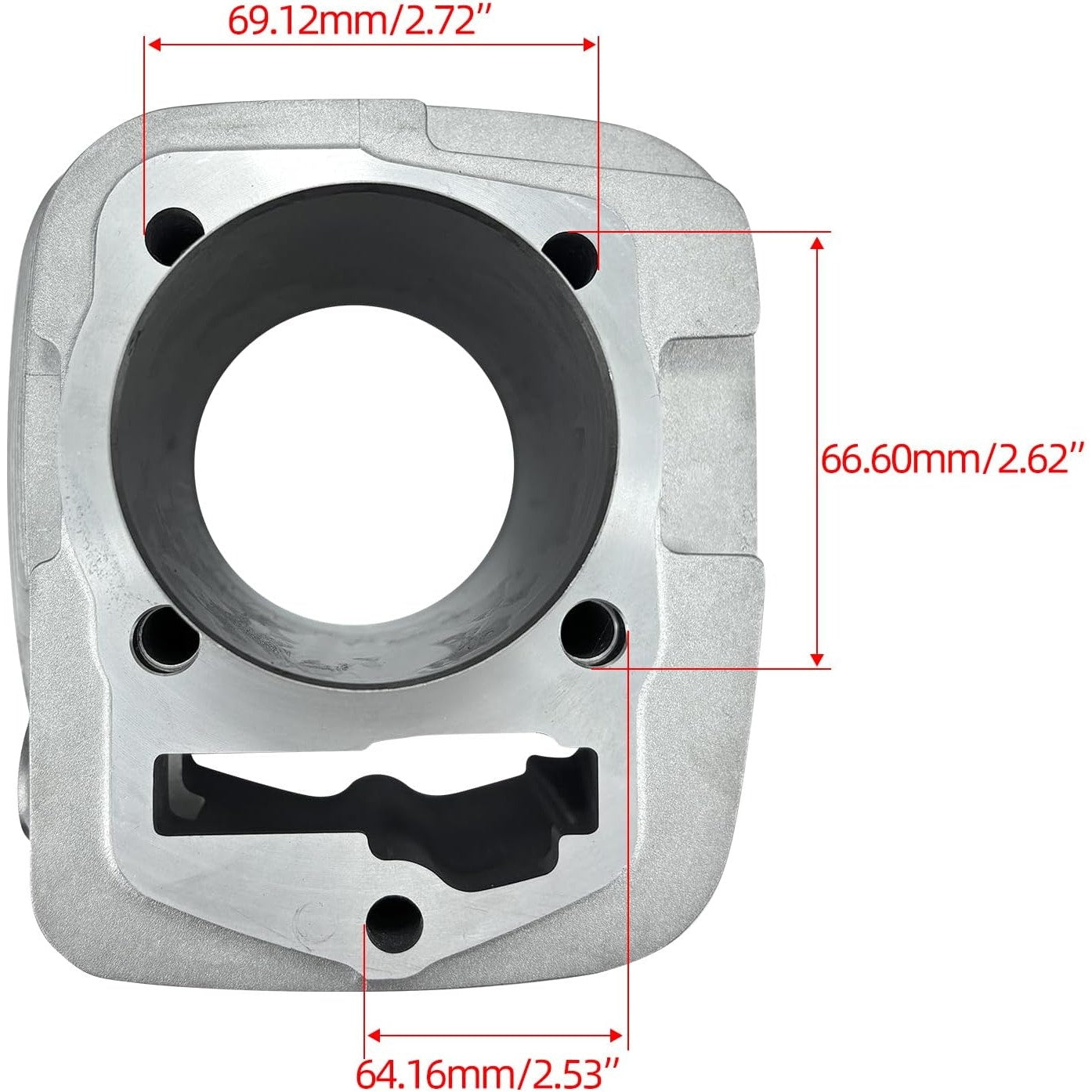

Bore: 67mm Stroke: 62.2mm Displacement: approximately 235cc Compression: 11.9 to 1 Piston pin: 15mm diameter, 47mm long Cylinder height: 81.5mm Overall height: 107.5mm Ring groove: 0.8 x 0.8 x 1.5
Fitment Honda CRF230F, 2003 to 2019 Honda CRF230L, 2008 to 2009 Honda CRF230M, 2009 Honda XR230, 2003 to 2009 Honda SL230, 1997 to 2008 Honda FTR223, 2000 to 2016 Honda CB223S, 2008 to 2016 Honda XL230, 2002
Replaces Cylinder 12100-KFB-000 Piston 13101-KFB-750 Ring set 13011-KFB-305 Piston pin 13111-440-000 Circlips 13112-KPS-900 Base gasket 12191-KCN-020, 12191-KCN-010 Head gasket 12251-KT0-711 Carb insulator gasket 16214-KPS-902 Valve stem seal 12208-413-003

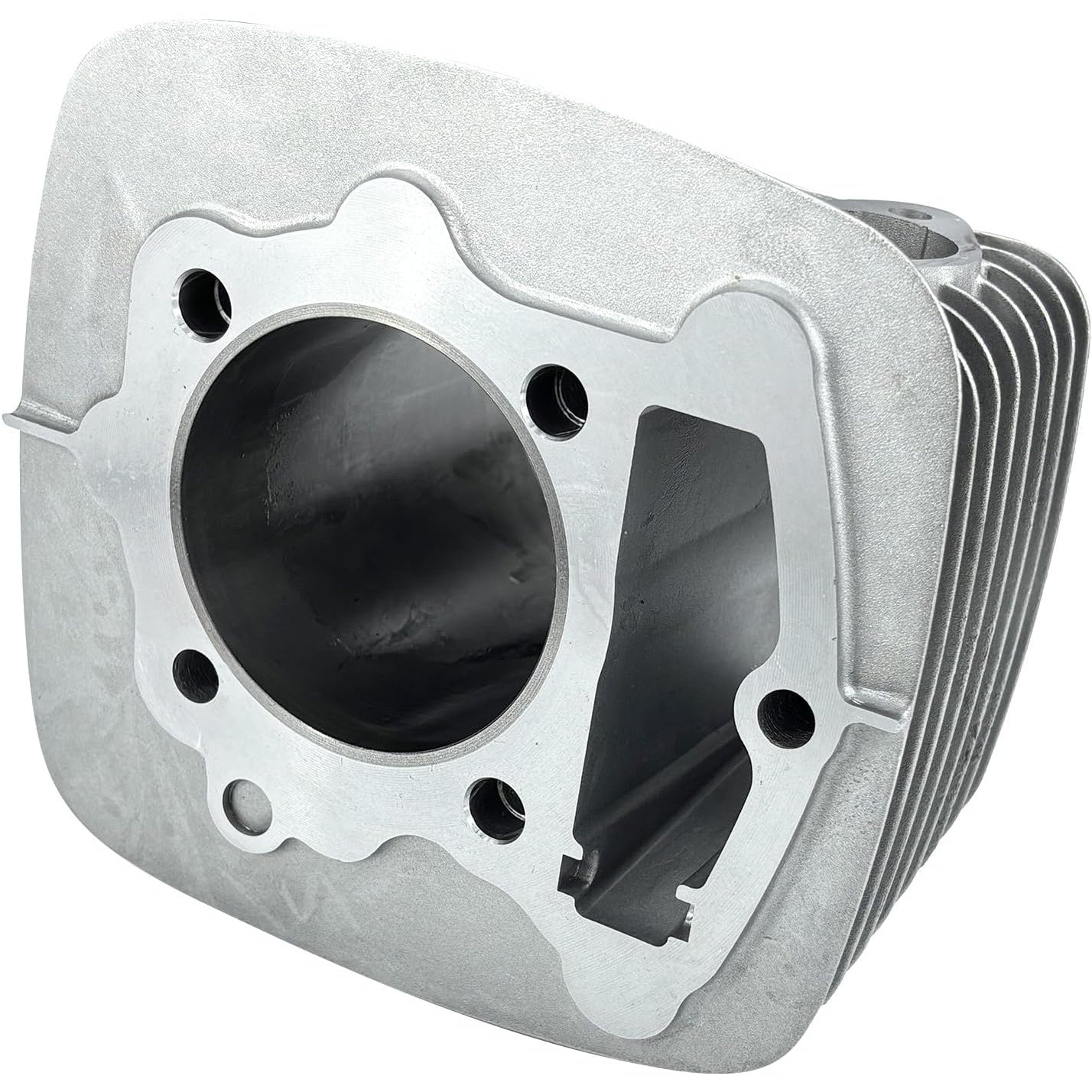

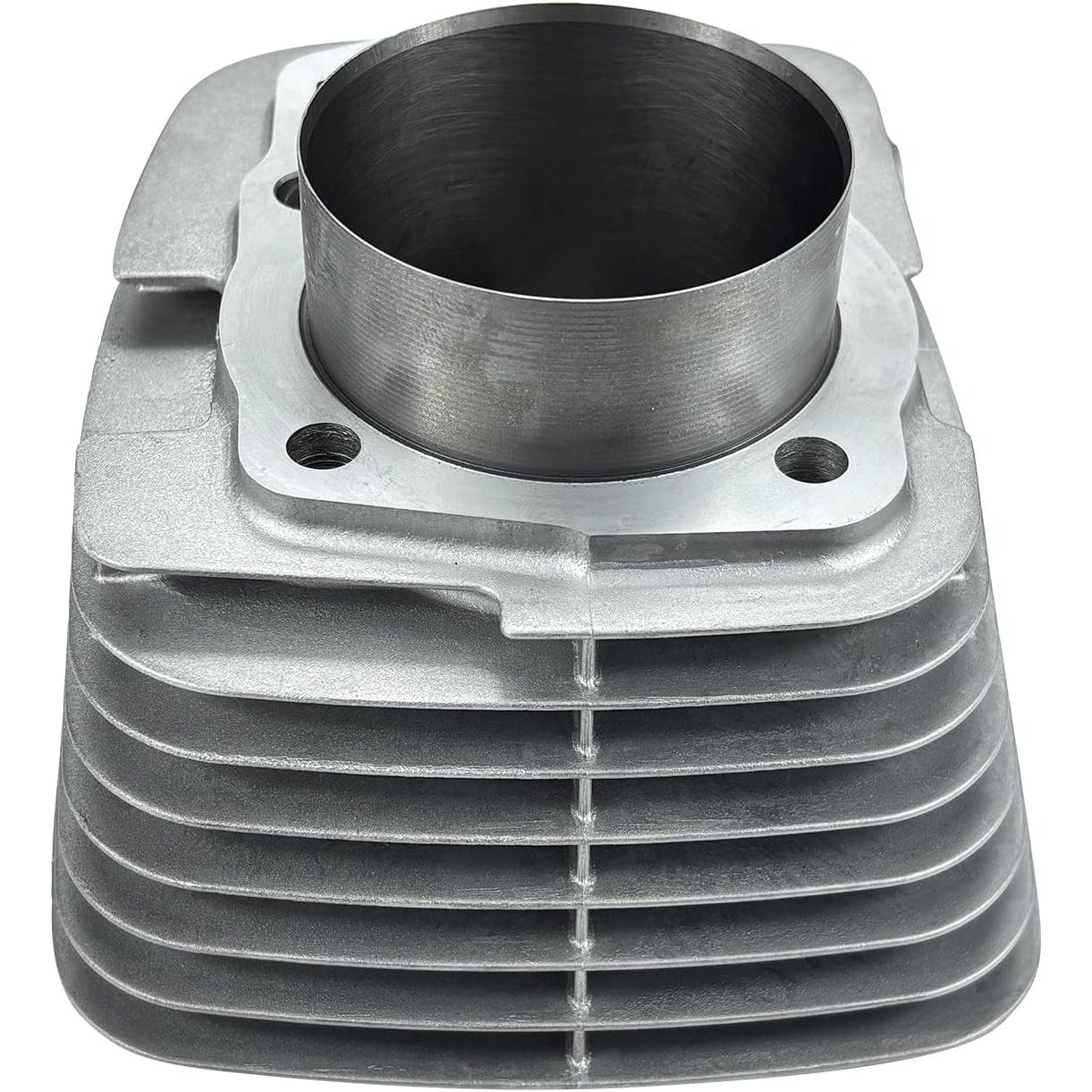

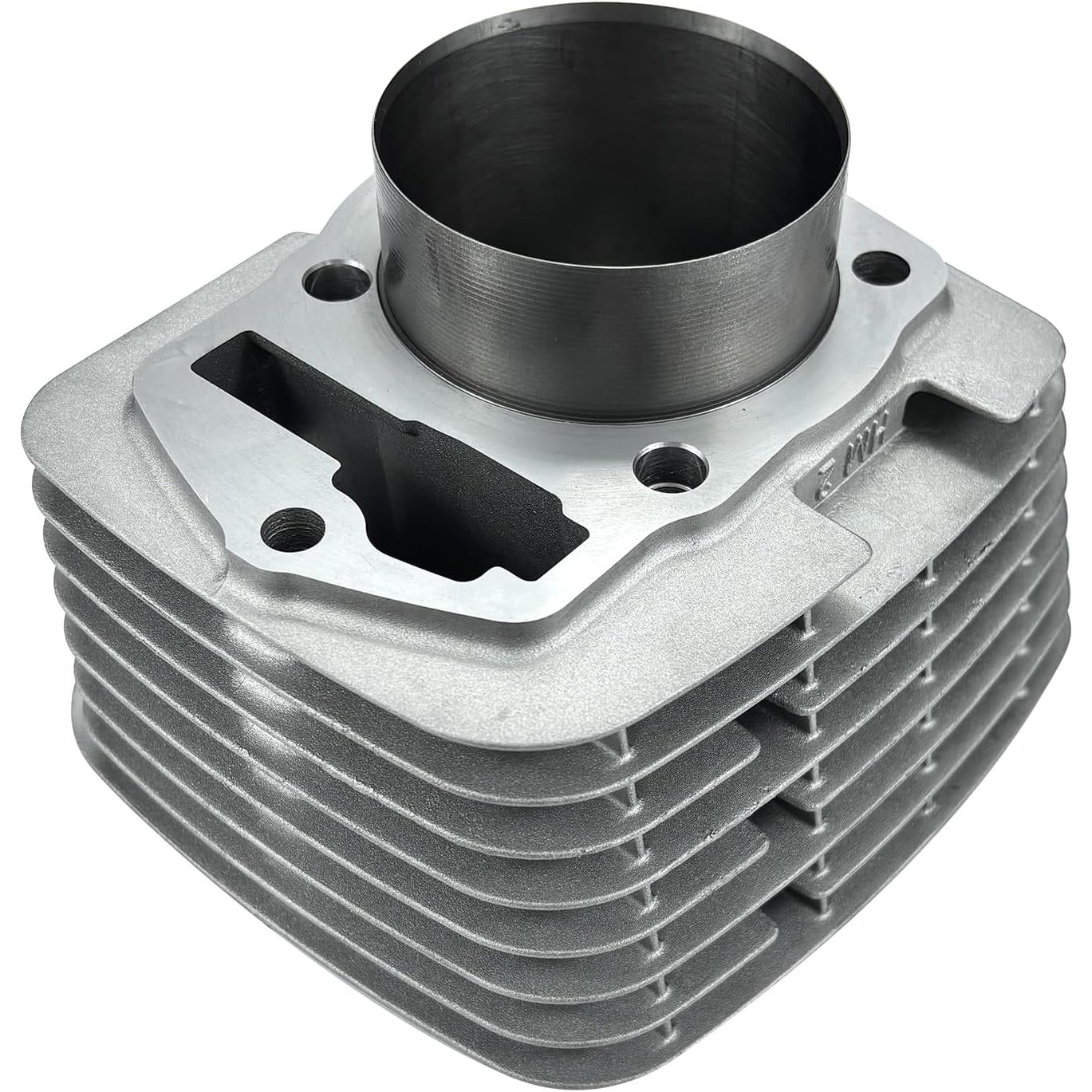

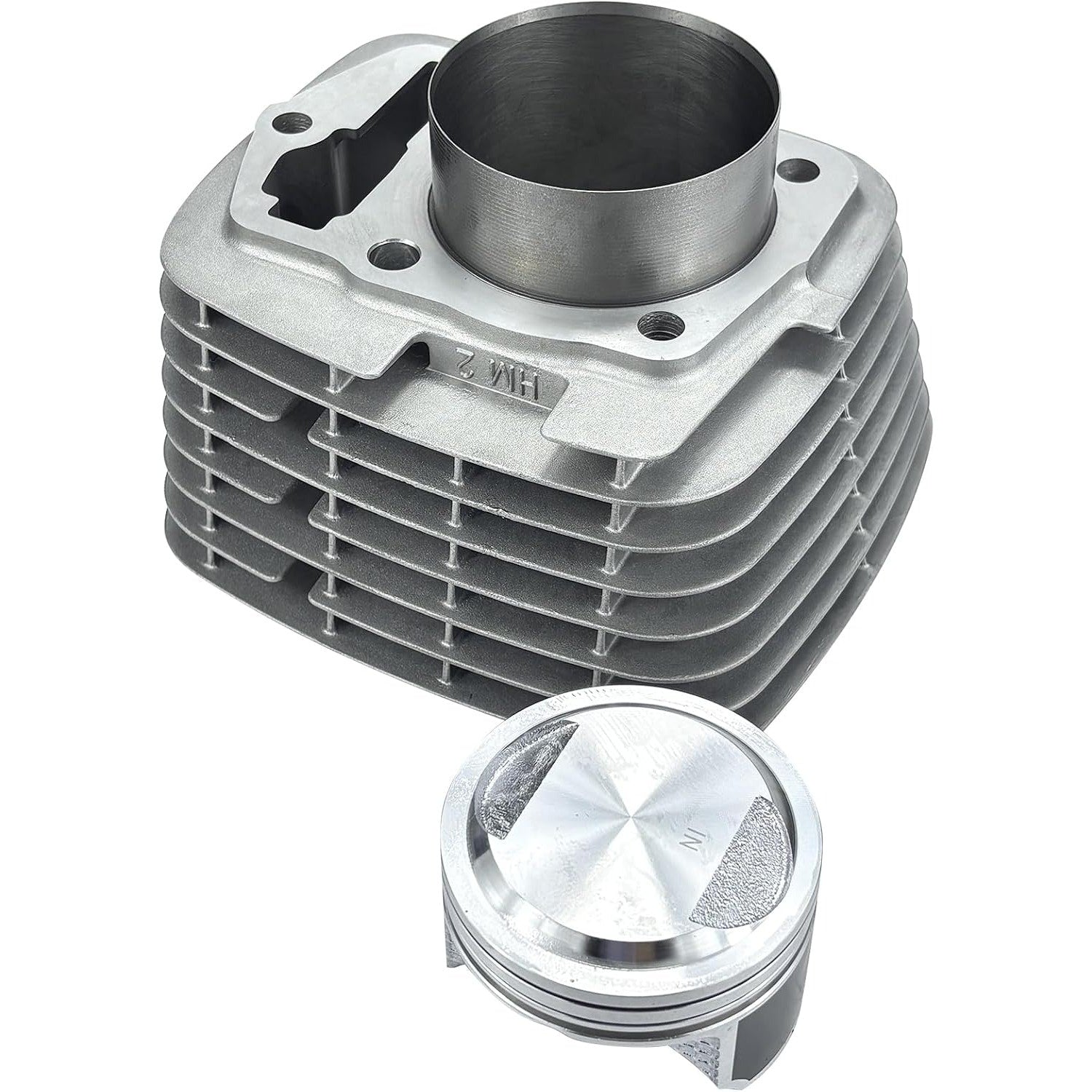

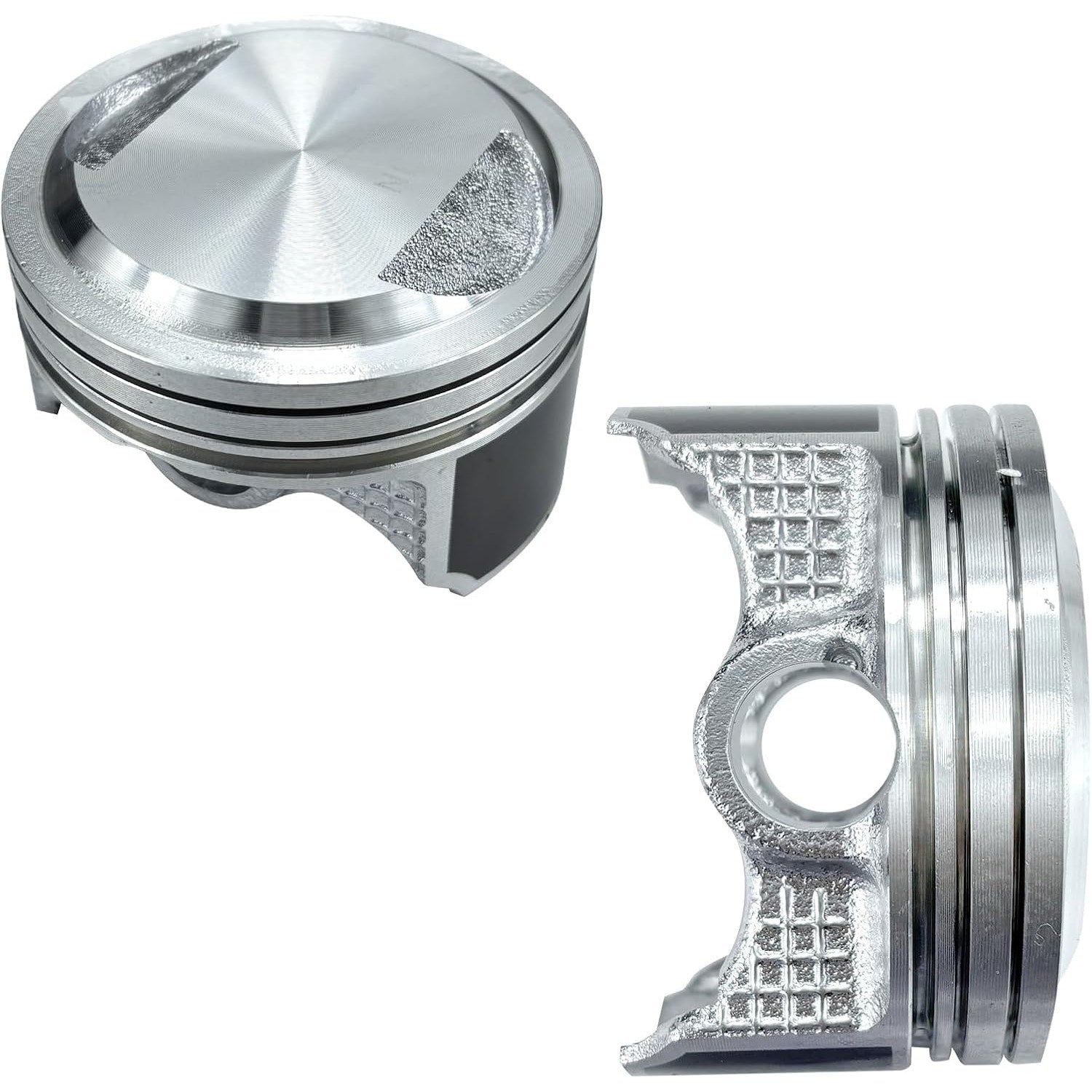

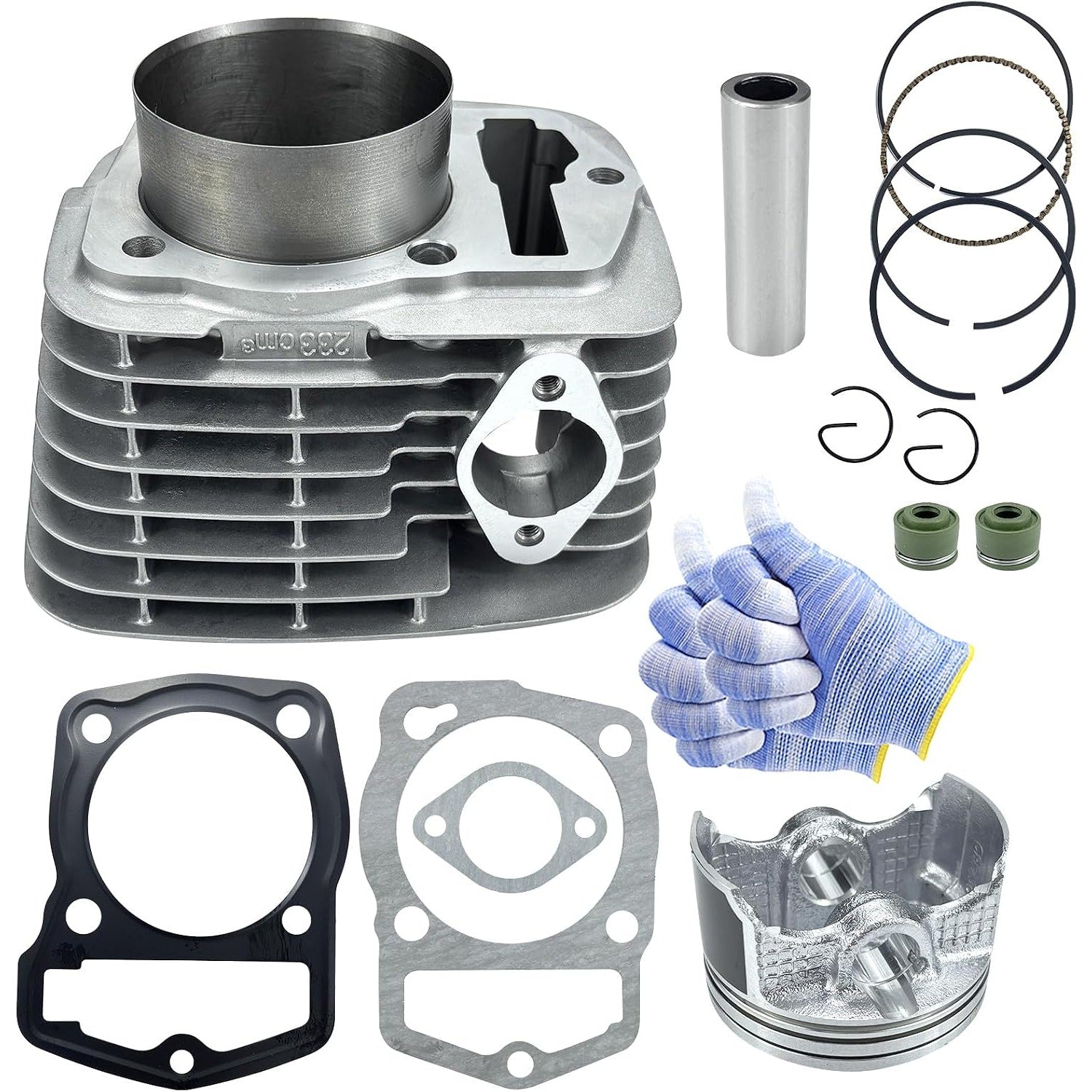

Included: cylinder, piston, ring set, piston pin, circlips, top end gasket set and valve oil seals.
No installation instructions included. Compare to your old parts before ordering.
ADDITIONAL INFORMATION FOR VERIFICATION: Type: Cylinder Piston Gasket Top End Rebuild Kit Bore Type: Big Bore Bore Size: 67mm Stroke: 62.2mm Displacement: 235cc Compression Ratio: 11.9:1 Piston Pin Diameter: 15mm Manufacturer Part Number: 12100-KFB-000 Reference OEM Number: 13101-KFB-750, 13011-KFB-305, 13111-440-000, 13112-KPS-900, 12191-KCN-020, 12191-KCN-010, 12251-KT0-711, 16214-KPS-902, 12208-413-003 Cylinder Material: Cast Iron Piston Material: Aluminum Items Included: Cylinder, Piston, Piston Rings, Piston Pin, Circlips, Gasket Kit, Valve Oil Seals Compatible Vehicle Make: Honda Compatible Vehicle Model: CRF230F, CRF230L, CRF230M, XR230, SL230, FTR223, CB223S Placement on Vehicle: Front Country of Origin: China Condition: New
