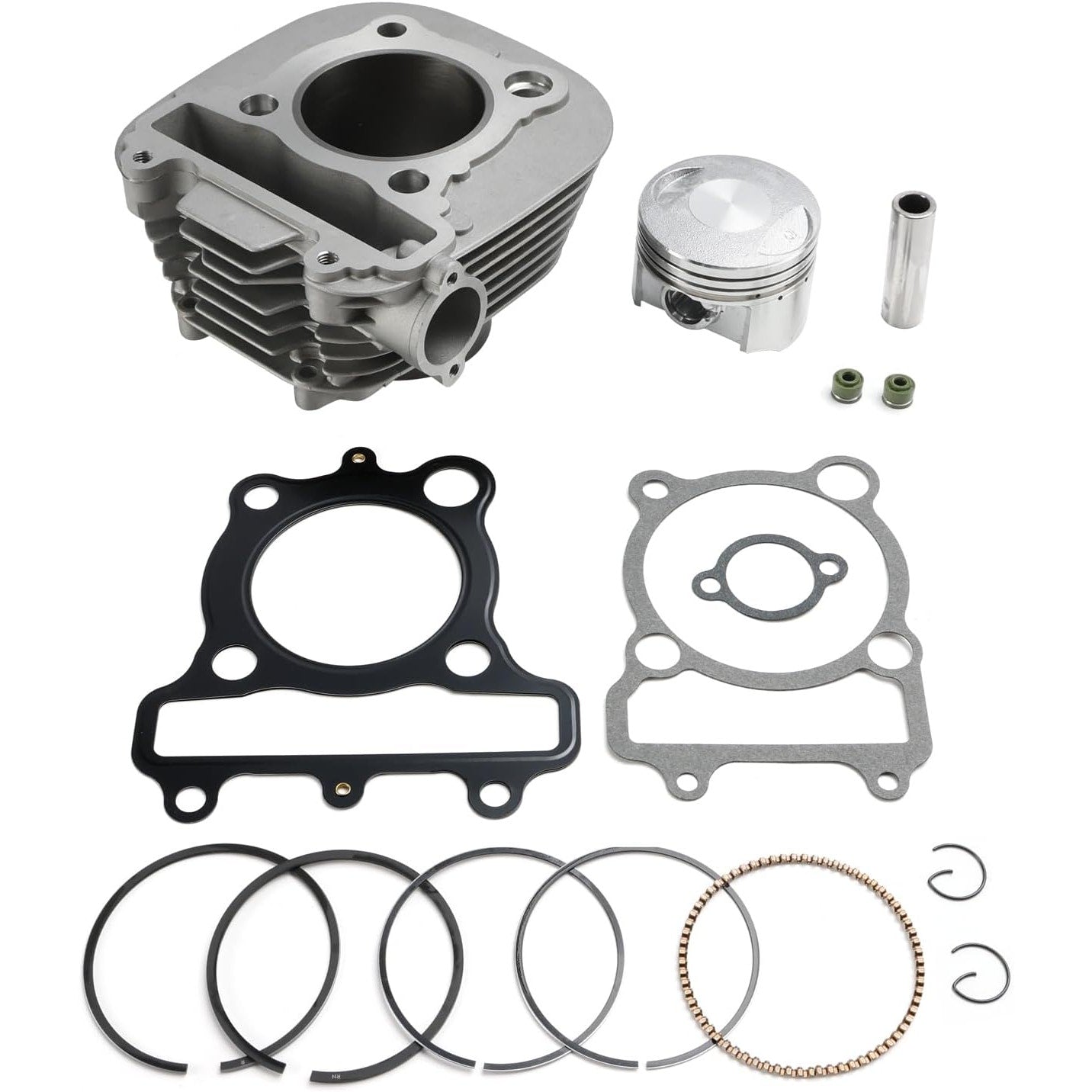

67mm Cylinder Piston Top End Kit Yamaha TW200 1987-2024 BW200 21V-11310-00

Artudatech 67mm standard bore top end rebuild kit. New, complete set.

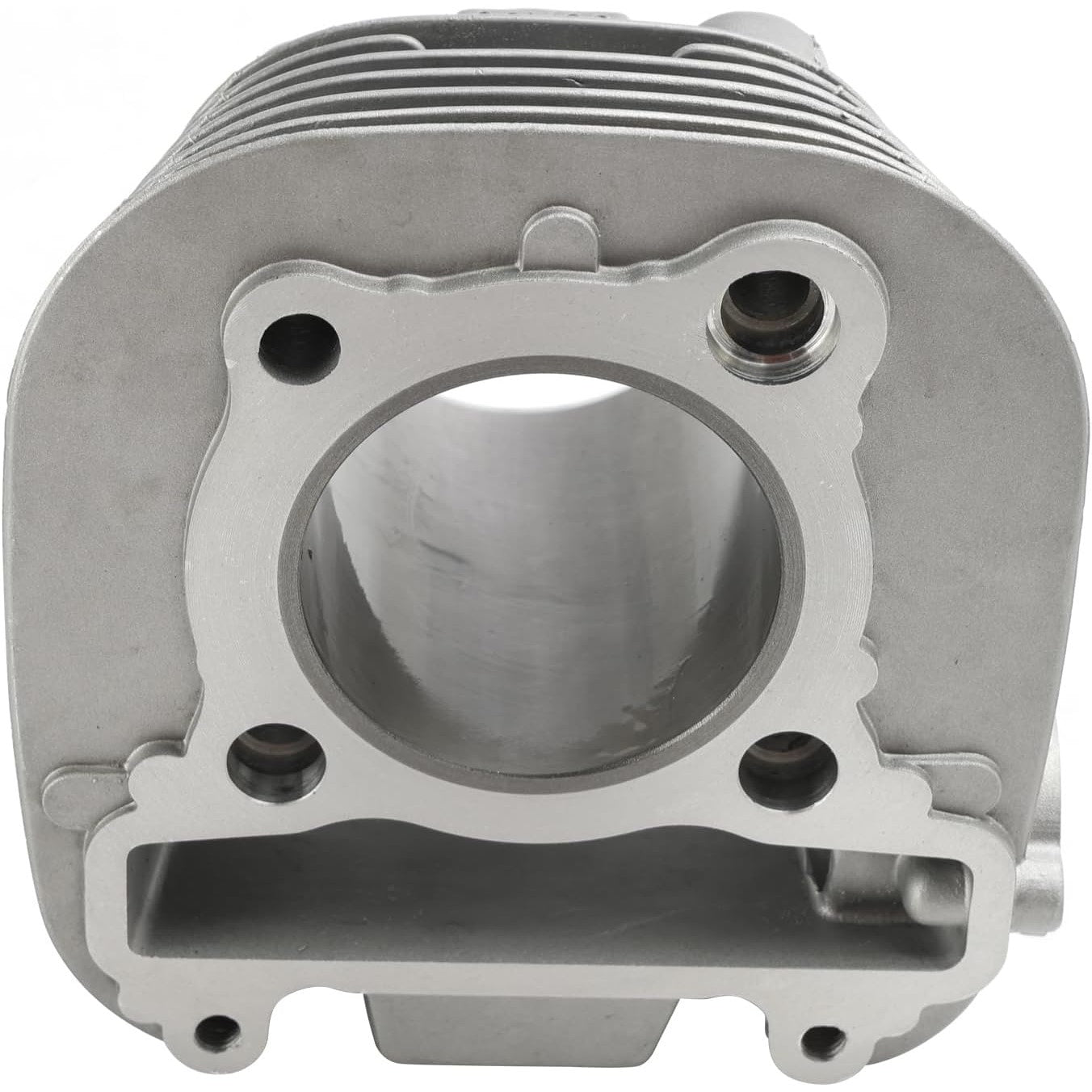

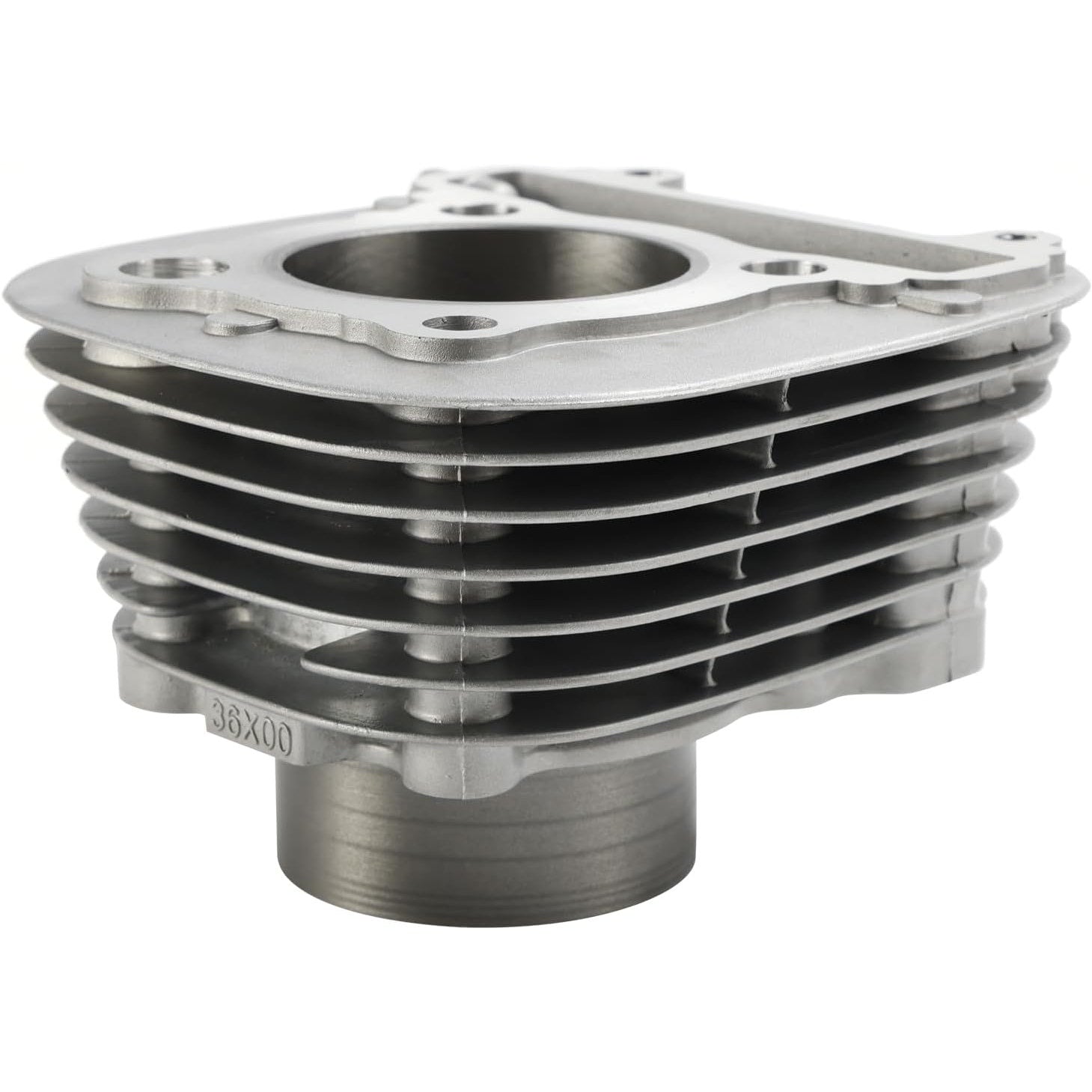

Bore 67.0mm standard, stroke 55.7mm, 196cc, 4 stroke, 16mm piston pin, 9.5 to 1 compression. High grade cast aluminum cylinder with forged anodized aluminum piston.

Fitment
Yamaha TW200 Trailway 200, 1987 to 2024
Yamaha BW200 and BW200E Big Wheel 200, 1985 to 1988
Yamaha YFM200 Moto-4 200, 1985 to 1989
Yamaha YTM200 Tri-Moto 200, 1983 to 1985
Yamaha YTM200E Yamahauler 200, 1983 to 1985

Replaces
Cylinder 21V-11310-00, 47J-11310-00
Base gasket 5VC-11351-02
Head gasket 1NU-11181-00
Piston 36X-11631-00-A0
Piston pin 58L-11633-00
Ring set 15A-11603-00
Circlips 93450-17044
Valve stem seals 5H0-12119-00

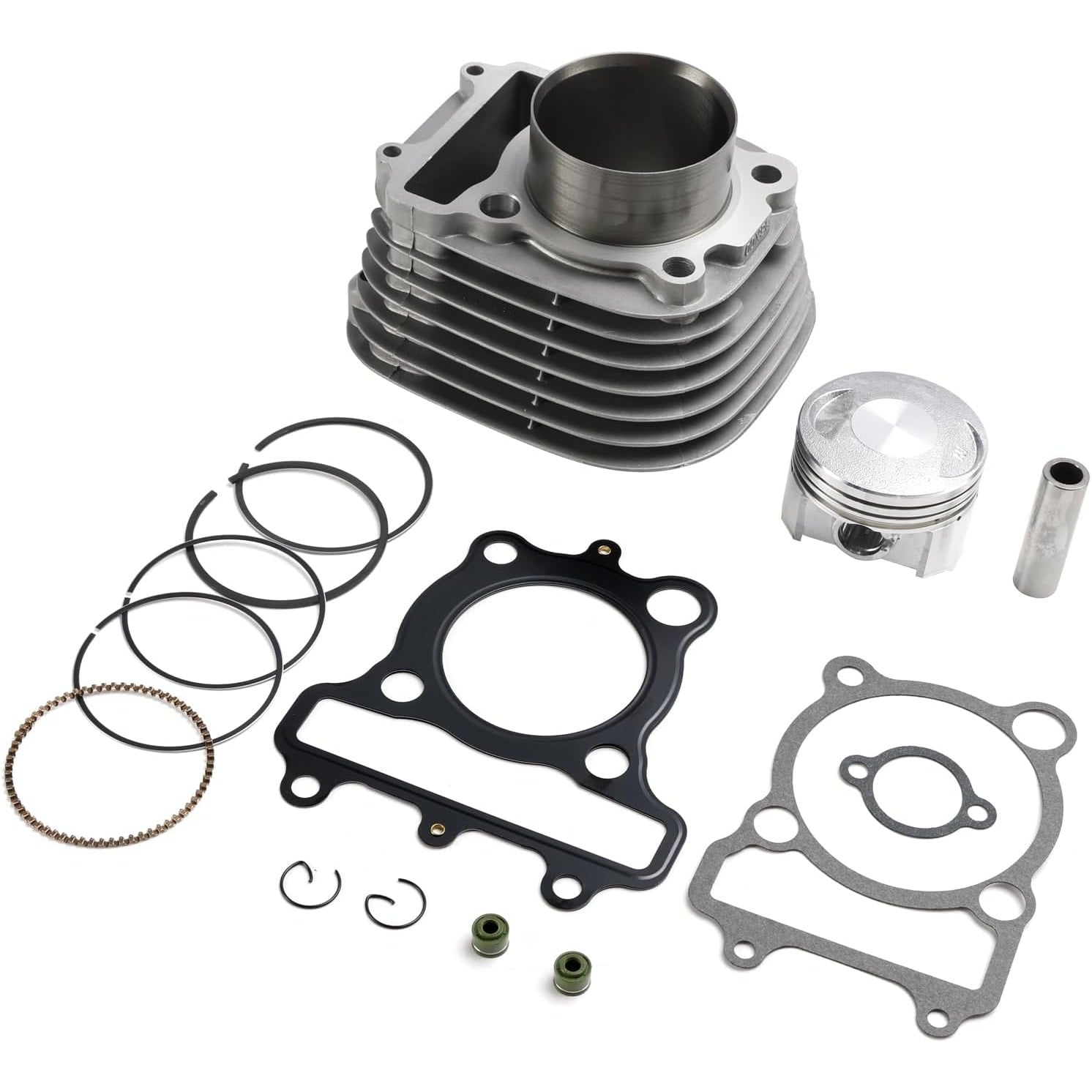

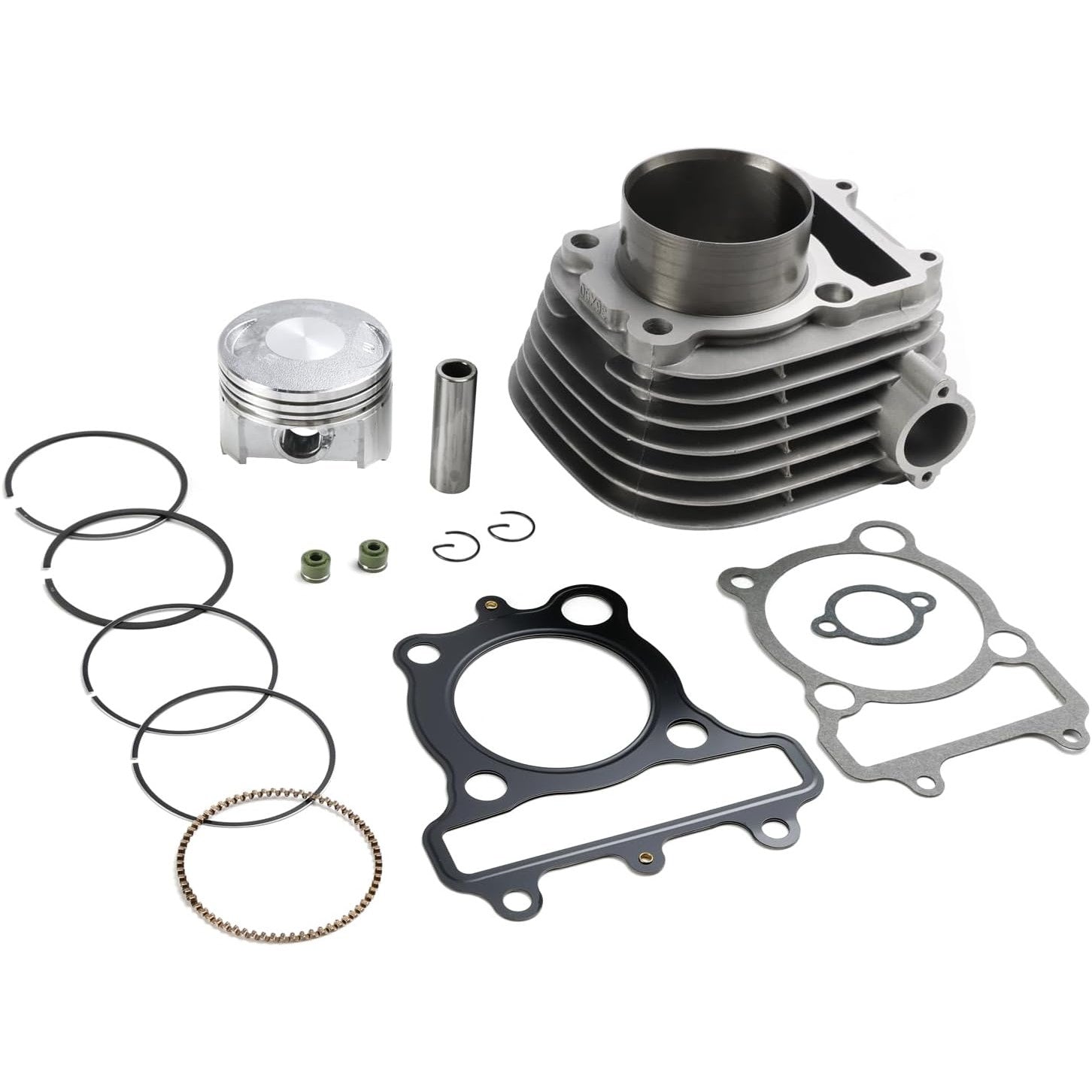

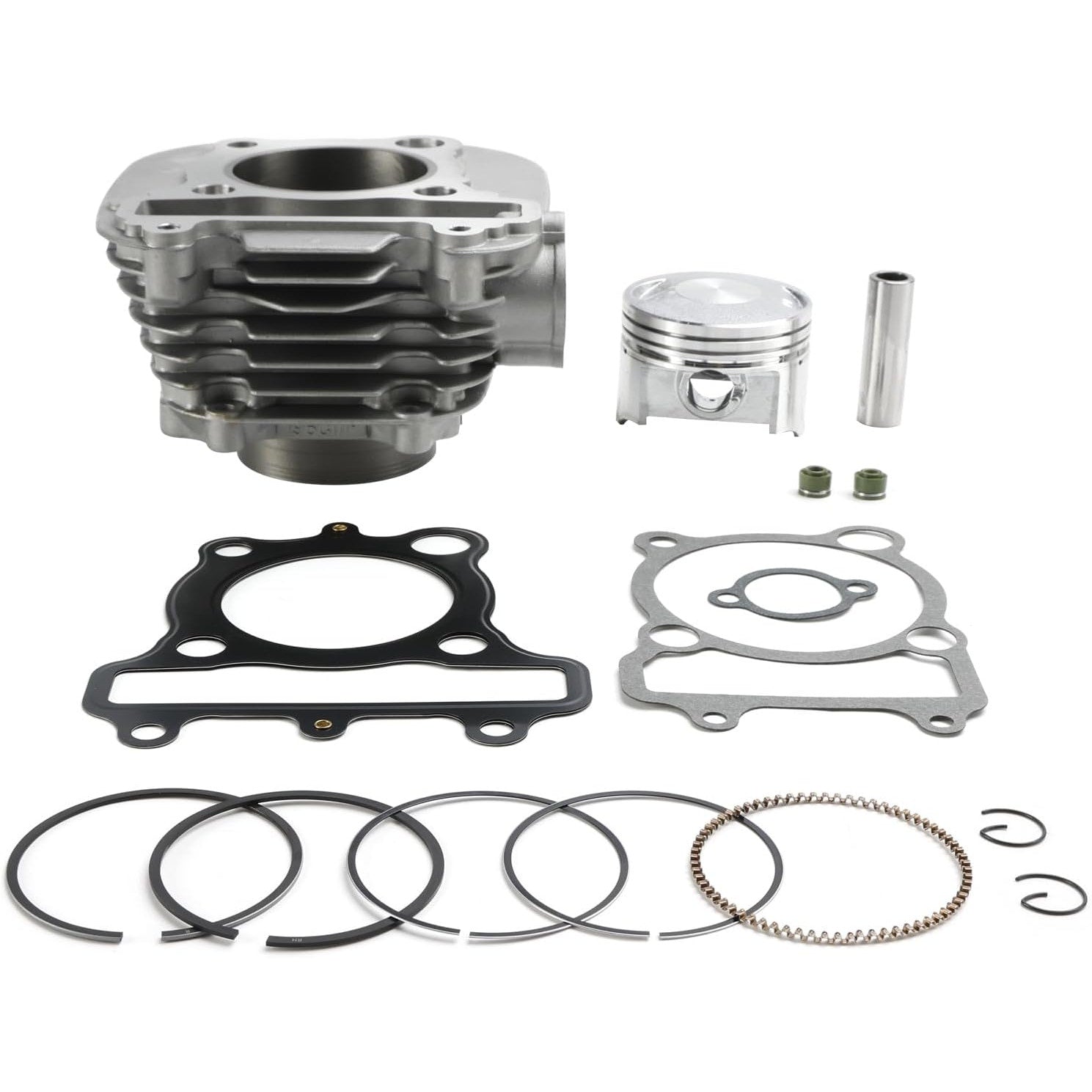

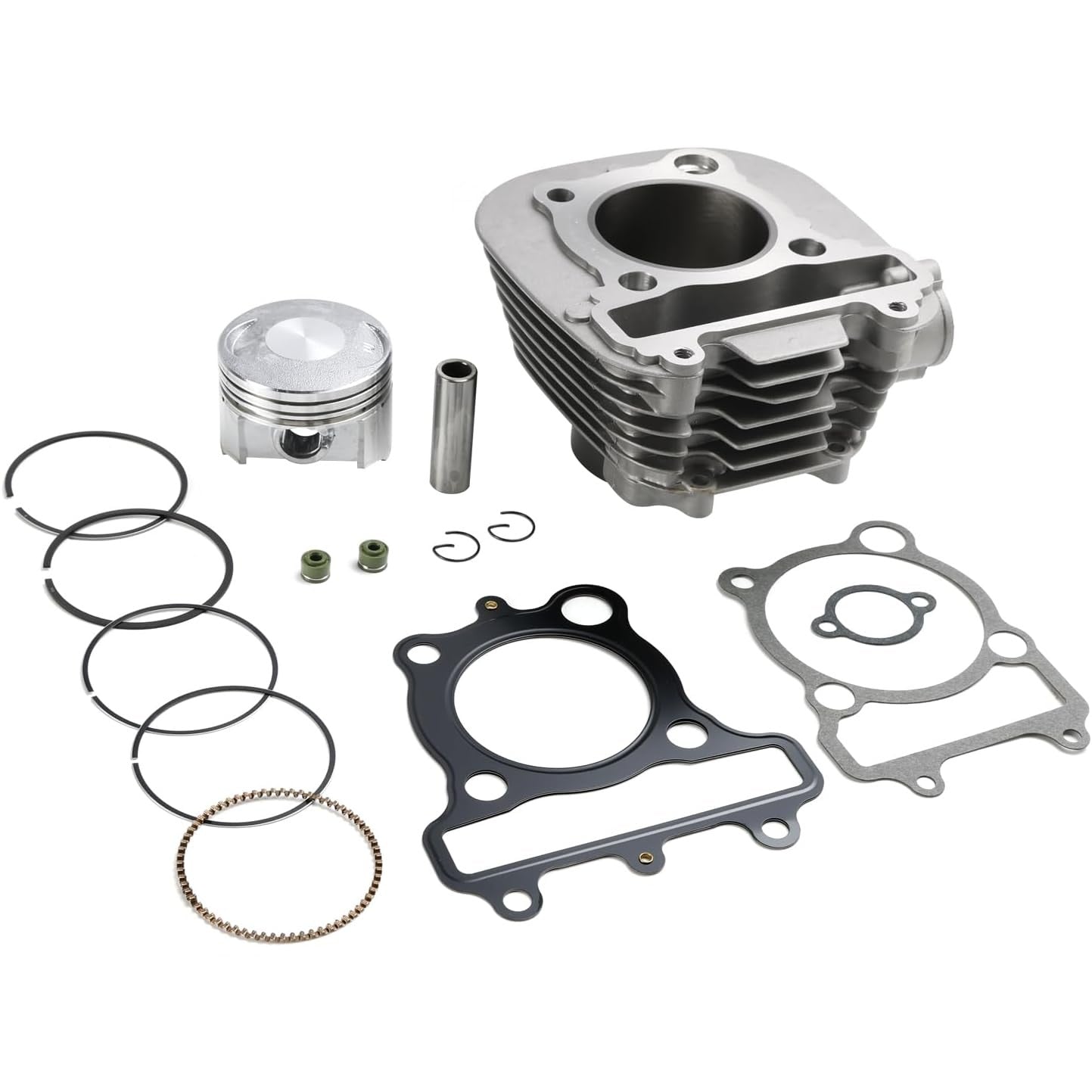

Included: cylinder, piston, ring set, wrist pin, circlips, base gasket, head gasket, exhaust gasket and valve stem seals.

Please read: this cylinder requires the automatic timing chain tensioner, which is not included. If your engine uses the screw in manual tensioner you will need to convert it. The gearbox housing may also need machining. Do not buy if that is beyond your skills. Compare to your old parts before ordering.

ADDITIONAL INFORMATION FOR VERIFICATION:
Brand: Artudatech
Type: Top End Rebuild Kit
Manufacturer Part Number: 21V-11310-00, 47J-11310-00
OE/OEM Part Number: 21V-11310-00, 47J-11310-00
Bore Size: 67mm
Bore Type: Standard Bore
Bore diameter: STD 67mm
Stroke: 55.7mm
Pin diameter: 16mm
Displacement: 196cc
Engine Type: 4-Stroke
Cylinder: 21V-11310-00, 47J-11310-00
Cylinder Base Gasket: 5VC-11351-02
Cylinder Head Gasket: 1NU-11181-00
Piston: 36X-11631-00-A0
Pin, piston: 58L-11633-00
Ring Set, piston: 15A-11603-00
Circlips, piston: 93450-17044
Cylinder Material: High-Grade Cast Aluminum
Piston Material: Forged Aluminum
Items Included: Cylinder, Cylinder Base Gasket, Cylinder Head Gasket, Exhaust Gasket, Piston Rings, Pistons, Valve Stem Seals
Placement on Vehicle: Front
Country of Origin: China
Condition: New
