72 Sq Ft DE Filter Grid Set FS-2006 Hayward Pro-Grid DE7220 PFS3672 FC-9560

Complete 72 sq ft DE filter grid set. New, 8 grids.

These are DE grids, not cartridges. They require diatomaceous earth powder to filter. If your filter does not use DE powder, this is not the right part.

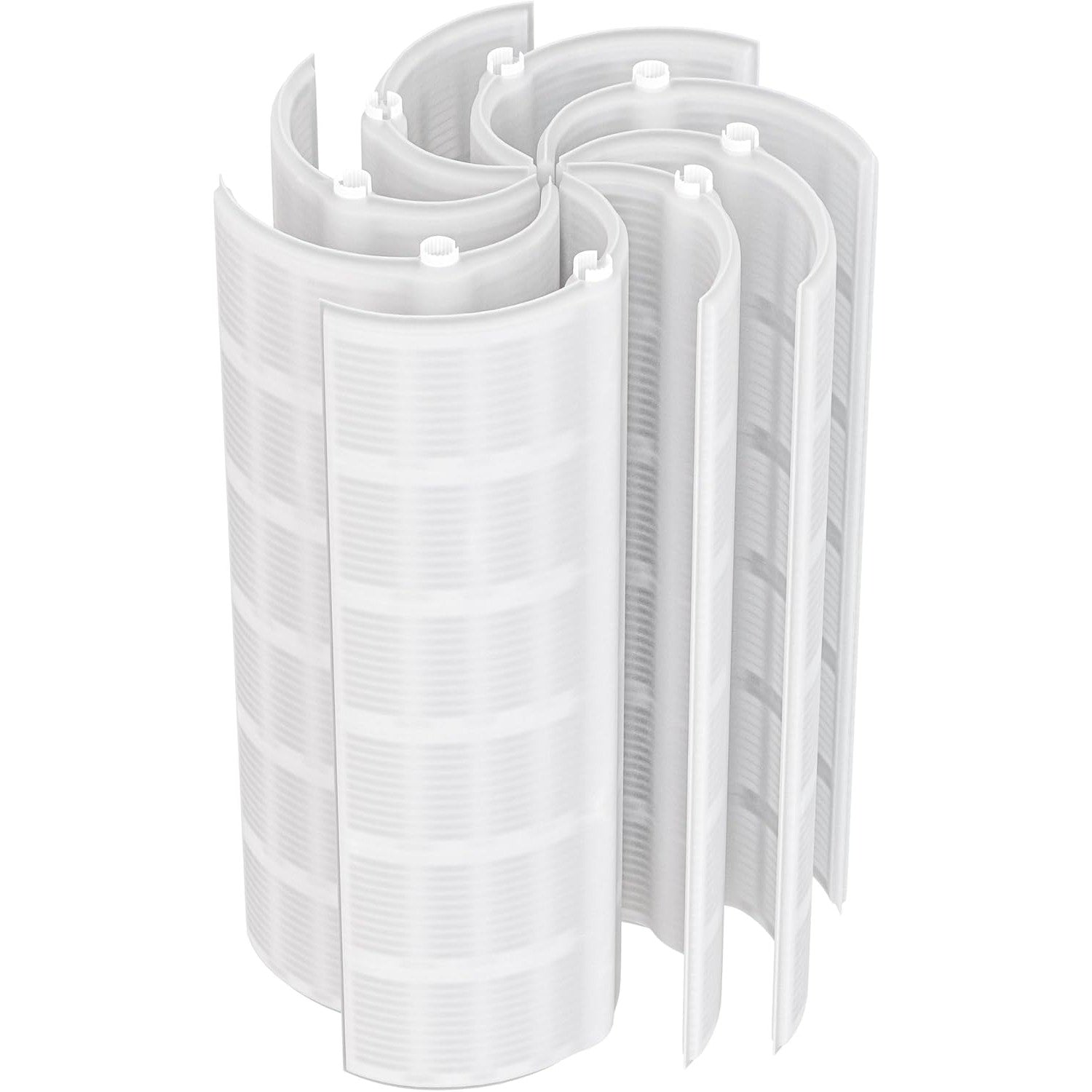

Set includes

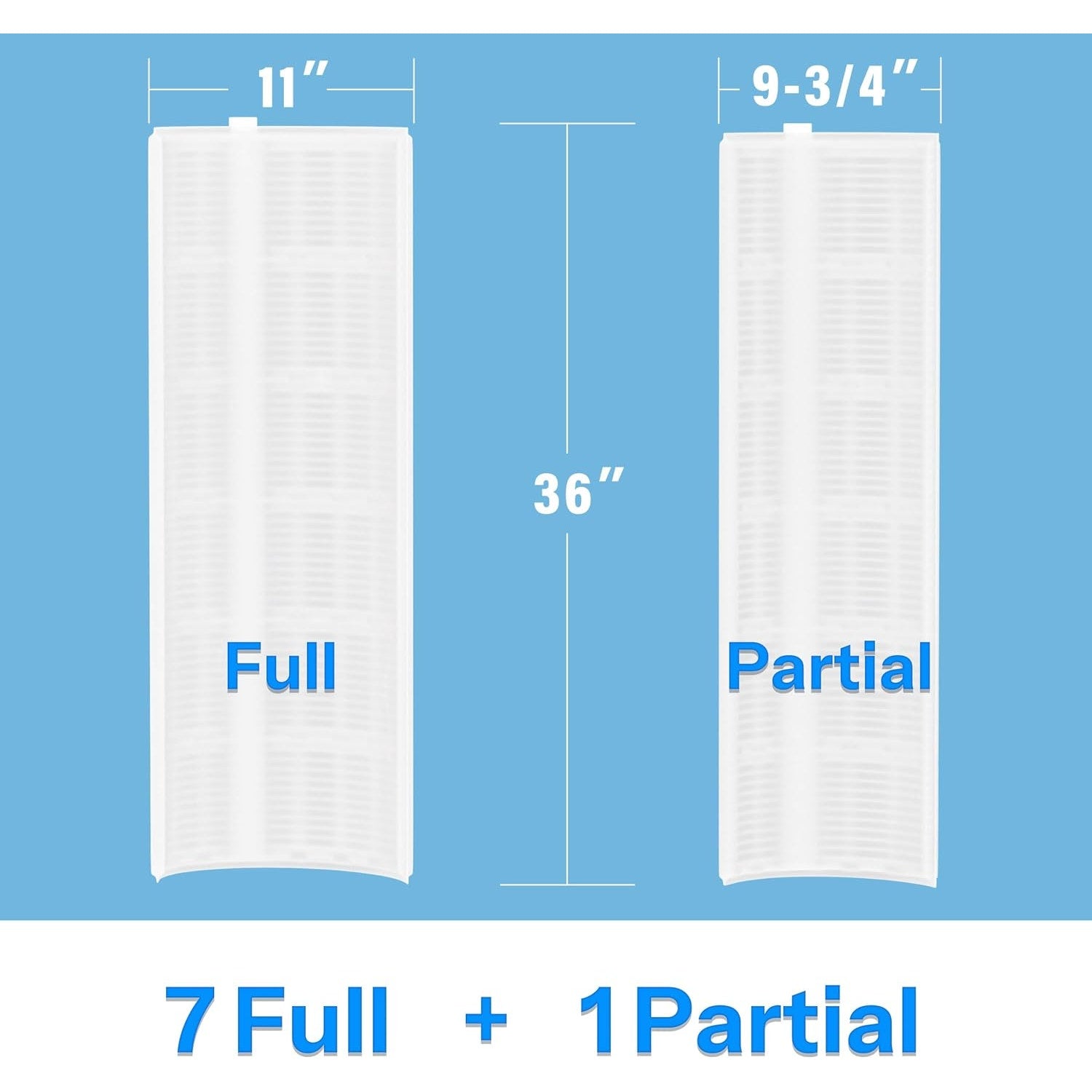

7 full grids, 36 inches long by 11 inches wide
1 partial grid, 36 inches long by 9.75 inches wide

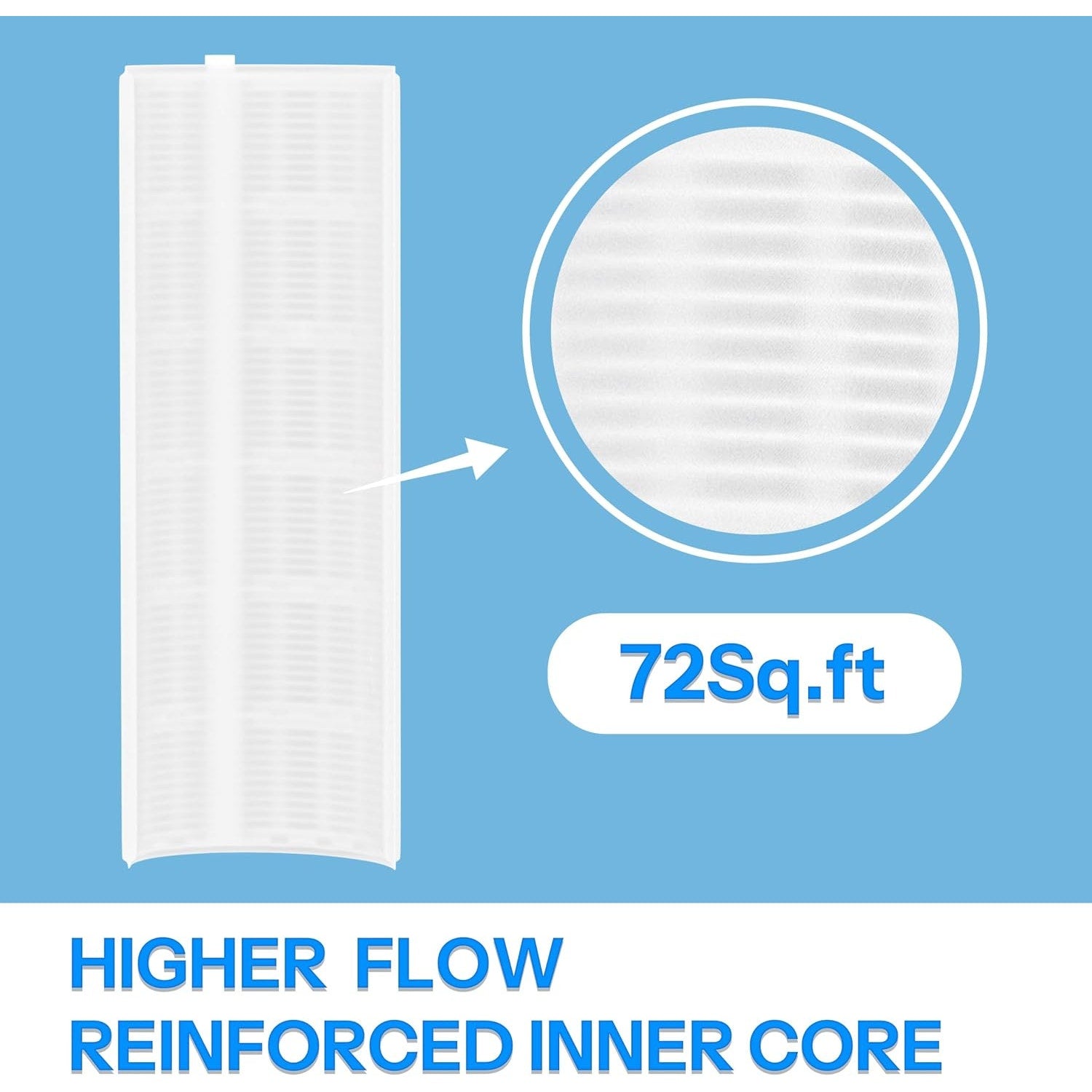

8 grids total, 72 sq ft of filtration area

Fits
Hayward Pro-Grid DE7220
Hayward DEX7200DA and DEX7200DS
Hayward MicroClear DE7200 and MicroClear SS DE7200
PacFab, Waterway, American Products and Universal Pro 72 series 72 sq ft DE filters

Replaces
FS-2006, FG-1006, FG-2006, PFS3672, FC-9560, 59003000

Filters particles down to 2 to 5 microns, which is finer than a sand or cartridge filter can manage. That is why DE gives the clearest water of the three filter types.

Confirm your filter size before ordering. This 72 sq ft set uses 36 inch tall grids. The same grid family is also made in 36 sq ft with 18 inch grids, 48 sq ft with 24 inch grids and 60 sq ft with 30 inch grids. Measure the height of your existing grids.

This set is grids only. It does not include the manifold, retainer rod or air bleed assembly. Reuse your existing hardware.

Replace all 8 grids as a set. A single torn grid lets DE powder back into the pool and puts uneven load on the rest.

ADDITIONAL INFORMATION FOR VERIFICATION:
Brand: Cryspool
Type: DE Filter Grid Set
Filter Type: Diatomaceous Earth (DE)
Filter Area: 72 sq ft
Number of Grids: 8
Configuration: 7 Full Grids Plus 1 Partial Grid
Full Grid Dimensions: 36 in L x 11 in W
Partial Grid Dimensions: 36 in L x 9.75 in W

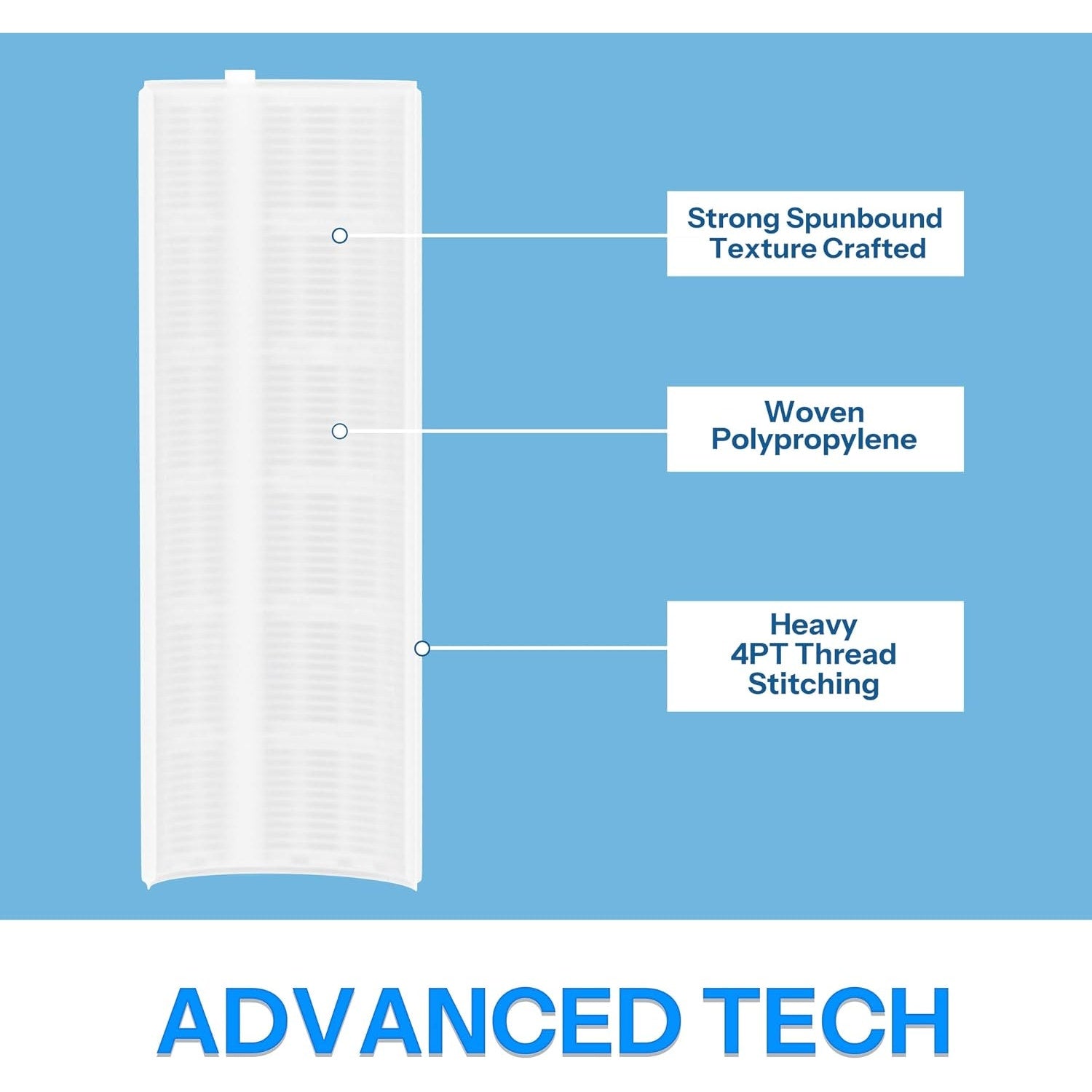

Material: PET Resin
Interchange Part Number: FS-2006, FG-1006, FG-2006, PFS3672, FC-9560, 59003000
Compatible Filter Model: Hayward Pro-Grid DE7220, DEX7200DA, DEX7200DS, MicroClear DE7200
Compatible Brand: Hayward, PacFab, Waterway, American Products, Universal
Pool Type: In-Ground
Condition: New
