AC Compressor Clutch Chrysler 300 Dodge Charger Challenger 3.6L 14-23 68160395
AC Compressor Clutch Chrysler 300 Dodge Charger Challenger 3.6L 14-23 68160395
Regular price
$149.99 USD
Regular price
$799.99 USD
Sale price
$149.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

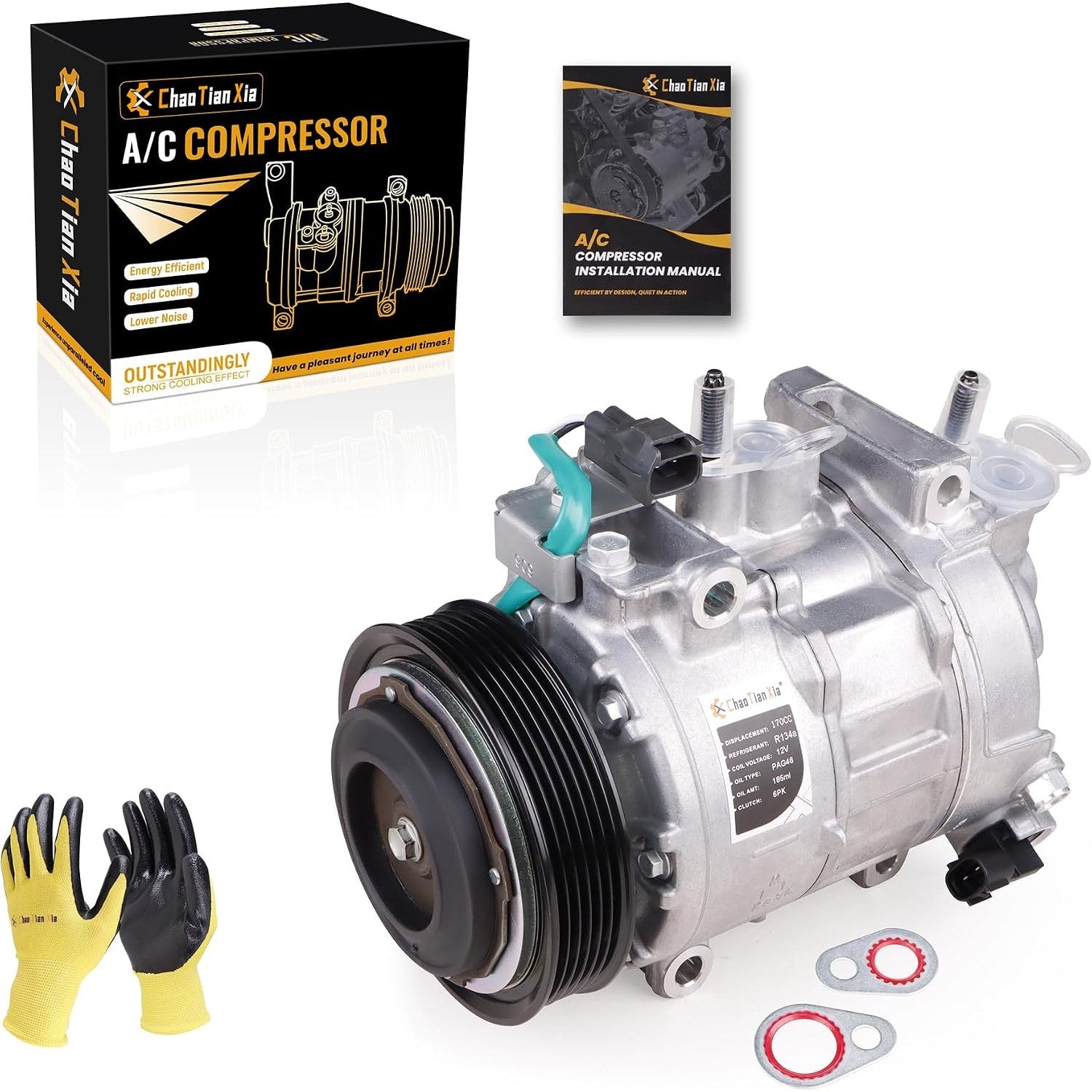

New A/C compressor with clutch for the 3.6L Pentastar V6. Ships from Texas.

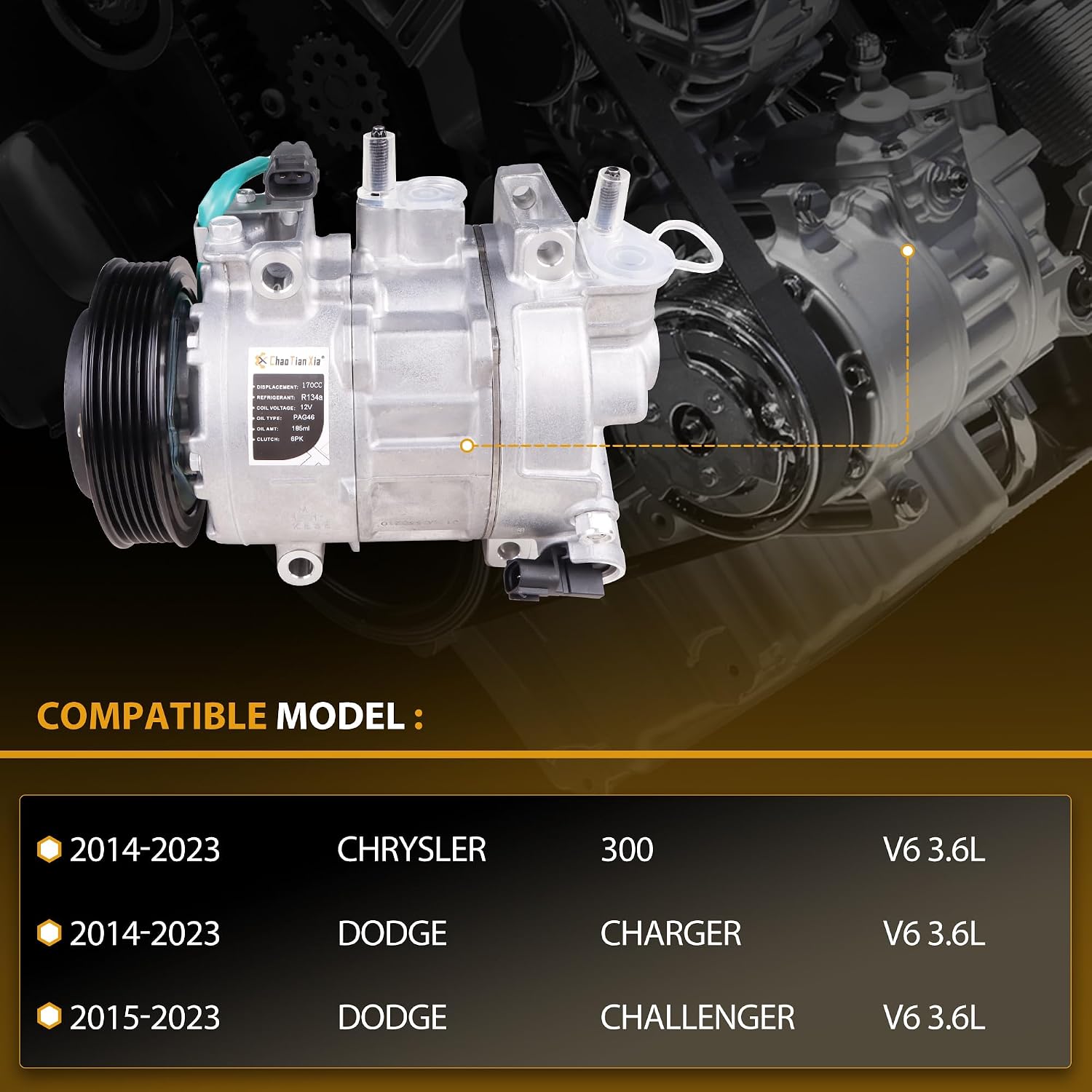

Fitment
Chrysler 300 3.6L, 2014 to 2023
Dodge Charger 3.6L, 2014 to 2023
Dodge Challenger 3.6L, 2015 to 2023
2014 Chrysler 300 note: for Canadian built cars this fits the C Luxury, C and S models only. It does not fit the C Lujo or BASE model. Every other year in the range is unaffected.
Specifications
Compressor type: 7SBH17C
Voltage: 12V

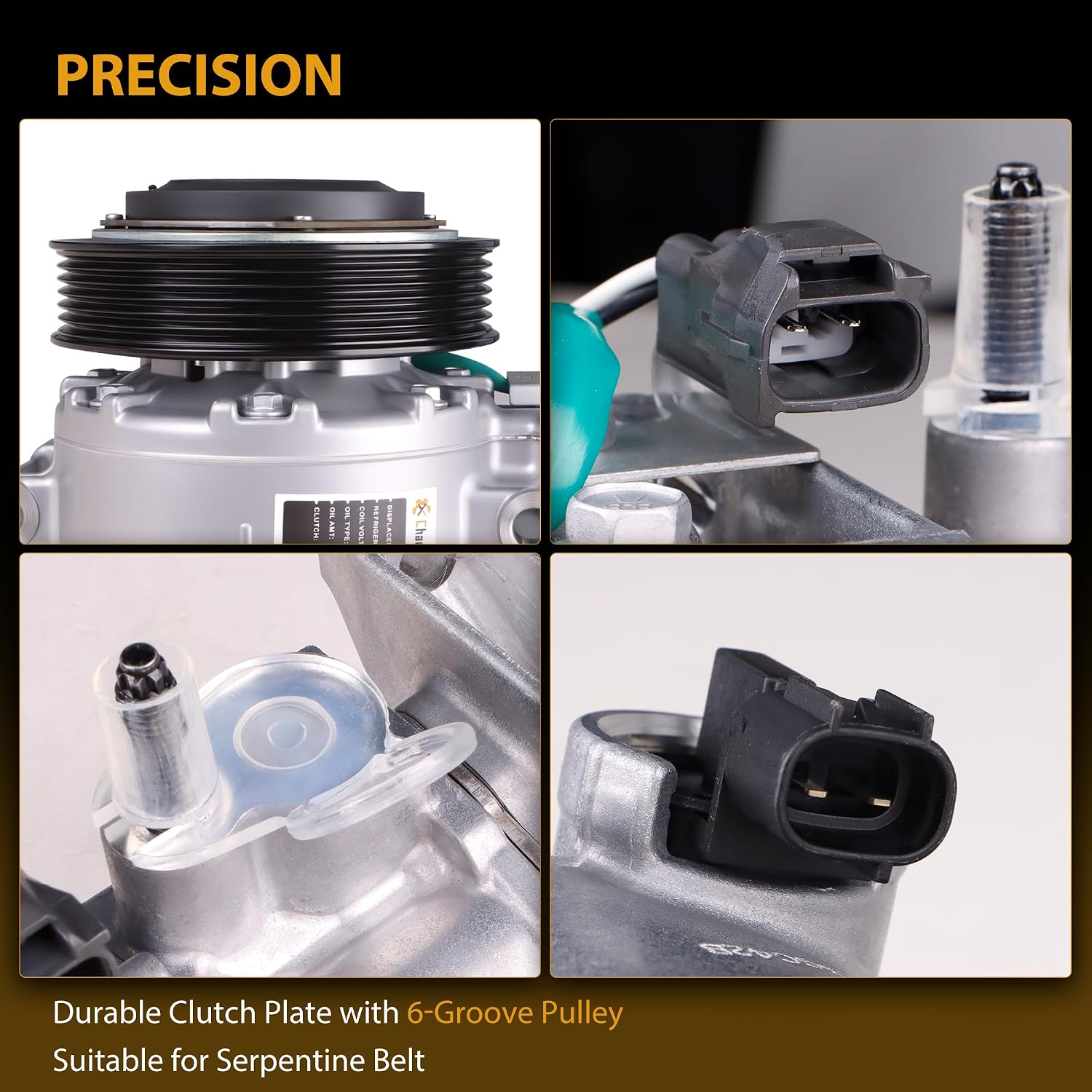

Pulley grooves: 6
Pulley diameter: 120mm
Clutch diameter: 119mm
Discharge port: 12mm
Suction port: 18mm
Integral diode and control valve
Clutch included, no separate clutch needed
Prefilled with refrigerant oil, add refrigerant after install

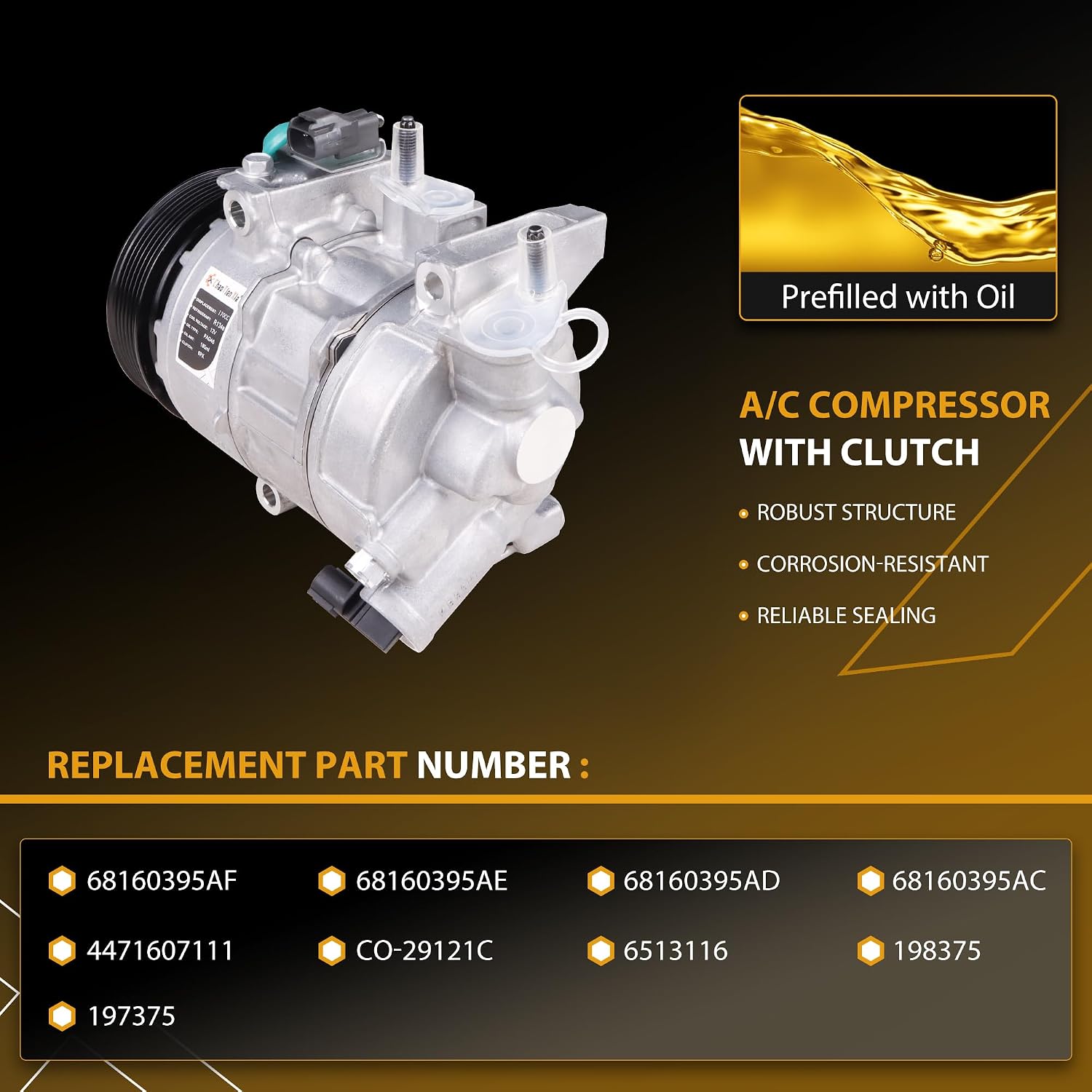

Replaces
68160395AC, 68160395AD, 68160395AE, 68160395AF, 68160395AG, P68160395AC
4471607111, 447160-7111, 16003815-101, 16003815-102, 16003815-103
CO-29121C, CO29121Z, 197375, 198375, 6513116, 7513116, 141114NC, 273613
Before installing, please read
Confirm which refrigerant your car uses. This year range spans the change from R134a to R1234yf. The label under the hood will tell you.

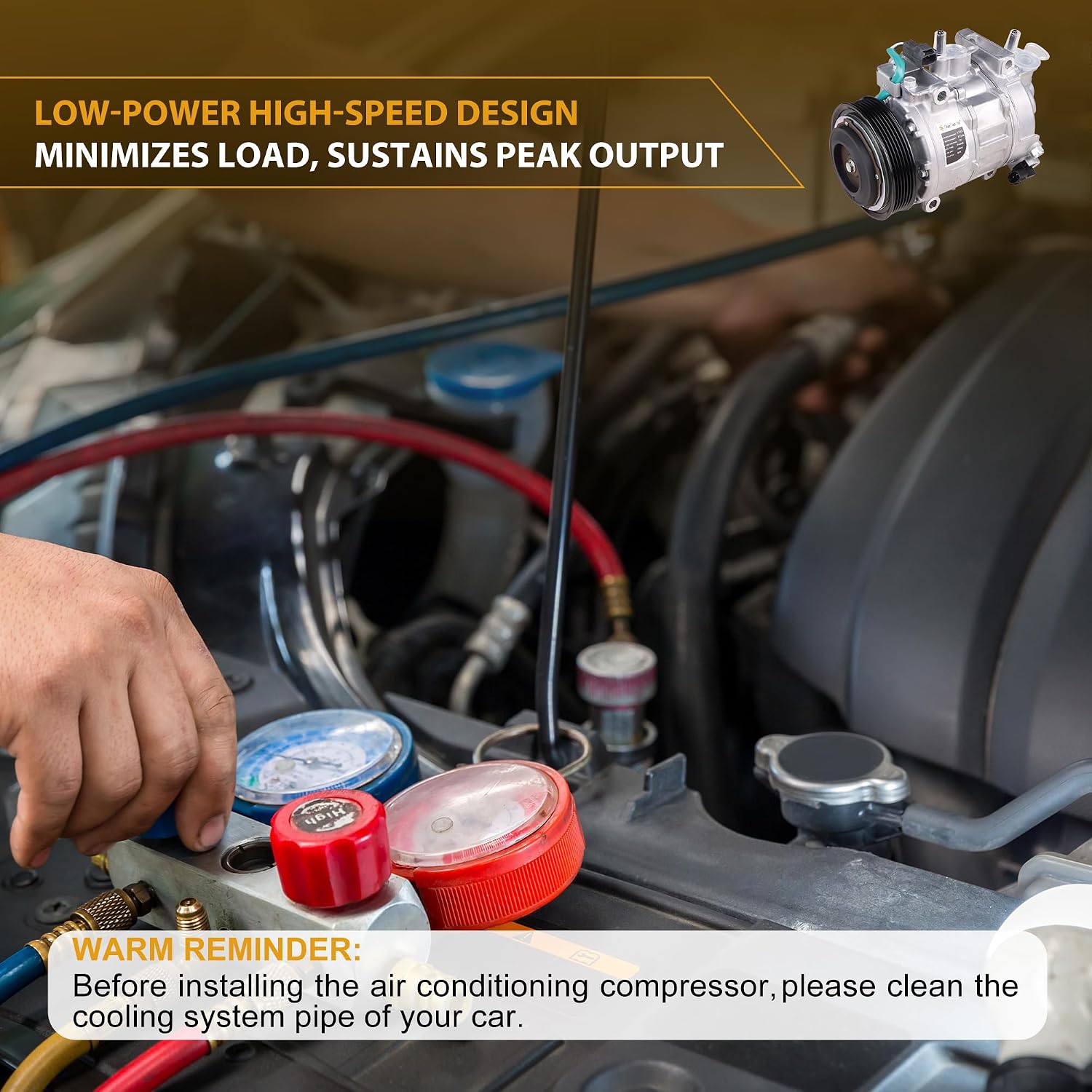

Flush the system and replace the receiver drier or accumulator and the expansion valve or orifice tube. If the old compressor failed internally, metal debris is still in the lines, and it will destroy a new compressor quickly. This is the most common reason a replacement compressor fails early.
Evacuate the system properly and charge to the factory specification.
ADDITIONAL INFORMATION FOR VERIFICATION:
Type: A/C Compressor with Clutch
Compressor Type: 7SBH17C
Voltage: 12 V
Pulley Grooves: 6
Pulley Diameter: 120 mm
Clutch Diameter: 119 mm
Clutch Included: Yes
Discharge Port: 12 mm
Suction Port: 18 mm
Diode: Integral
Control Valve: Yes
Material: Aluminum Alloy
OE/OEM Part Number: 68160395AC, 68160395AD, 68160395AE, 68160395AF, 68160395AG, P68160395AC
Interchange Part Number: 4471607111, 447160-7111, CO-29121C, CO29121Z, 197375, 198375, 6513116, 7513116, 141114NC, 273613, 16003815-101, 16003815-102, 16003815-103
Compatible Vehicle Make: Chrysler, Dodge
Compatible Vehicle Model: 300, Charger, Challenger
Engine: 3.6L Pentastar V6
Placement on Vehicle: Front
Country of Origin: China
Condition: New
Fitment
Chrysler 300 3.6L, 2014 to 2023
Dodge Charger 3.6L, 2014 to 2023
Dodge Challenger 3.6L, 2015 to 2023
2014 Chrysler 300 note: for Canadian built cars this fits the C Luxury, C and S models only. It does not fit the C Lujo or BASE model. Every other year in the range is unaffected.
Specifications
Compressor type: 7SBH17C
Voltage: 12V
Pulley grooves: 6
Pulley diameter: 120mm
Clutch diameter: 119mm
Discharge port: 12mm
Suction port: 18mm
Integral diode and control valve
Clutch included, no separate clutch needed
Prefilled with refrigerant oil, add refrigerant after install
Replaces
68160395AC, 68160395AD, 68160395AE, 68160395AF, 68160395AG, P68160395AC
4471607111, 447160-7111, 16003815-101, 16003815-102, 16003815-103
CO-29121C, CO29121Z, 197375, 198375, 6513116, 7513116, 141114NC, 273613
Before installing, please read
Confirm which refrigerant your car uses. This year range spans the change from R134a to R1234yf. The label under the hood will tell you.
Flush the system and replace the receiver drier or accumulator and the expansion valve or orifice tube. If the old compressor failed internally, metal debris is still in the lines, and it will destroy a new compressor quickly. This is the most common reason a replacement compressor fails early.
Evacuate the system properly and charge to the factory specification.
ADDITIONAL INFORMATION FOR VERIFICATION:
Type: A/C Compressor with Clutch
Compressor Type: 7SBH17C
Voltage: 12 V
Pulley Grooves: 6
Pulley Diameter: 120 mm
Clutch Diameter: 119 mm
Clutch Included: Yes
Discharge Port: 12 mm
Suction Port: 18 mm
Diode: Integral
Control Valve: Yes
Material: Aluminum Alloy
OE/OEM Part Number: 68160395AC, 68160395AD, 68160395AE, 68160395AF, 68160395AG, P68160395AC
Interchange Part Number: 4471607111, 447160-7111, CO-29121C, CO29121Z, 197375, 198375, 6513116, 7513116, 141114NC, 273613, 16003815-101, 16003815-102, 16003815-103
Compatible Vehicle Make: Chrysler, Dodge
Compatible Vehicle Model: 300, Charger, Challenger
Engine: 3.6L Pentastar V6
Placement on Vehicle: Front
Country of Origin: China
Condition: New
