Prefilled with the correct amount of PAG 46 oil. Do not add more oil during installation. Overfilling causes damage.
Before installing, please read
Flush the system and replace the receiver drier and the expansion valve or orifice tube. If the old compressor failed internally, metal debris is still sitting in the lines and will destroy a new compressor quickly. This is the single most common reason a replacement compressor fails early.

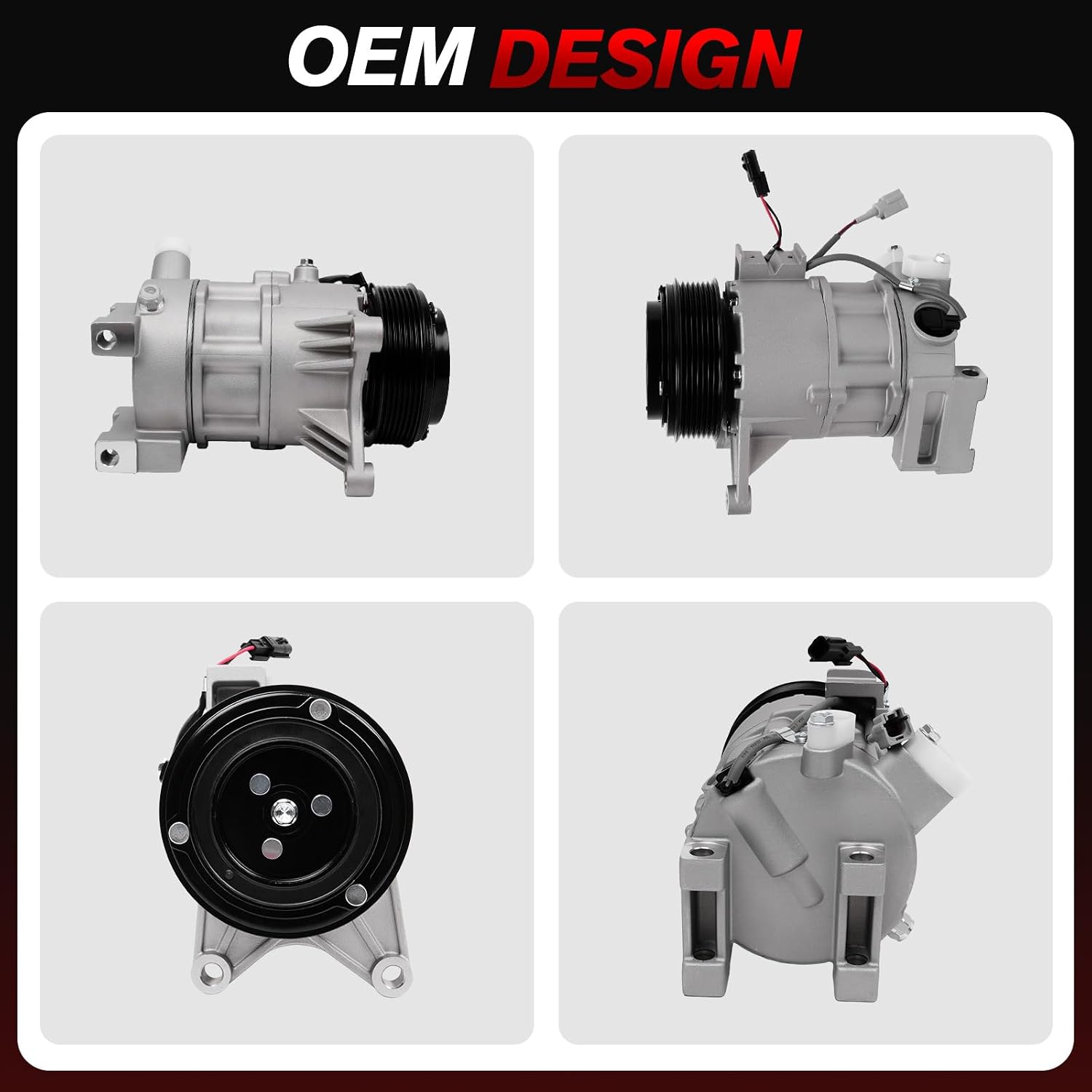

Compare the electrical connector on your old compressor to the photos before installing.
Evacuate the system properly and charge to the factory specification.
ADDITIONAL INFORMATION FOR VERIFICIATION: Brand: Autodevil Type: A/C Compressor with Clutch Voltage: 12 V Pulley Grooves: 7 Pulley Diameter: 115 mm Clutch Included: Yes Control Valve: ECV Discharge Port: 15.5 mm Suction Port: 21 mm Refrigerant: R134a Oil Type: PAG 46 Oil Prefilled: Yes Material: Aluminum OE/OEM Part Number: 92600-5AA0A, 926005AA0A, 92600-9UA0A, 926009UA0A Interchange Part Number: 198667, 197667, 7513209, 5513209, 6512911, 14-1255C, 3023911, CO-29254C, 141255, 141255C, 141255NC, 2020827, 276382, T198667, 648495, A76382 Compatible Vehicle Make: Nissan Compatible Vehicle Model: Maxima, Murano Engine: 3.5L V6 Placement on Vehicle: Front Country of Origin: China Condition: New
