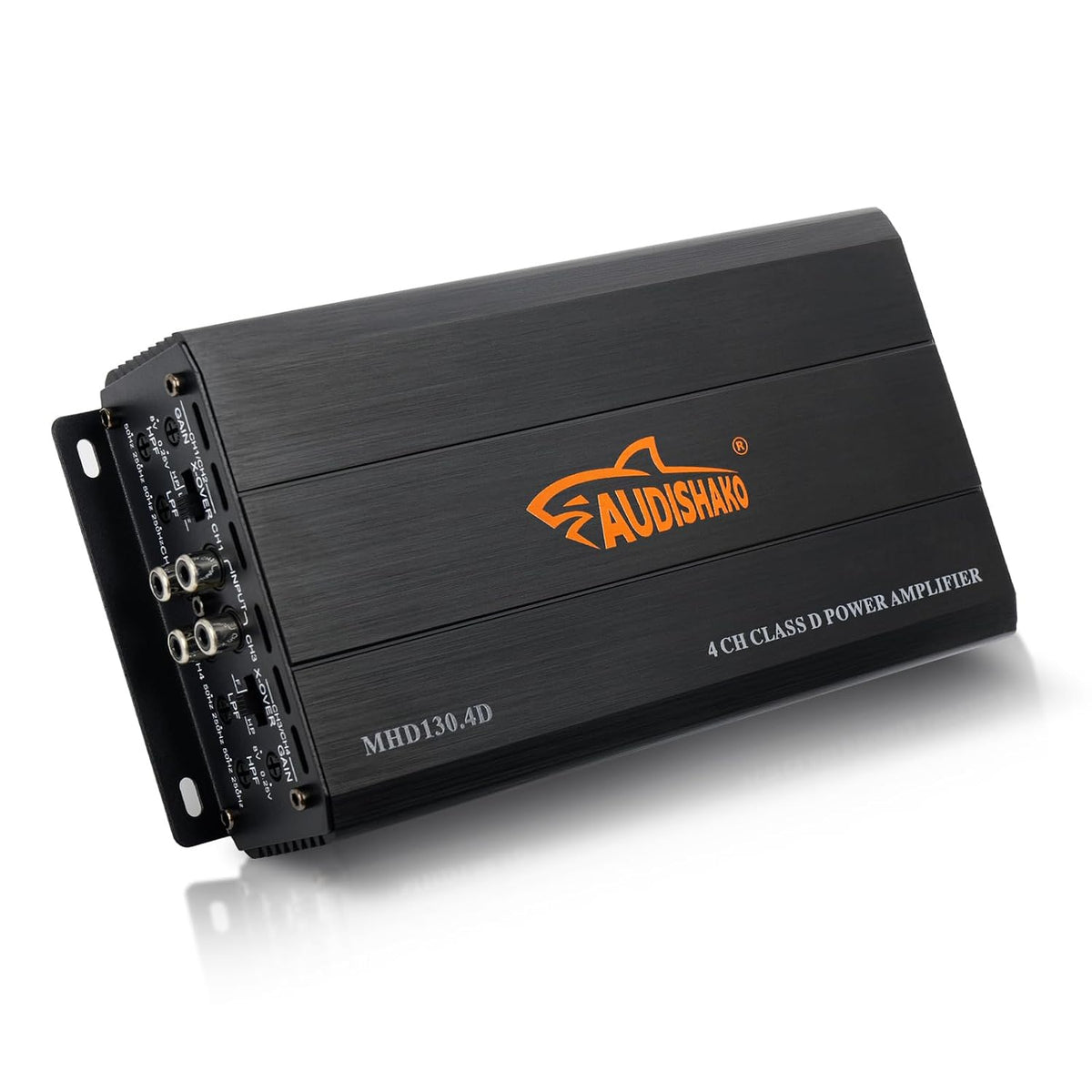

AUDISHAKO Car Audio Amplifier MHD130.4D 2400W 4-Channel Class D Full Range RCA

Condition: New

Its Class D design combines flexible crossover tuning with up to 95% efficiency.

Features

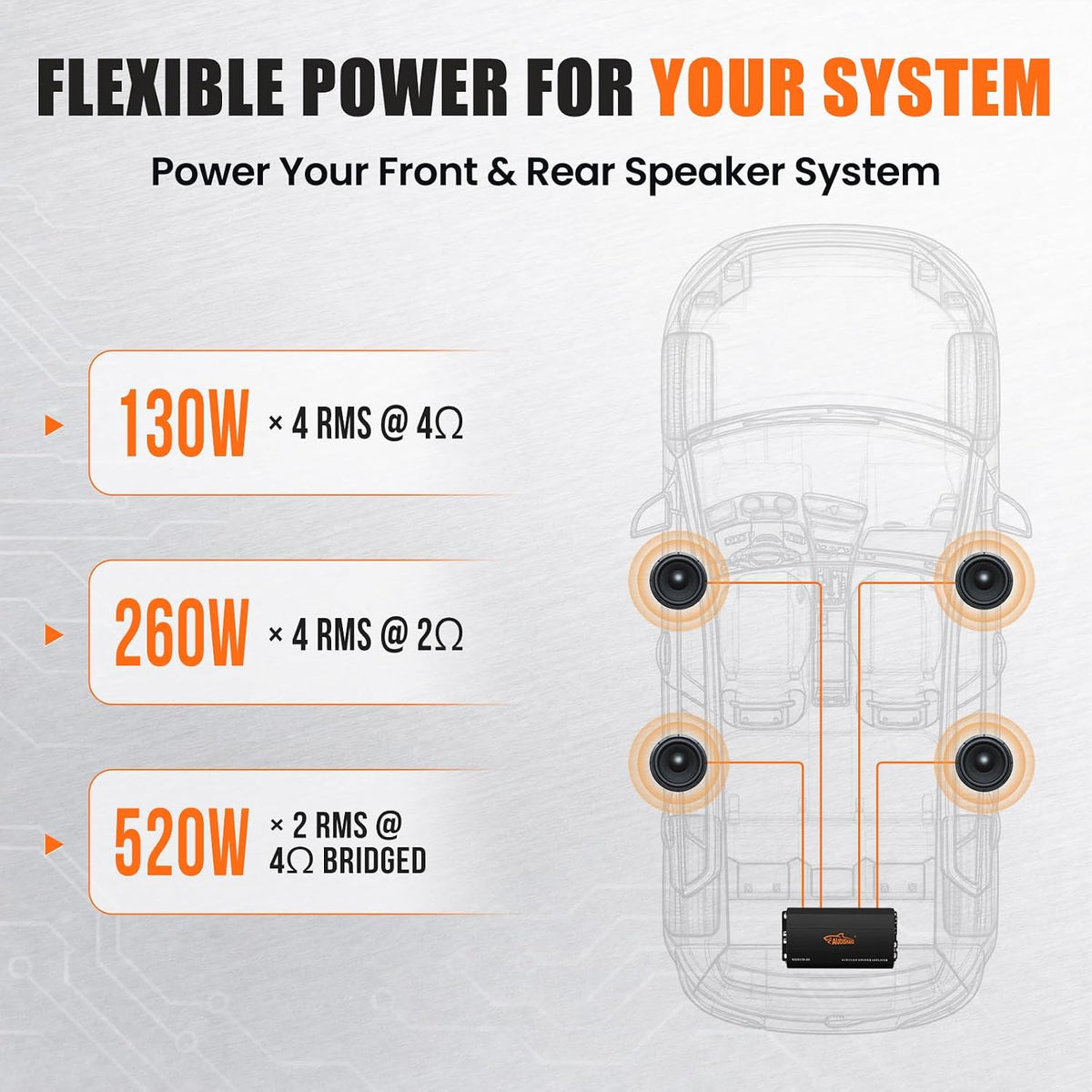

4-channel output delivers 130W x 4 RMS at 4Ω.
4-channel output delivers 260W x 4 RMS at 2Ω.
Bridge each channel pair for 520W x 2 RMS at 4Ω.
Infineon IRS2093M helps reduce background noise and distortion.
96dB SNR helps keep music details defined as volume increases.
0.05% THD supports cleaner sound.

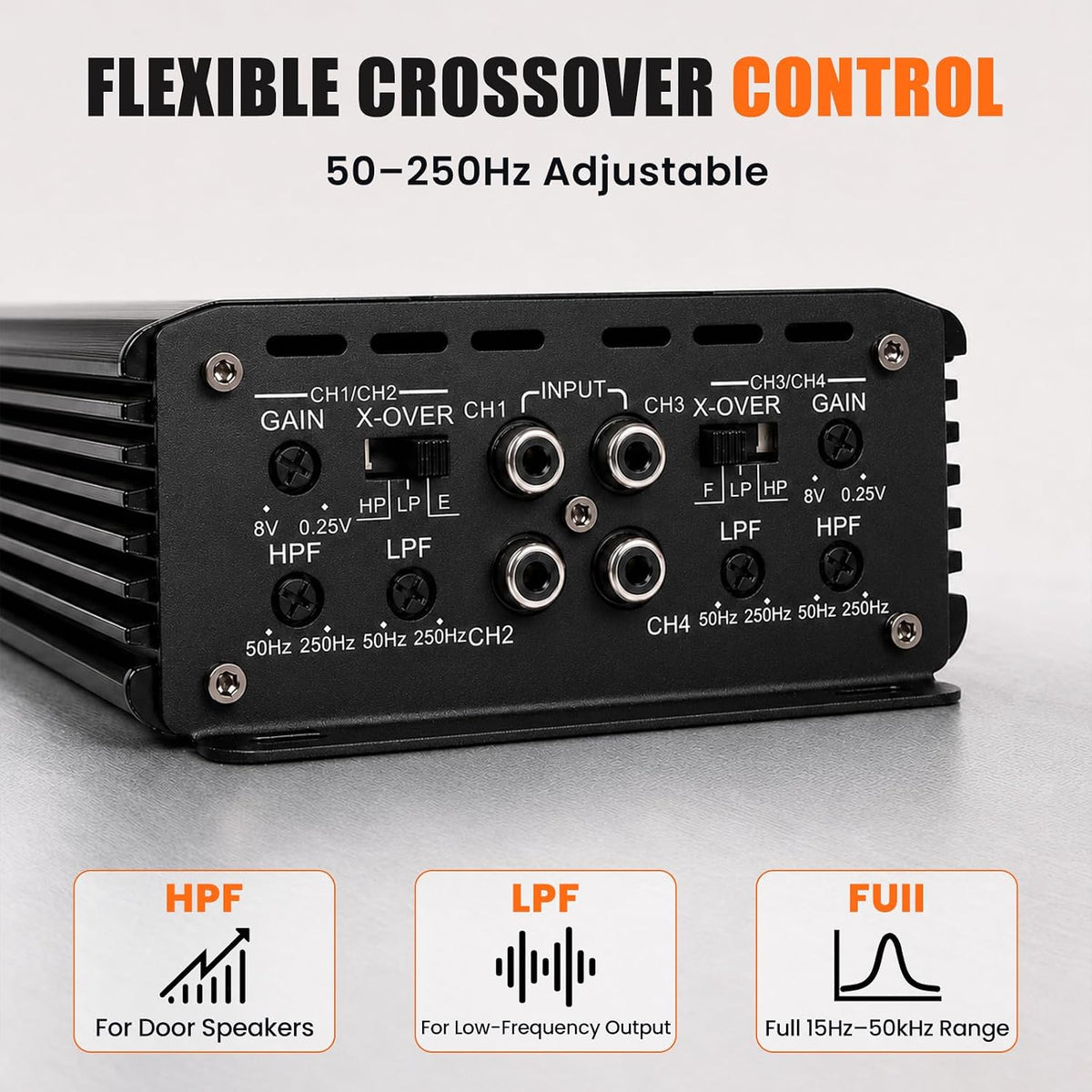

Select HP, LP, or FULL mode for each channel pair.
Adjustable 50-250Hz crossover lets you tailor speaker output.
FULL mode provides the complete 15Hz-50kHz range.

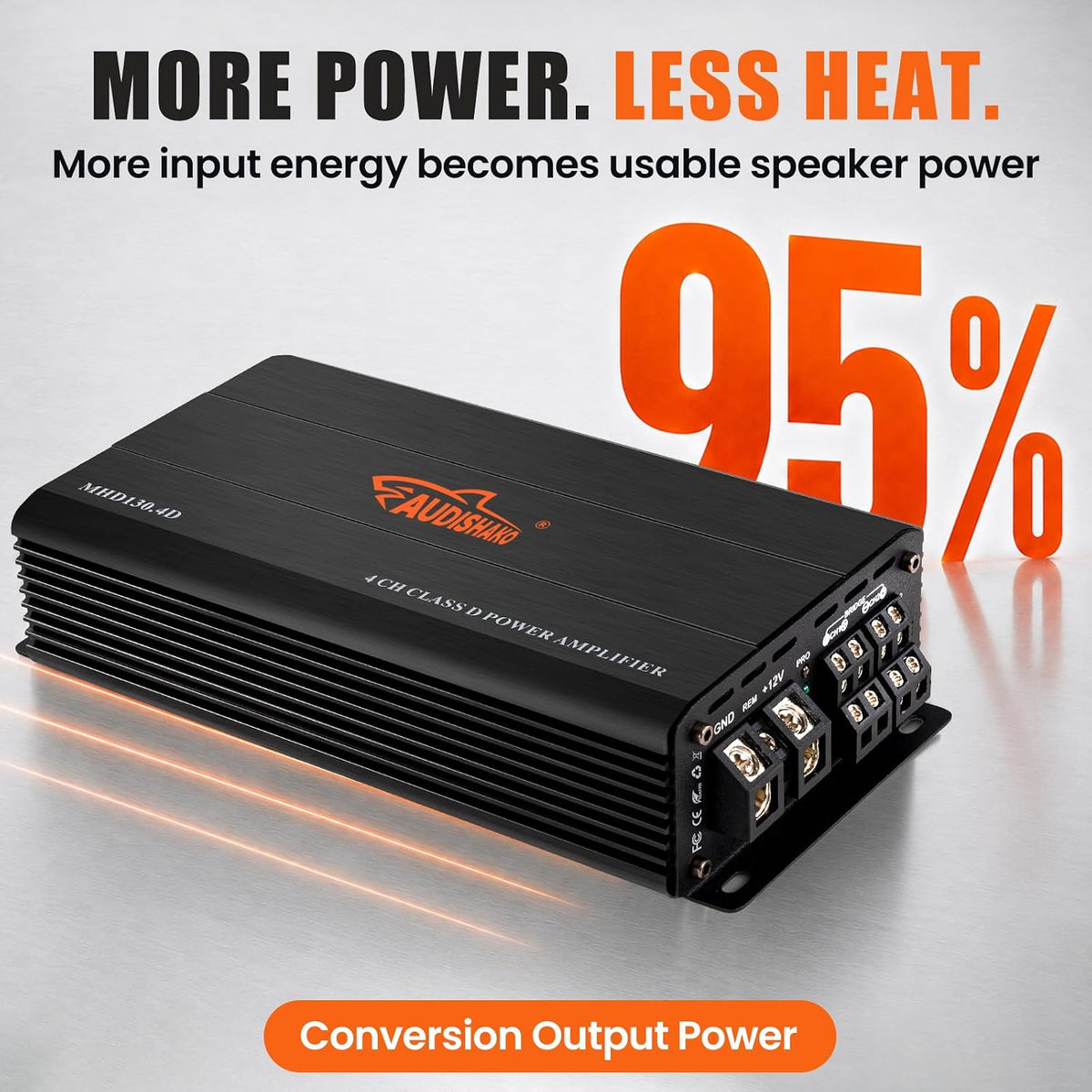

Up to 95% Class D efficiency reduces energy lost as heat.
Aluminum chassis supports heat dissipation during long listening sessions and higher-volume playback.
0.25-8V input sensitivity helps match different source voltages.
Compact chassis makes installation under seats or in trunks easier.
Thermal protection helps safeguard the amplifier.
Short-circuit protection helps safeguard the amplifier.
Power LED indicator shows operating status.
Protection LED indicator shows operating status.
MOSFET power supply.

Specifications

• Brand: AUDISHAKO
• Model: MHD130.4D
• Manufacturer: AUDISHAKO
• Amplifier design: 4-Channel Class D
• Maximum power: 2400W
• RMS output at 4Ω: 130W x 4 RMS
• RMS output at 2Ω: 260W x 4 RMS
• Bridged output at 4Ω: 520W x 2 RMS
• Impedance stability: 2/4 Ohm Stable
• Frequency range: 15Hz-50kHz
• Input sensitivity: 0.25-8V
• Crossover modes: HP, LP, FULL
• Crossover frequency: 50Hz-250Hz(12dB/oc)
• Audio chipset: Infineon IRS2093M
• THD: 0.05%
• Signal-to-noise ratio: 96dB
• Inputs: RCA
• Chassis material: Aluminum
• Dimensions L x W x H: 8.66 x 4.33 x 1.97 inches
• Color: Black
• Maximum supply voltage: 12 volts
• Mounting type: Surface Mount
• Voltage: 12 volts_of_direct_current

Condition: New

Details

• Brand: Audishako
• Color: Black
• Country of Origin: China
• Manufacturer Part Number: MHD130.4D
