ICM Controls 3VMS 3-Phase Voltage Monitor Surge Protector HVAC 208/240V 40A
ICM Controls 3VMS 3-Phase Voltage Monitor Surge Protector HVAC 208/240V 40A
Regular price
$999.99 USD
Regular price
$1,121.00 USD
Sale price
$999.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
ICM Controls 3VMS three phase line voltage monitor with surge protection. New in box.
Brand: ICM Controls
Model: 3VMS
Voltage: 208/240 VAC, three phase
Contactor: 40 amp, separate, fully disconnects from the service
Enclosure: NEMA 4X
Display: backlit LCD with large fault history log
Programming: field programmable
Construction: modular with field replaceable components
Wiring: all components pre-wired for 208/240 volts
Warranty: limited lifetime product warranty

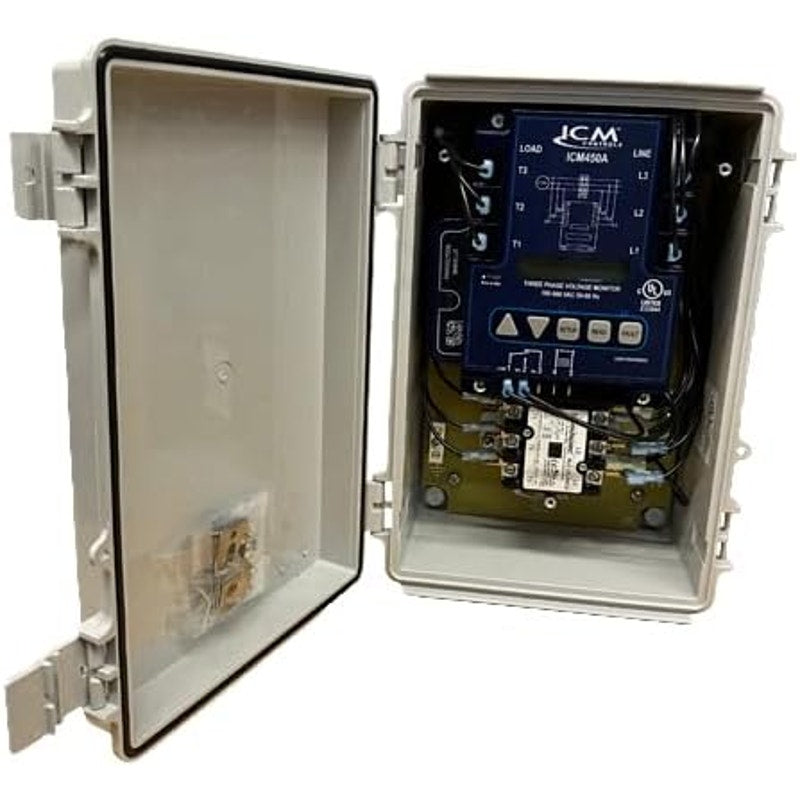

What it combines
ICM450A programmable three phase line voltage monitor, UL file E53944
ICM530 Type 1 and Type 2 three phase surge protective device, UL file E347279
Protects against
Over voltage
Under voltage
Phase loss
Phase reversal
Phase unbalance
Rapid short cycling
Surge events up to 150 kA using TMOV technology
The two halves cover different failure modes. The surge side absorbs transients from lightning and utility switching, with thermal protection that safely disables the surge elements if a hit exceeds their limits. The monitor side watches for the slower problems that quietly destroy compressors and ECM motors, and drops the contactor before damage occurs. The fault history tells you what actually happened rather than leaving you guessing.
Model note: this is the base 3VMS with a 40 amp contactor for 208/240 VAC. ICM also makes the 3VMS-60-208 with a 60 amp contactor and the 3VMS-60-480 for 480 VAC. Confirm your service voltage and required contactor rating before ordering.
Installation: three phase line voltage equipment. Installation by a licensed electrician or qualified HVAC/R technician is required.
ADDITIONAL INFORMATION FOR VERIFICATION:
Brand: ICM Controls
Model: 3VMS
MPN: 3VMS
Type: Line Voltage Monitor and Surge Protective Device
Phase: Three Phase
Voltage: 208/240 VAC
Contactor Rating: 40 A
Surge Rating: Up to 150 kA
Surge Technology: TMOV
SPD Type: Type 1 and Type 2
Enclosure Rating: NEMA 4X
Display: Backlit LCD with Fault History
Programmable: Yes
Protection: Over Voltage, Under Voltage, Phase Loss, Phase Reversal, Phase Unbalance, Short Cycling
Application: HVAC/R, Commercial, Residential Three Phase
Certification: UL Listed
Warranty: Limited Lifetime
Condition: New
Brand: ICM Controls
Model: 3VMS
Voltage: 208/240 VAC, three phase
Contactor: 40 amp, separate, fully disconnects from the service
Enclosure: NEMA 4X
Display: backlit LCD with large fault history log
Programming: field programmable
Construction: modular with field replaceable components
Wiring: all components pre-wired for 208/240 volts
Warranty: limited lifetime product warranty
What it combines
ICM450A programmable three phase line voltage monitor, UL file E53944
ICM530 Type 1 and Type 2 three phase surge protective device, UL file E347279
Protects against
Over voltage
Under voltage
Phase loss
Phase reversal
Phase unbalance
Rapid short cycling
Surge events up to 150 kA using TMOV technology
The two halves cover different failure modes. The surge side absorbs transients from lightning and utility switching, with thermal protection that safely disables the surge elements if a hit exceeds their limits. The monitor side watches for the slower problems that quietly destroy compressors and ECM motors, and drops the contactor before damage occurs. The fault history tells you what actually happened rather than leaving you guessing.
Model note: this is the base 3VMS with a 40 amp contactor for 208/240 VAC. ICM also makes the 3VMS-60-208 with a 60 amp contactor and the 3VMS-60-480 for 480 VAC. Confirm your service voltage and required contactor rating before ordering.
Installation: three phase line voltage equipment. Installation by a licensed electrician or qualified HVAC/R technician is required.
ADDITIONAL INFORMATION FOR VERIFICATION:
Brand: ICM Controls
Model: 3VMS
MPN: 3VMS
Type: Line Voltage Monitor and Surge Protective Device
Phase: Three Phase
Voltage: 208/240 VAC
Contactor Rating: 40 A
Surge Rating: Up to 150 kA
Surge Technology: TMOV
SPD Type: Type 1 and Type 2
Enclosure Rating: NEMA 4X
Display: Backlit LCD with Fault History
Programmable: Yes
Protection: Over Voltage, Under Voltage, Phase Loss, Phase Reversal, Phase Unbalance, Short Cycling
Application: HVAC/R, Commercial, Residential Three Phase
Certification: UL Listed
Warranty: Limited Lifetime
Condition: New
