NEW - Stage 2 Cam Kit E1840P LS LS1 4.8 5.3 5.7 Lifters Springs Head Gaskets
NEW - Stage 2 Cam Kit E1840P LS LS1 4.8 5.3 5.7 Lifters Springs Head Gaskets
Regular price
$319.99 USD
Regular price
$564.99 USD
Sale price
$319.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Sloppy Stage 2 camshaft kit for Gen III LS engines. New, complete kit.

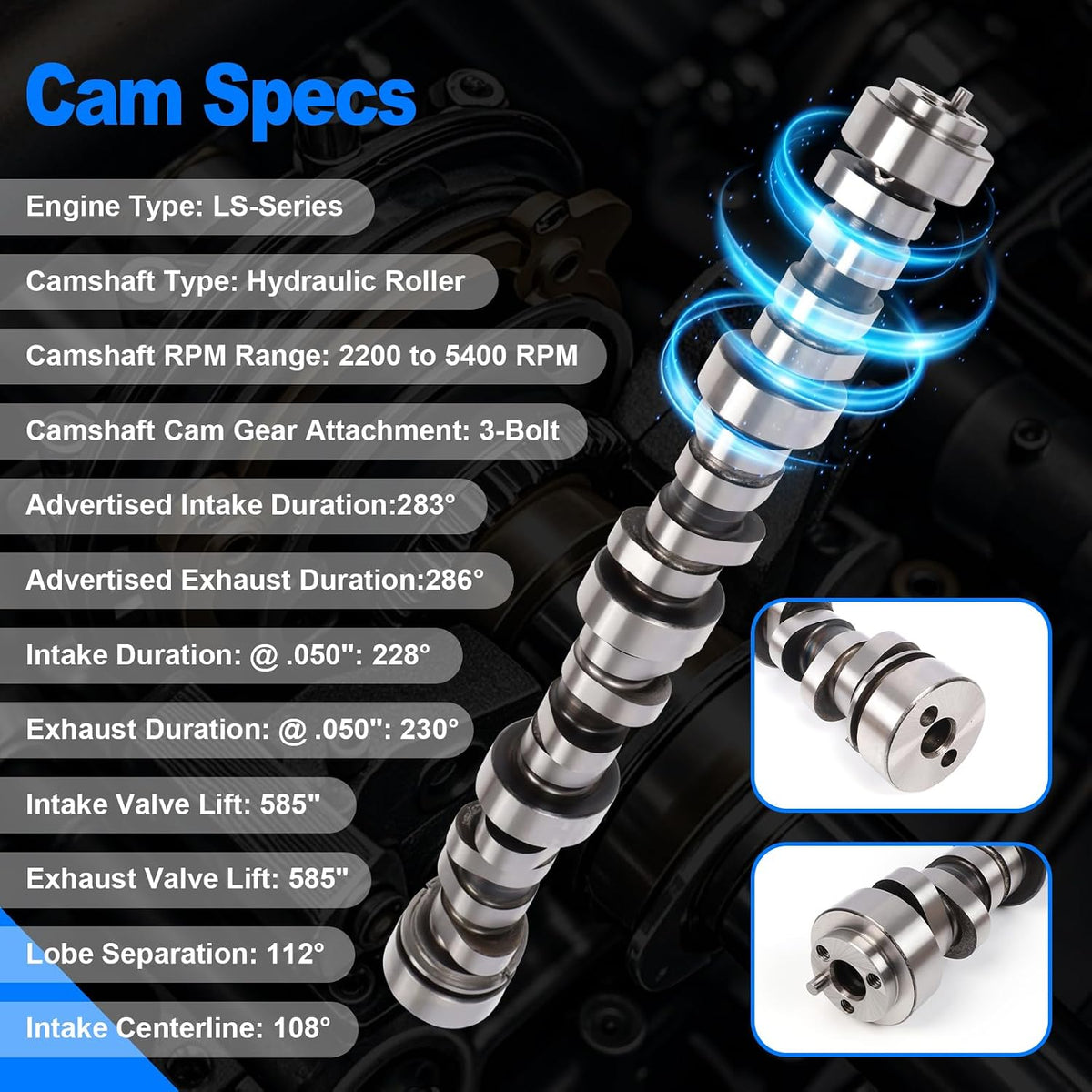

Camshaft specifications
Part number: E1840P
Type: hydraulic roller
Duration at .050: 228 intake, 230 exhaust
Advertised duration: 283 intake, 286 exhaust
Valve lift: .585 intake, .585 exhaust
Lobe separation angle: 112 degrees
Intake centerline: 108 degrees
RPM range: 2,200 to 5,400
Cam gear: 3-bolt

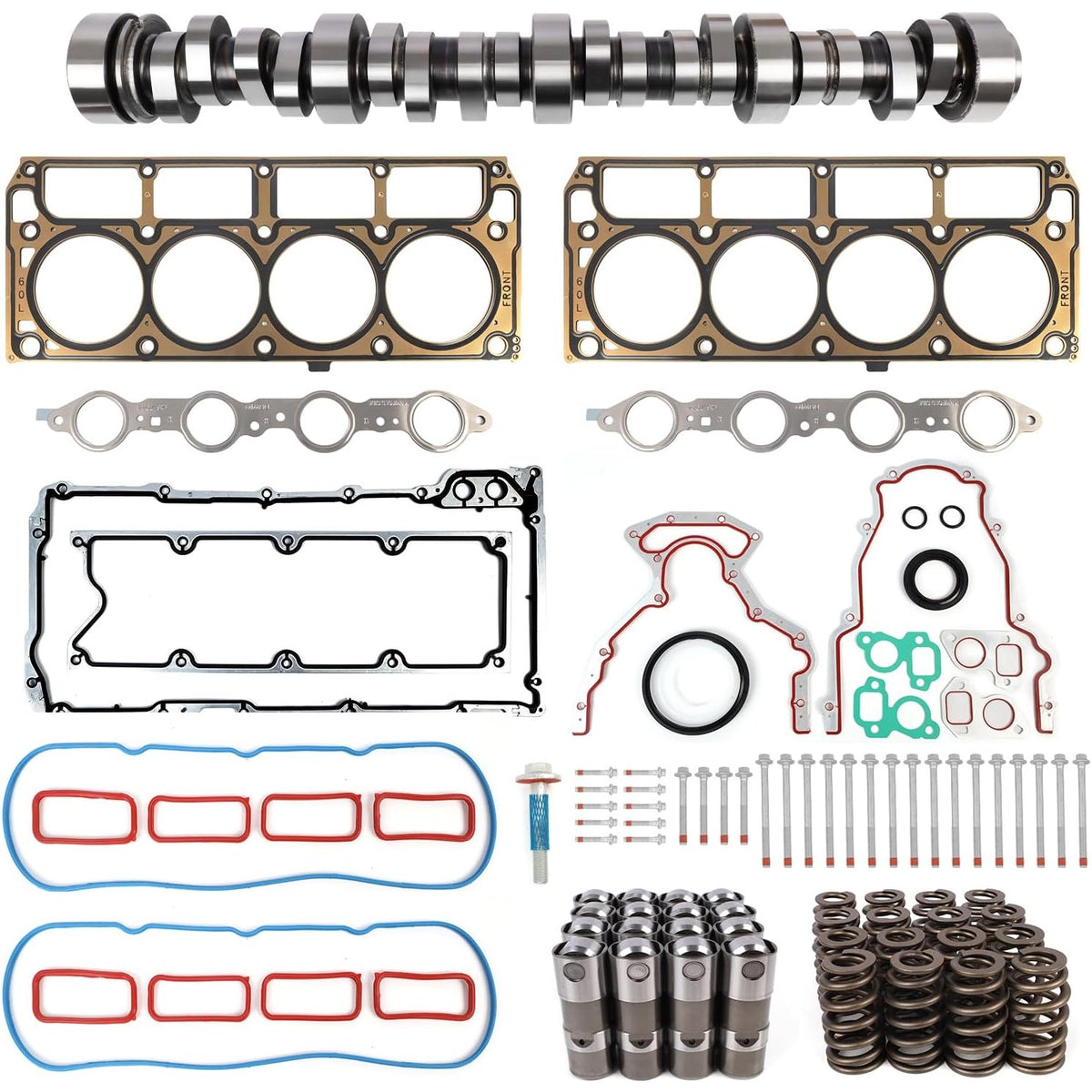

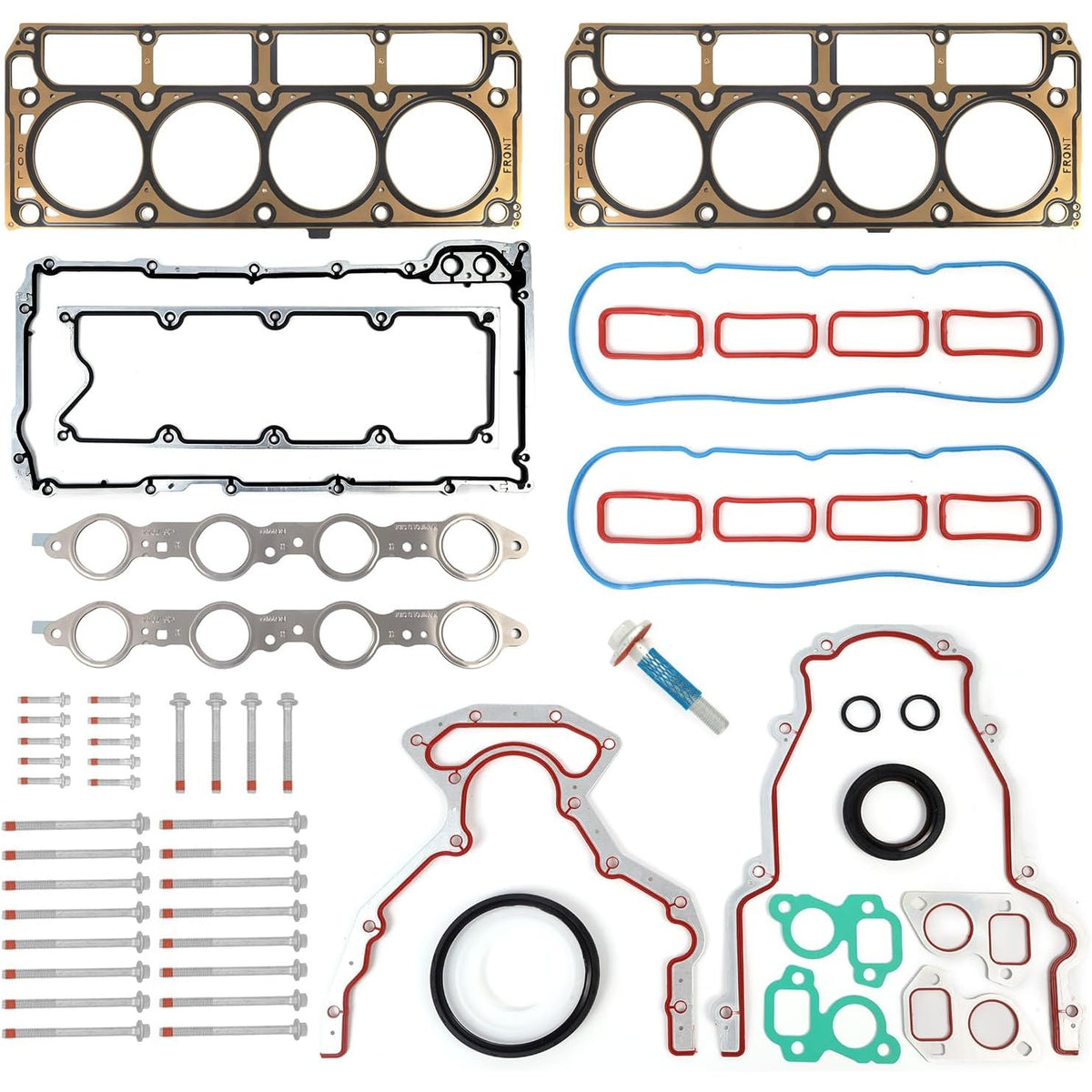

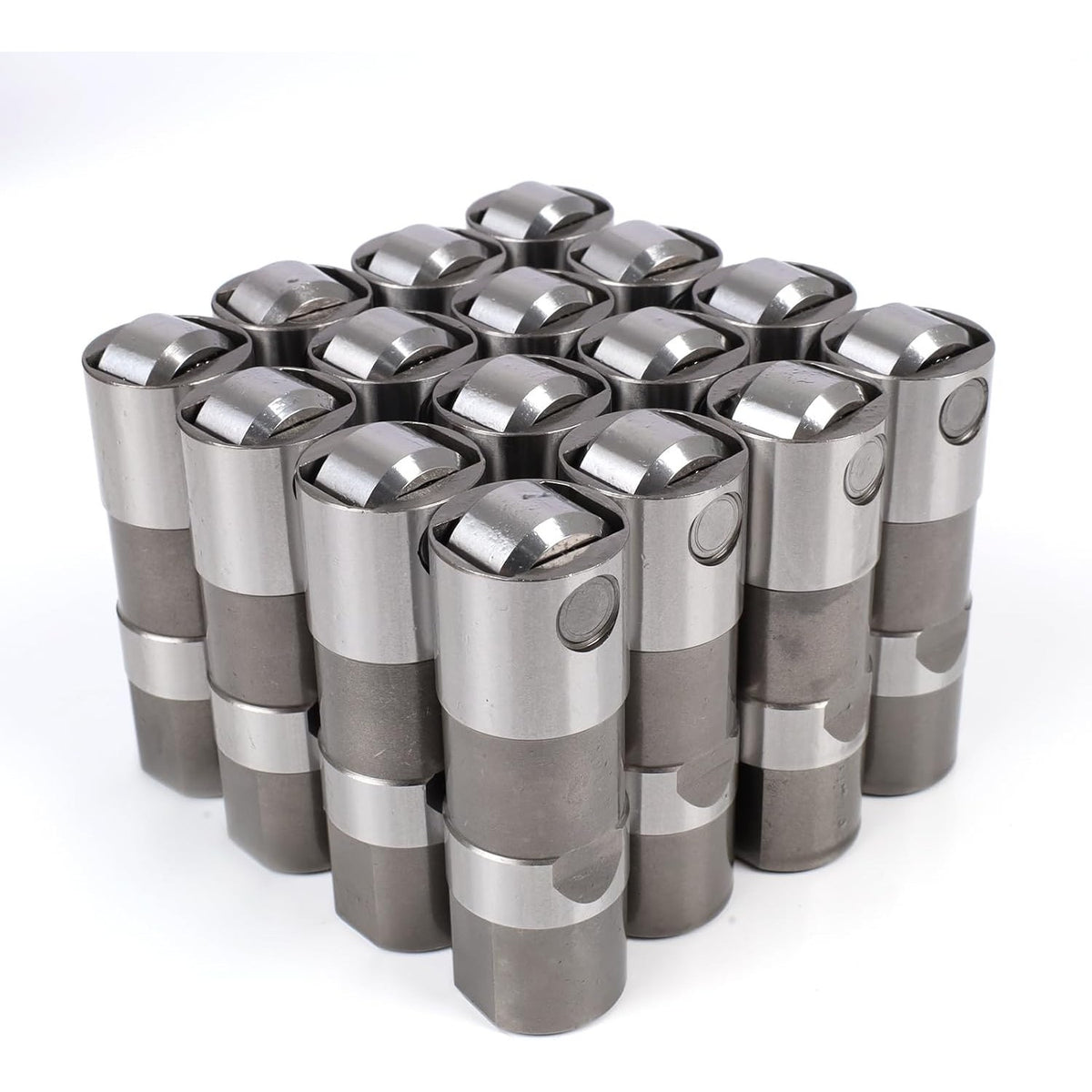

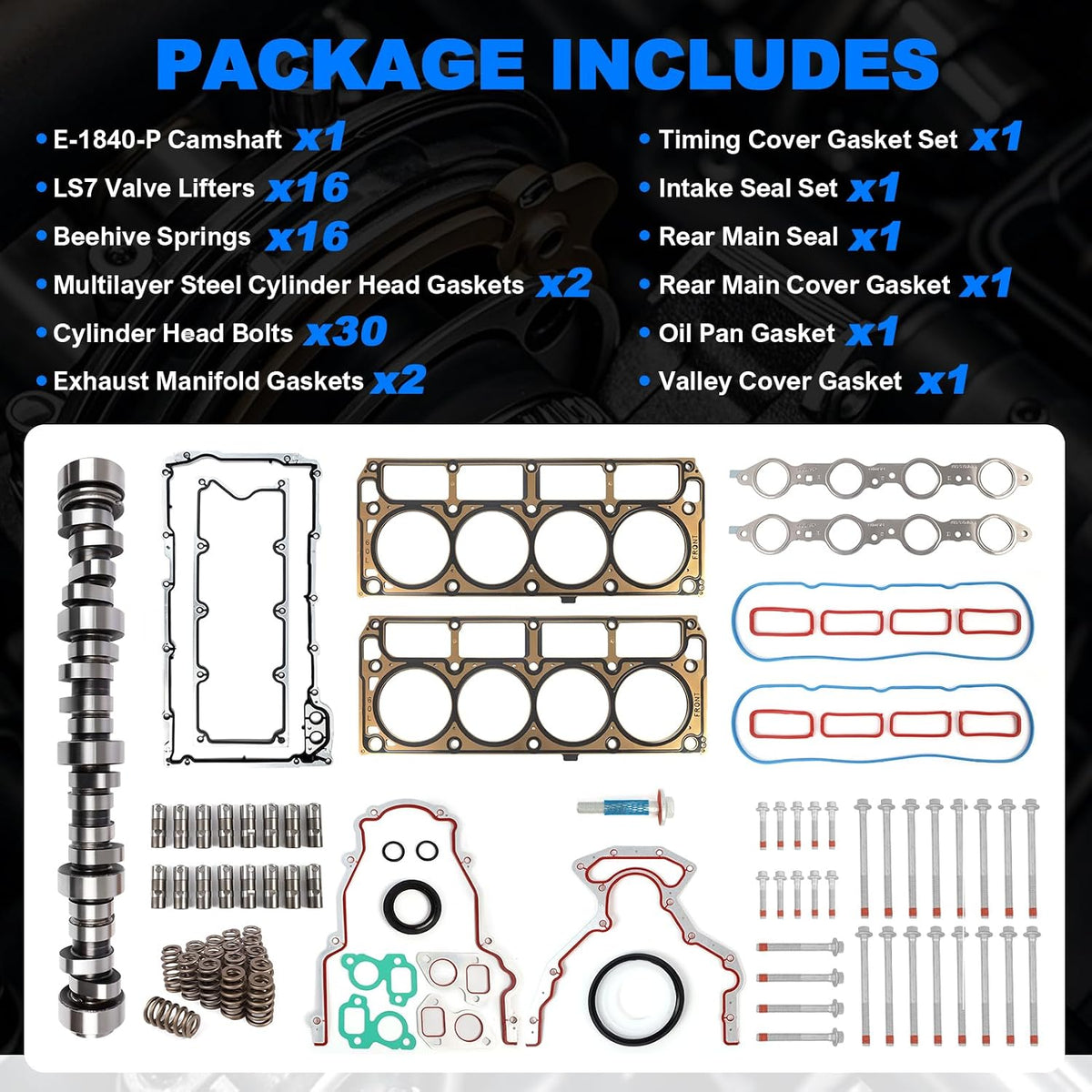

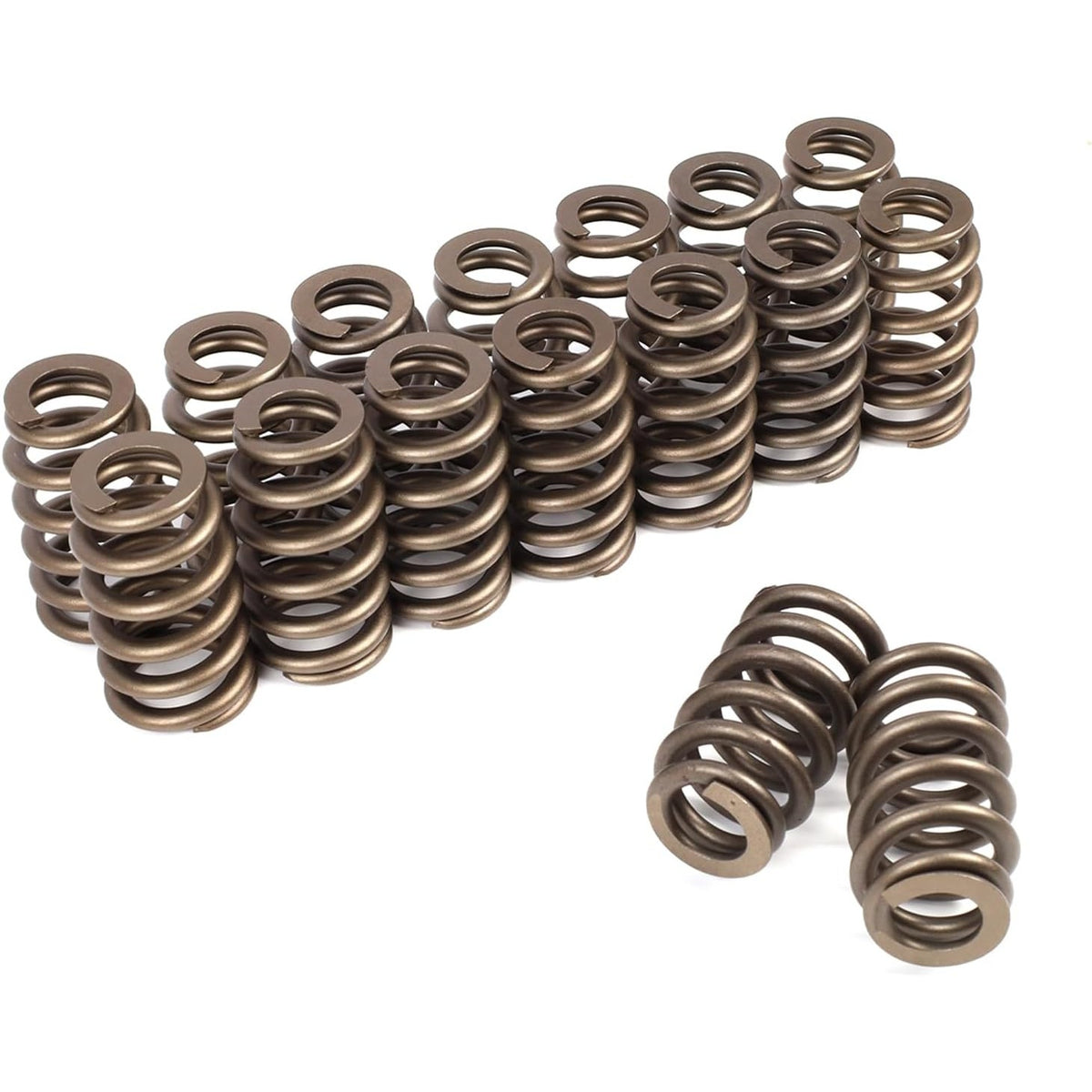

Included: E1840P camshaft, 16 LS7 lifters, 16 valve springs, head gaskets and head bolt set
Fitment: 1997 to 2007 GM LS Gen III engines including LS1, LS6, 4.8L, 5.3L, 5.7L and 6.0L
REQUIREMENTS, please read all of this before ordering
3-bolt cam gear required. Gen III LS engines use a 3-bolt cam gear. Later engines use a single cam bolt and will need a 3-bolt timing set to run this cam.
Not compatible with AFM or DOD. If your engine has Active Fuel Management or Displacement on Demand, you need an AFM delete kit and the system disabled in the ECM.
Custom tuning is required. This is not a bolt-on part. The engine will not run correctly on the factory tune.
Vacuum: the 112 LSA produces a strong lopey idle but may not generate enough vacuum for power brakes and air conditioning. If your vacuum is marginal, plan on an electric vacuum pump.
Automatic transmissions: a 2,500 to 2,800 RPM stall converter is recommended to get the most out of this cam.
Pushrods are not included. Verify your pushrod length after installation. Many builds with this cam use 7.400 inch pushrods.
This is a performance camshaft intended for off-road and racing use. It is not emissions legal for street use on emissions-controlled vehicles in many states, and it is not CARB certified.
SUMMARIZED INFORMATION FOR VERIFICATION:
Type: Camshaft Kit
Manufacturer Part Number: E1840P
Interchange Part Number: E-1840-P, 1840P
Camshaft Type: Hydraulic Roller
Duration at .050 in: 228 Intake / 230 Exhaust
Advertised Duration: 283 Intake / 286 Exhaust
Valve Lift: .585 in Intake / .585 in Exhaust
Lobe Separation Angle: 112 degrees
Intake Centerline: 108 degrees
RPM Range: 2200 to 5400
Cam Gear Type: 3-Bolt
Compatible Vehicle Make: Chevrolet, GMC
Engine: LS, LS1, LS6, 4.8L, 5.3L, 5.7L, 6.0L Gen III
Items Included: Camshaft, LS7 Lifters, Valve Springs, Head Gaskets, Head Bolts
AFM/DOD Compatible: No
Tuning Required: Yes
Fitment Type: Performance/Custom
Placement on Vehicle: Front
Condition: New
Camshaft specifications
Part number: E1840P
Type: hydraulic roller
Duration at .050: 228 intake, 230 exhaust
Advertised duration: 283 intake, 286 exhaust
Valve lift: .585 intake, .585 exhaust
Lobe separation angle: 112 degrees
Intake centerline: 108 degrees
RPM range: 2,200 to 5,400
Cam gear: 3-bolt
Included: E1840P camshaft, 16 LS7 lifters, 16 valve springs, head gaskets and head bolt set
Fitment: 1997 to 2007 GM LS Gen III engines including LS1, LS6, 4.8L, 5.3L, 5.7L and 6.0L
REQUIREMENTS, please read all of this before ordering
3-bolt cam gear required. Gen III LS engines use a 3-bolt cam gear. Later engines use a single cam bolt and will need a 3-bolt timing set to run this cam.
Not compatible with AFM or DOD. If your engine has Active Fuel Management or Displacement on Demand, you need an AFM delete kit and the system disabled in the ECM.
Custom tuning is required. This is not a bolt-on part. The engine will not run correctly on the factory tune.
Vacuum: the 112 LSA produces a strong lopey idle but may not generate enough vacuum for power brakes and air conditioning. If your vacuum is marginal, plan on an electric vacuum pump.
Automatic transmissions: a 2,500 to 2,800 RPM stall converter is recommended to get the most out of this cam.
Pushrods are not included. Verify your pushrod length after installation. Many builds with this cam use 7.400 inch pushrods.
This is a performance camshaft intended for off-road and racing use. It is not emissions legal for street use on emissions-controlled vehicles in many states, and it is not CARB certified.
SUMMARIZED INFORMATION FOR VERIFICATION:
Type: Camshaft Kit
Manufacturer Part Number: E1840P
Interchange Part Number: E-1840-P, 1840P
Camshaft Type: Hydraulic Roller
Duration at .050 in: 228 Intake / 230 Exhaust
Advertised Duration: 283 Intake / 286 Exhaust
Valve Lift: .585 in Intake / .585 in Exhaust
Lobe Separation Angle: 112 degrees
Intake Centerline: 108 degrees
RPM Range: 2200 to 5400
Cam Gear Type: 3-Bolt
Compatible Vehicle Make: Chevrolet, GMC
Engine: LS, LS1, LS6, 4.8L, 5.3L, 5.7L, 6.0L Gen III
Items Included: Camshaft, LS7 Lifters, Valve Springs, Head Gaskets, Head Bolts
AFM/DOD Compatible: No
Tuning Required: Yes
Fitment Type: Performance/Custom
Placement on Vehicle: Front
Condition: New
