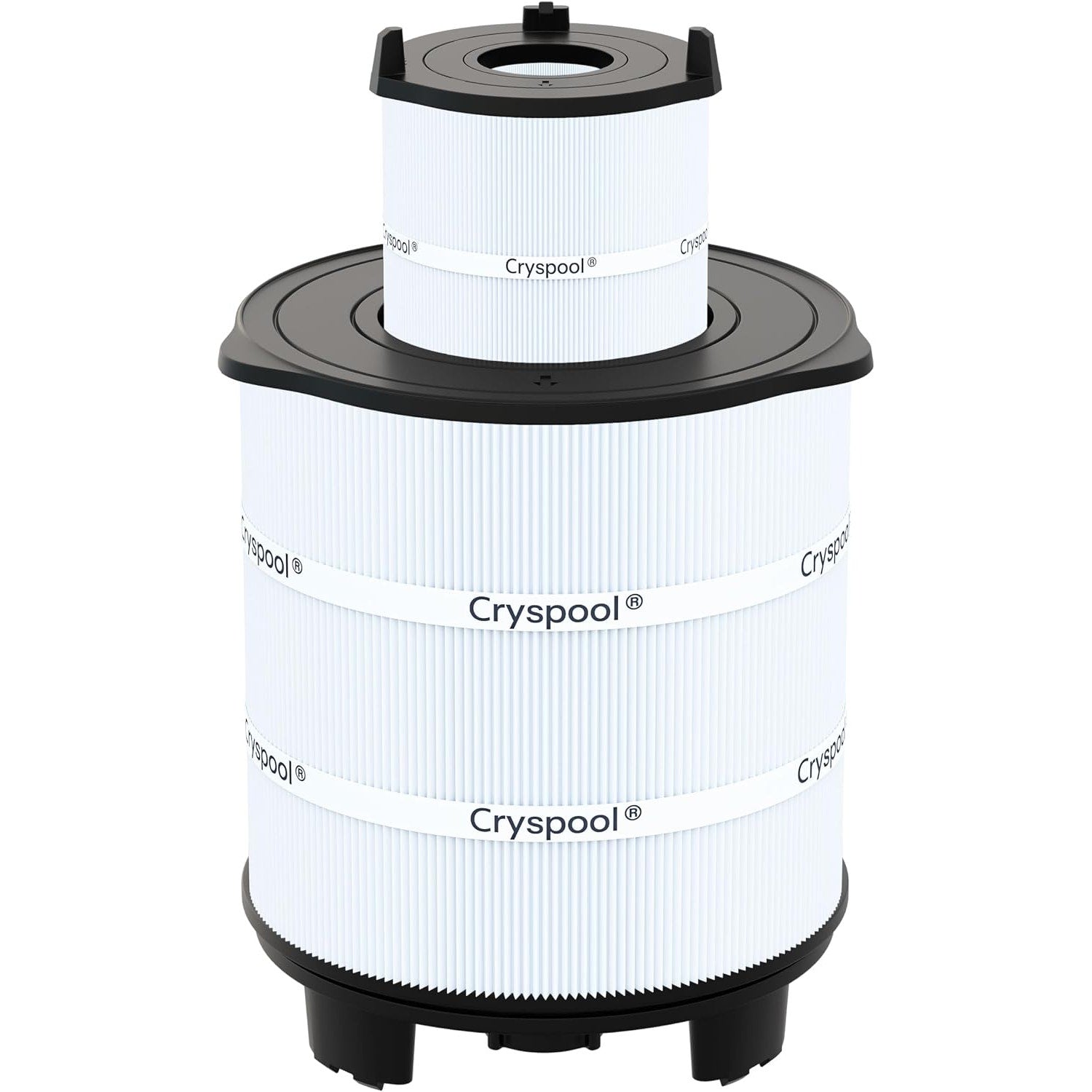

Aftermarket replacement cartridge module set for the Sta-Rite System 3 S7M400 filter. New, complete set of 2.
This is an aftermarket replacement set. It is not manufactured by Sta-Rite or Pentair.

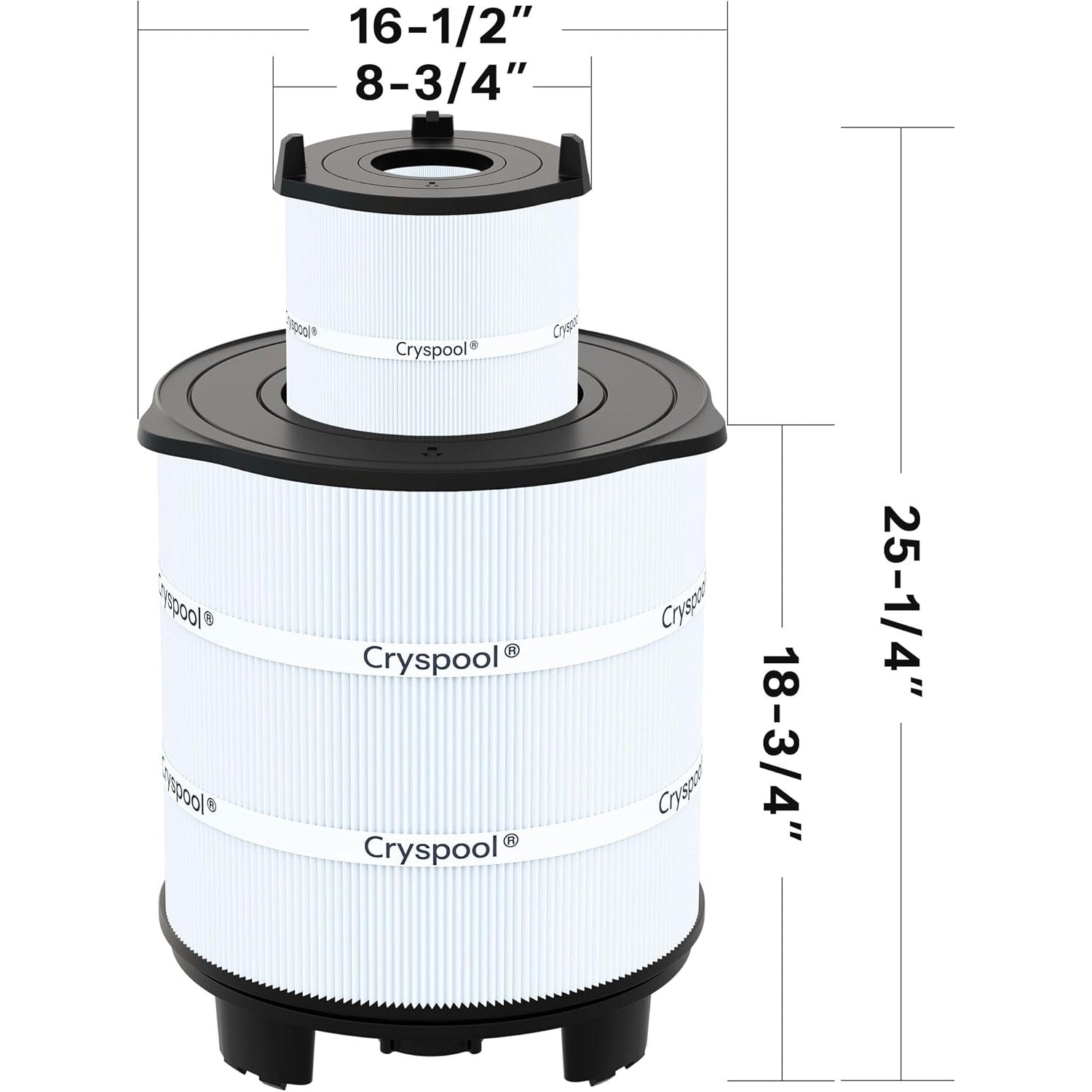

Fits: Sta-Rite System 3 S7M400 modular media cartridge filter, 400 sq ft Set includes: 1 inner module and 1 outer module Total filtration area: 400 sq ft Module areas: 264 sq ft and 136 sq ft
Replaces 170146 kit 25022-0224S 25021-0224S
The System 3 design combines the cartridge and the water collecting manifold into one module, with the manifold sitting between the inner and outer pleats. Water is filtered through both the outer fabric surface and the inner core surface, which is where the 400 sq ft of area comes from in a tank this size.
Replace both modules as a set. Running a new module against a worn one puts uneven load on the new one and shortens its life.
Before ordering, read the part numbers molded into your existing cartridges and match them to the numbers above. Sta-Rite used more than one small module across the System 3 range and they are not interchangeable.
Note: the S7M400 uses 7 clamps and nuts. If your filter uses 8, you have an S8M model and this set will not fit.
ADDITIONAL INFORMATION FOR VERIFICATION: Type: Pool Filter Cartridge Filter Area: 400 sq ft Number of Cartridges: 2 Configuration: Inner and Outer Module Set Compatible Filter Model: Sta-Rite System 3 S7M400 Interchange Part Number: 170146, 25022-0224S, 25021-0224S Pool Type: In-Ground Material: Polyester Filter Fabric Condition: New
