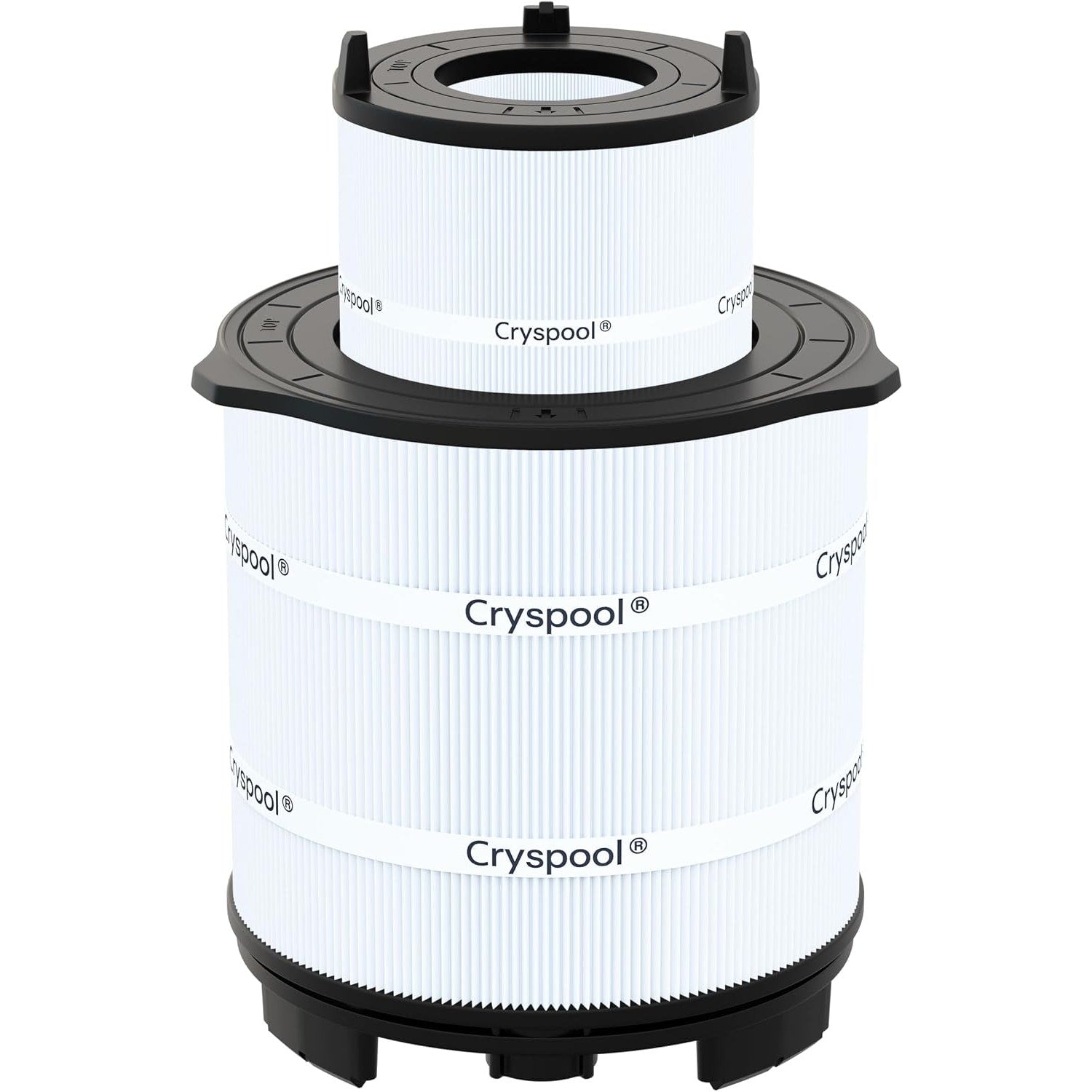

Aftermarket replacement cartridge module set for the Sta-Rite System 3 S8M500 filter. New, complete set of 2.
This is an aftermarket replacement set. It is not manufactured by Sta-Rite or Pentair.
Fits: Sta-Rite System 3 S8M500 modular media cartridge filter, 500 sq ft

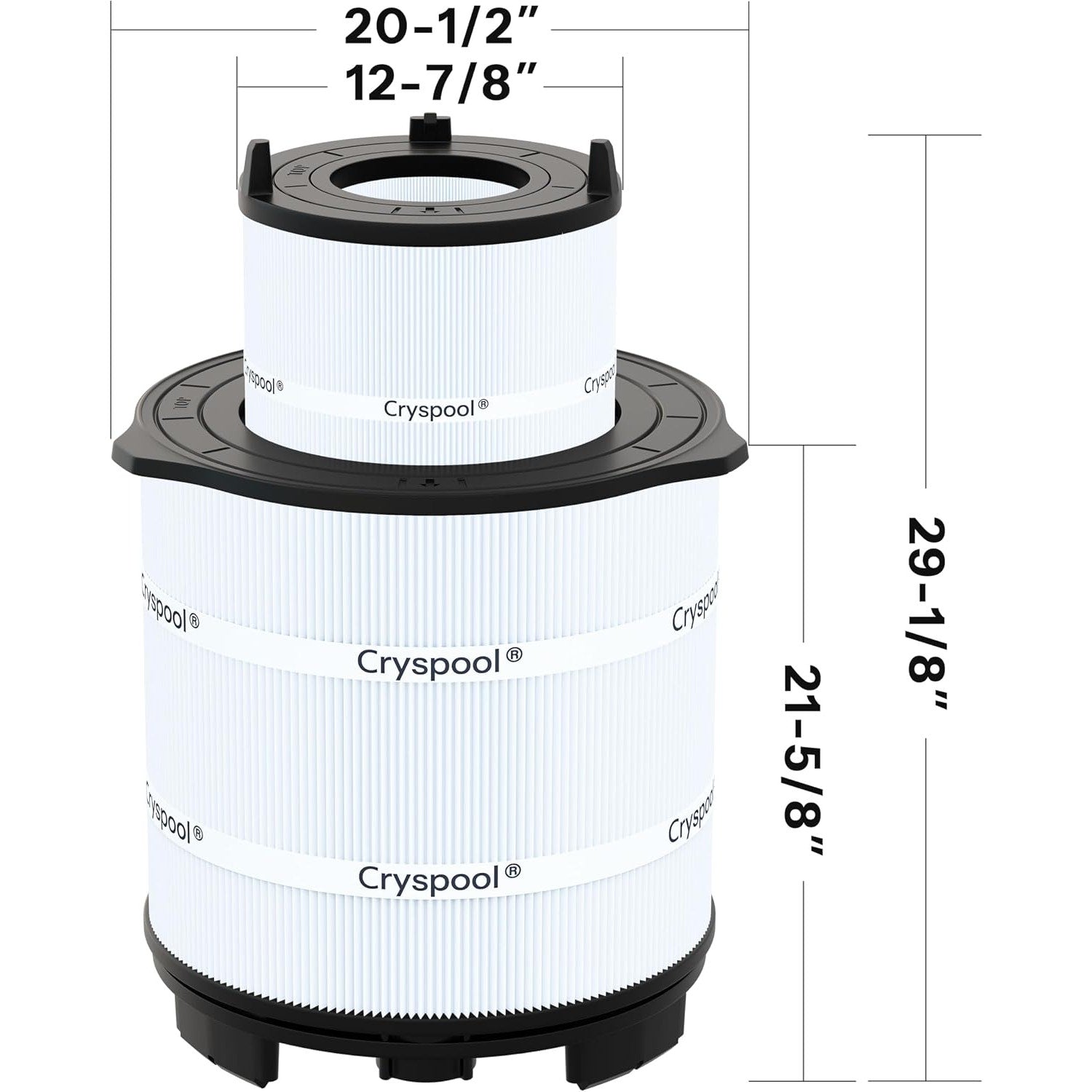

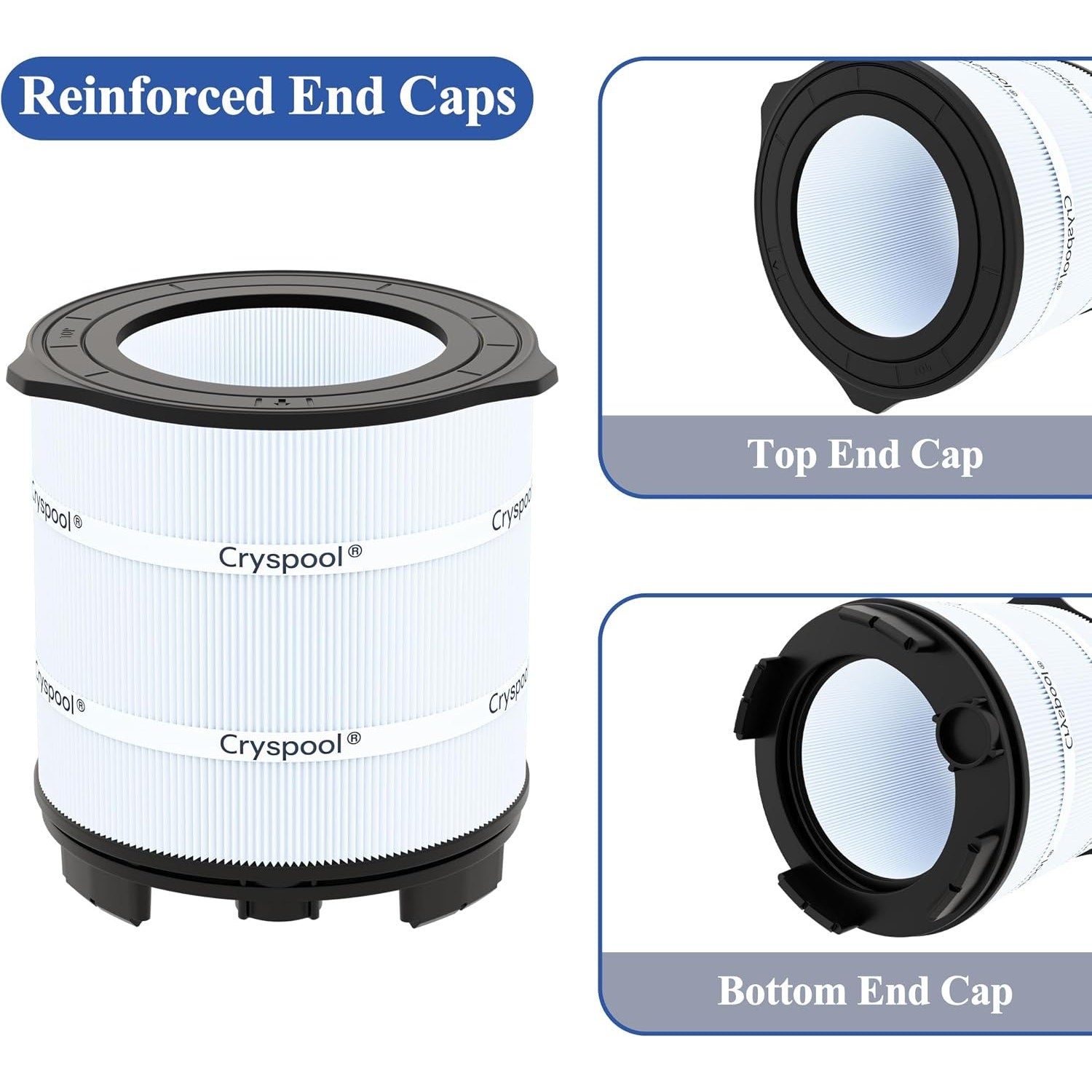

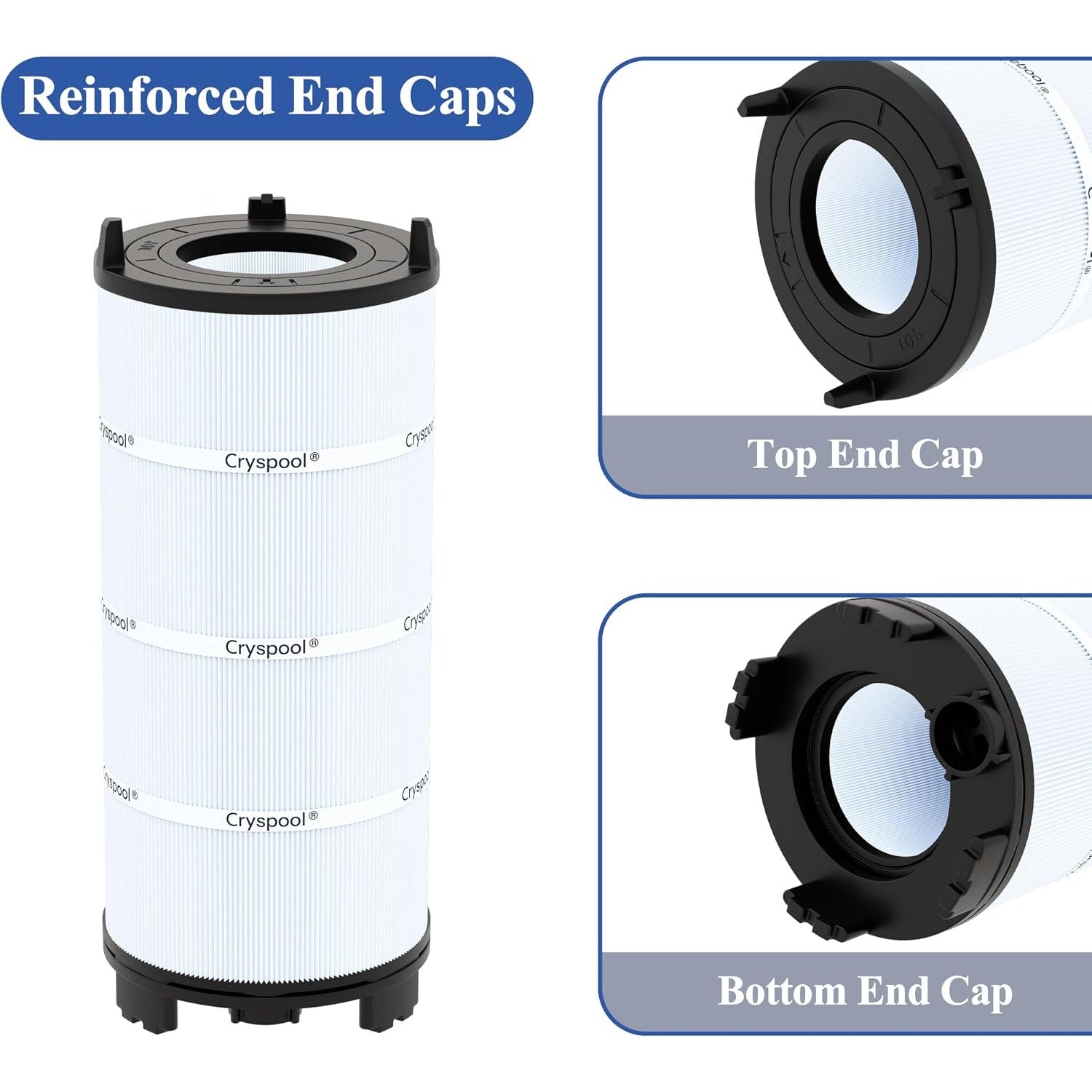

Inner module: replaces 25021-0224S, 209 sq ft, 31 inches long, 14.5 inch outer diameter Outer module: replaces 25022-0225S, 291 sq ft, 23.25 inches long, 23 inch outer diameter Total filtration area: 500 sq ft Replaces kit 170148
The System 3 design combines the cartridge and the water collecting manifold into one module, with the manifold sitting between the inner and outer pleats. Water filters through both the outer fabric surface and the inner core surface, which is where 500 sq ft of area fits into a tank this size.
Please confirm your filter model before ordering
This set fits the S8M500 only. It does not fit the S8M150, which is a 450 sq ft filter using kit 170147 and cartridges 25021-0202S and 25022-0203S. It does not fit the S7M400 or S7M120.
Read the part numbers molded into your existing cartridges and measure them against the dimensions listed above.
Replace both modules as a set. Running a new module against a worn one loads the new one unevenly and shortens its life.

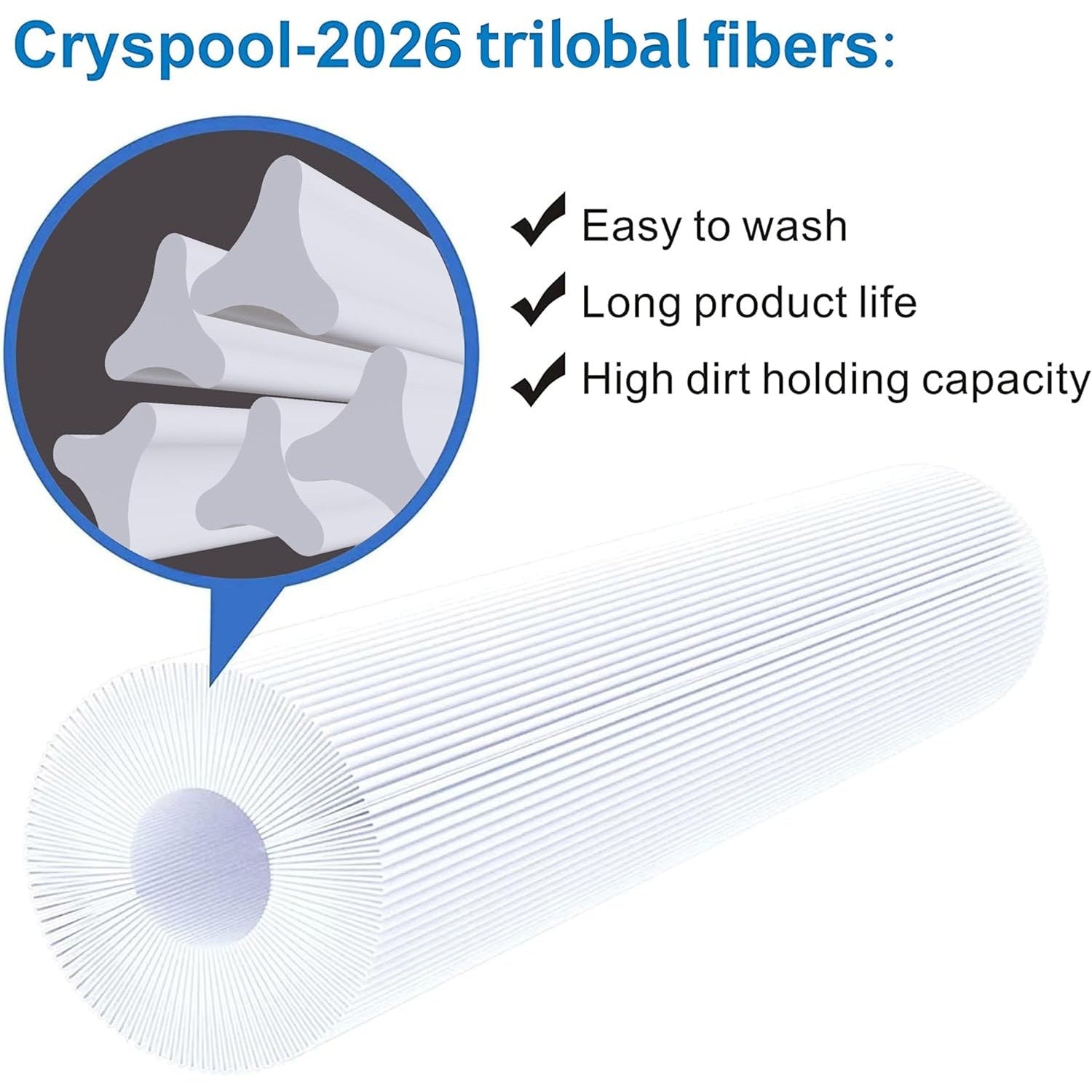

ADDITIONAL INFORMATION FOR VERIFICATION: Type: Pool Filter Cartridge Filter Area: 500 sq ft Number of Cartridges: 2 Configuration: Inner and Outer Module Set Compatible Filter Model: Sta-Rite System 3 S8M500 Interchange Part Number: 170148, 25022-0225S, 25021-0224S Inner Cartridge Area: 209 sq ft Outer Cartridge Area: 291 sq ft Pool Type: In-Ground Material: Polyester Filter Fabric Condition: New
