Rear Differential Gear Case Honda TRX250 Big Red ATC250ES 85-87 41300-HA0-680
Rear Differential Gear Case Honda TRX250 Big Red ATC250ES 85-87 41300-HA0-680
Regular price
$219.99 USD
Regular price
$299.99 USD
Sale price
$219.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

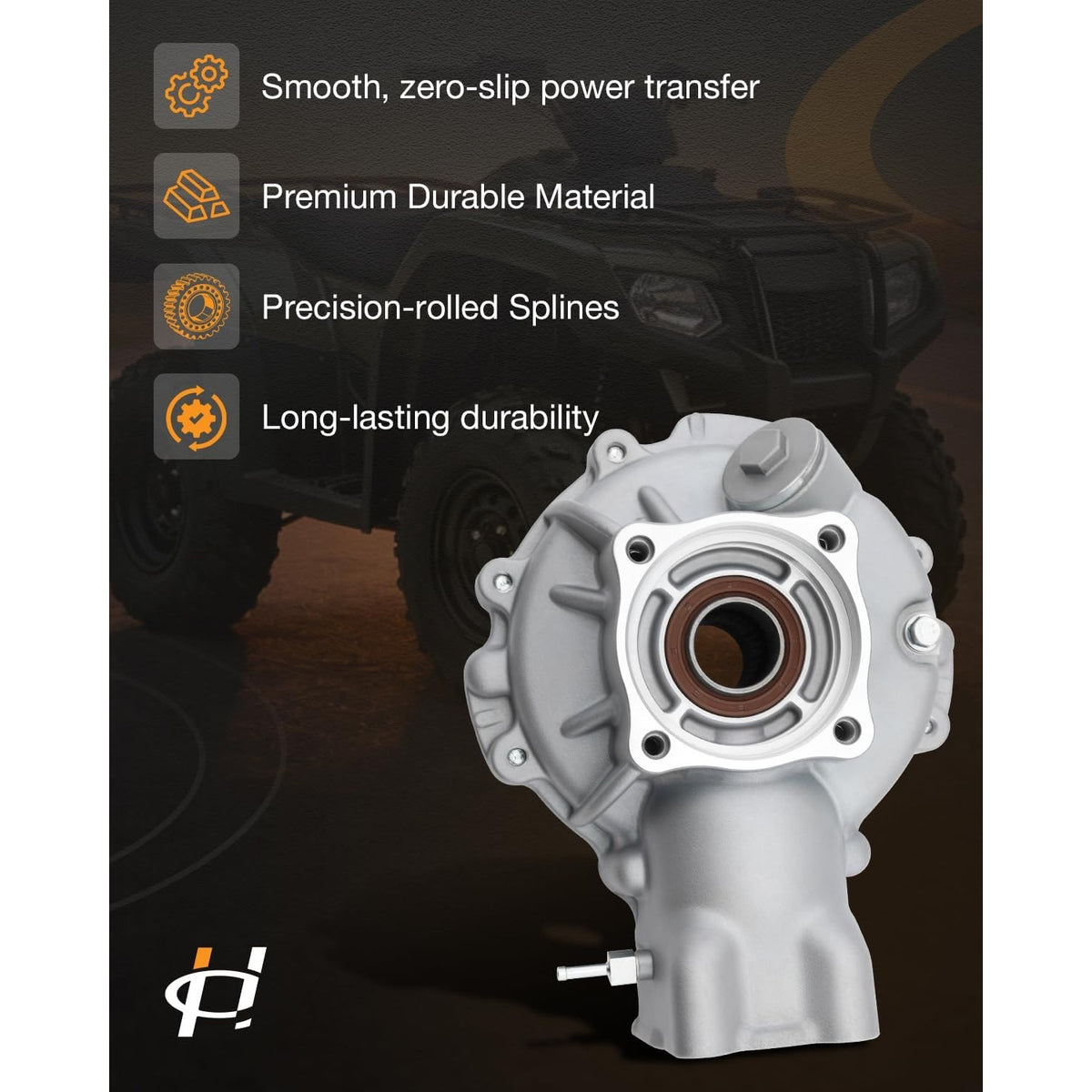

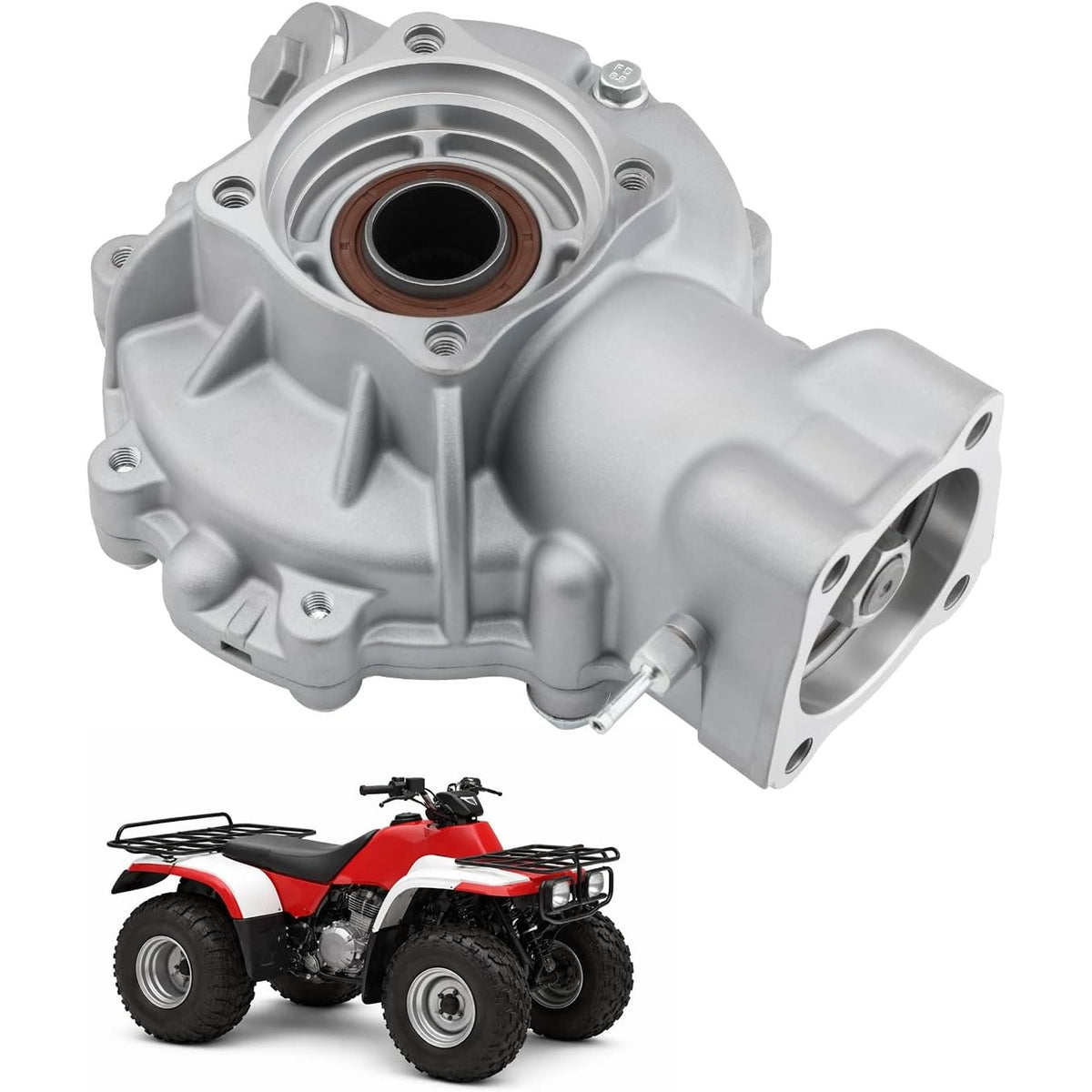

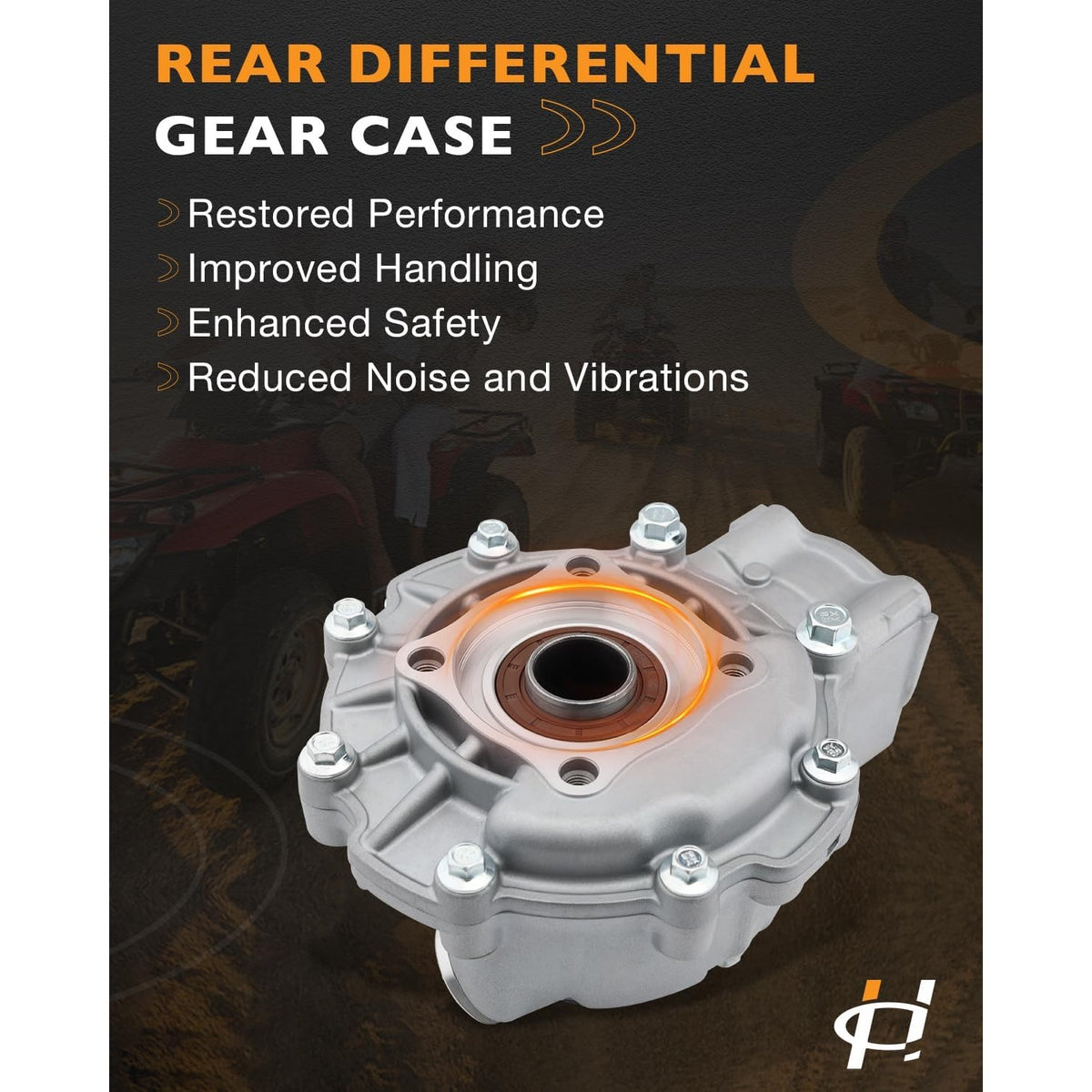

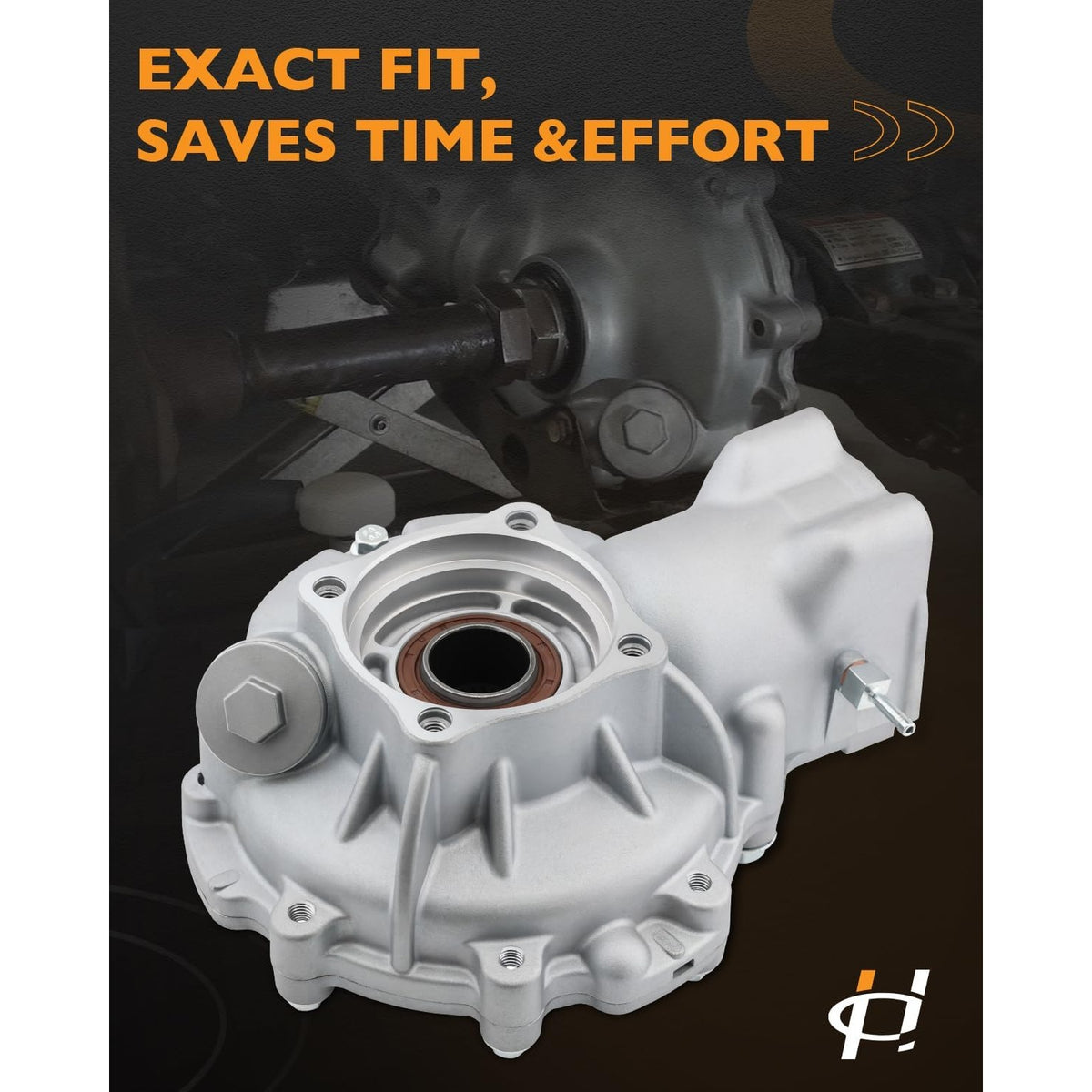

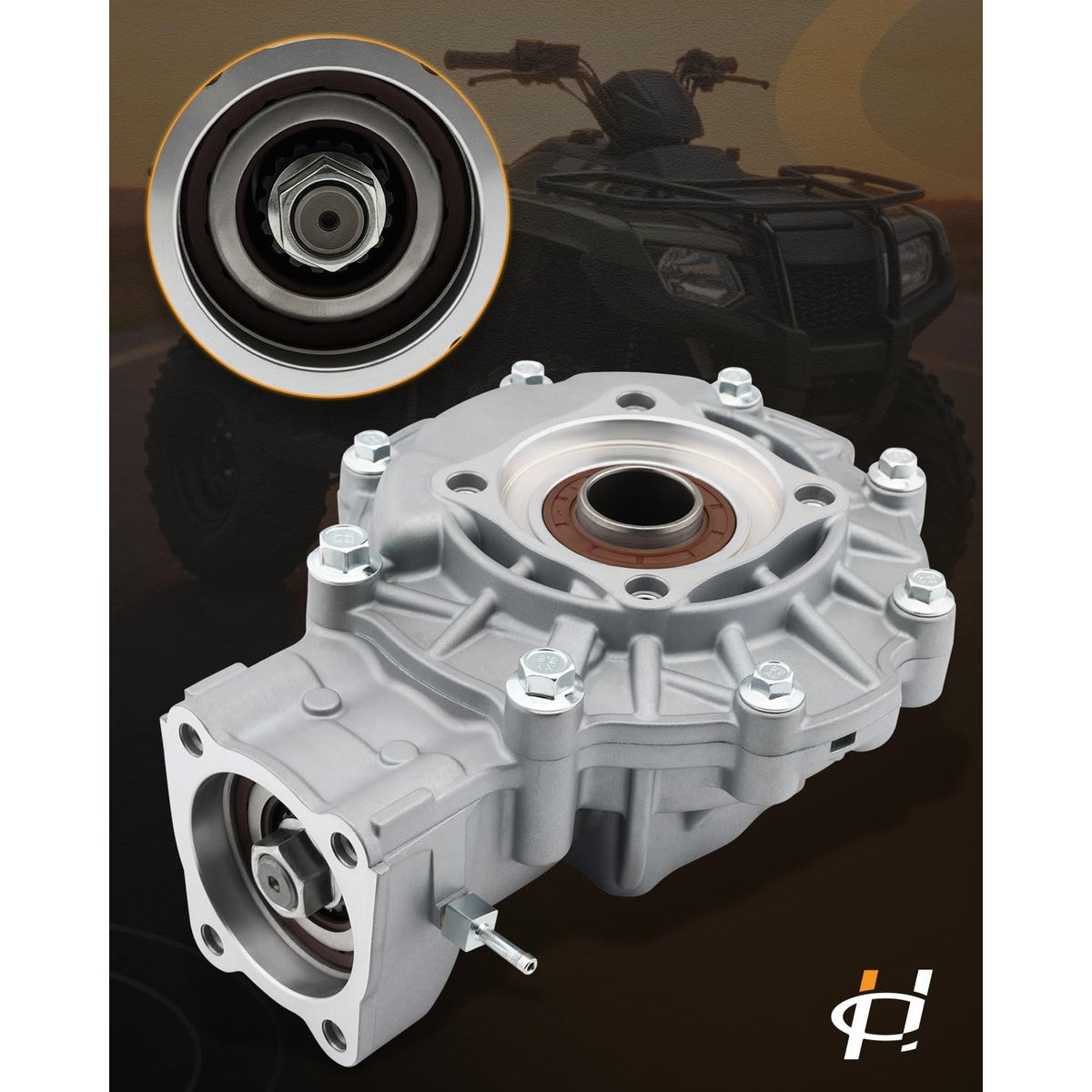

Rear differential gear case assembly for the Honda 250. New.
This is an aftermarket replacement part. It is not manufactured by Honda.
Fitment
Honda FourTrax 250 2x4 TRX250, 1985 to 1987
Honda Big Red 250 ATC250ES, 1985 to 1987
Replaces
41300-HA0-680
41300-HA0-020
41300-HA0-010
41300-HA0-000
Specifications
Type: gear differential
Case material: A383 aluminum
Ring and pinion material: SAE5120 steel
Gear ratio: 3.891
Input coupler spline count: 27
Shaft spline count: 17
IMPORTANT: this unit ships with NO OIL INSIDE. Fill it with the correct gear oil to the level specified in your service manual before operating. Running a differential dry will destroy it on the first ride.
Also note: mounting bolts, the fill and drain plugs, bearings and bushings are not included unless otherwise stated. Reuse your existing hardware or order those separately.
The 1985 to 1987 TRX250 and ATC250ES share this differential, which is useful since good used units for these machines are getting hard to find and are usually worn or leaking.
Before ordering, check the part number stamped on your existing differential against the numbers above.
ADDITIONAL INFORMATION FOR VERIFICATION:
Type: Rear Differential Gear Case Assembly
Manufacturer Part Number: 41300-HA0-680
Interchange Part Number: 41300-HA0-020, 41300-HA0-010, 41300-HA0-000
Compatible Vehicle Make: Honda
Compatible Vehicle Model: FourTrax 250 TRX250, Big Red 250 ATC250ES
Compatible Year: 1985, 1986, 1987
Differential Type: Gear Differential
Gear Ratio: 3.891
Case Material: A383 Aluminum
Ring and Pinion Material: SAE5120 Steel
Input Coupler Spline Count: 27
Shaft Spline Count: 17
Oil Included: No
Placement on Vehicle: Rear
California Prop 65 Warning: Yes
Country of Origin: China
Condition: New
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov
This is an aftermarket replacement part. It is not manufactured by Honda.
Fitment
Honda FourTrax 250 2x4 TRX250, 1985 to 1987
Honda Big Red 250 ATC250ES, 1985 to 1987
Replaces
41300-HA0-680
41300-HA0-020
41300-HA0-010
41300-HA0-000
Specifications
Type: gear differential
Case material: A383 aluminum
Ring and pinion material: SAE5120 steel
Gear ratio: 3.891
Input coupler spline count: 27
Shaft spline count: 17
IMPORTANT: this unit ships with NO OIL INSIDE. Fill it with the correct gear oil to the level specified in your service manual before operating. Running a differential dry will destroy it on the first ride.
Also note: mounting bolts, the fill and drain plugs, bearings and bushings are not included unless otherwise stated. Reuse your existing hardware or order those separately.
The 1985 to 1987 TRX250 and ATC250ES share this differential, which is useful since good used units for these machines are getting hard to find and are usually worn or leaking.
Before ordering, check the part number stamped on your existing differential against the numbers above.
ADDITIONAL INFORMATION FOR VERIFICATION:
Type: Rear Differential Gear Case Assembly
Manufacturer Part Number: 41300-HA0-680
Interchange Part Number: 41300-HA0-020, 41300-HA0-010, 41300-HA0-000
Compatible Vehicle Make: Honda
Compatible Vehicle Model: FourTrax 250 TRX250, Big Red 250 ATC250ES
Compatible Year: 1985, 1986, 1987
Differential Type: Gear Differential
Gear Ratio: 3.891
Case Material: A383 Aluminum
Ring and Pinion Material: SAE5120 Steel
Input Coupler Spline Count: 27
Shaft Spline Count: 17
Oil Included: No
Placement on Vehicle: Rear
California Prop 65 Warning: Yes
Country of Origin: China
Condition: New
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov
