UF414 Round Ignition Coils Iridium Plugs 10mm Wires Set of 8 Chevy GMC 5.3 6.0

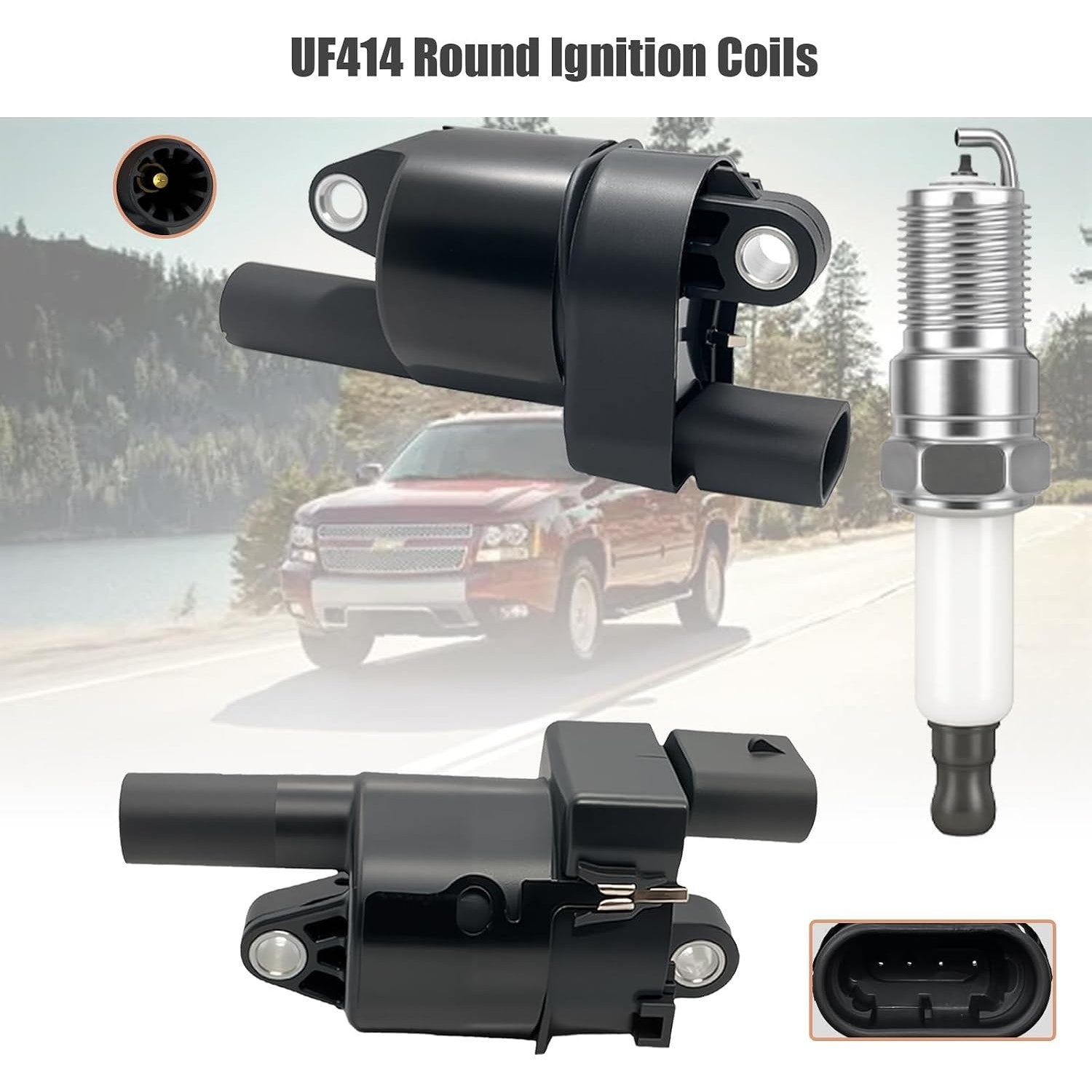

UF414 round ignition coil, iridium spark plug and 10mm wire kit. Set of 8. New.

Before you order, measure your bracket. GM LS engines came with two coil bracket styles and they are not interchangeable. Measure center to center between the two mounting bolts on your coil bracket. 65mm, about 2.55 inches, means this UF414 round kit is correct. 72mm, about 2.85 inches, means you need the UF413 square kit. Do not rely on a year and model lookup alone, since both styles appear on overlapping years of the same trucks.

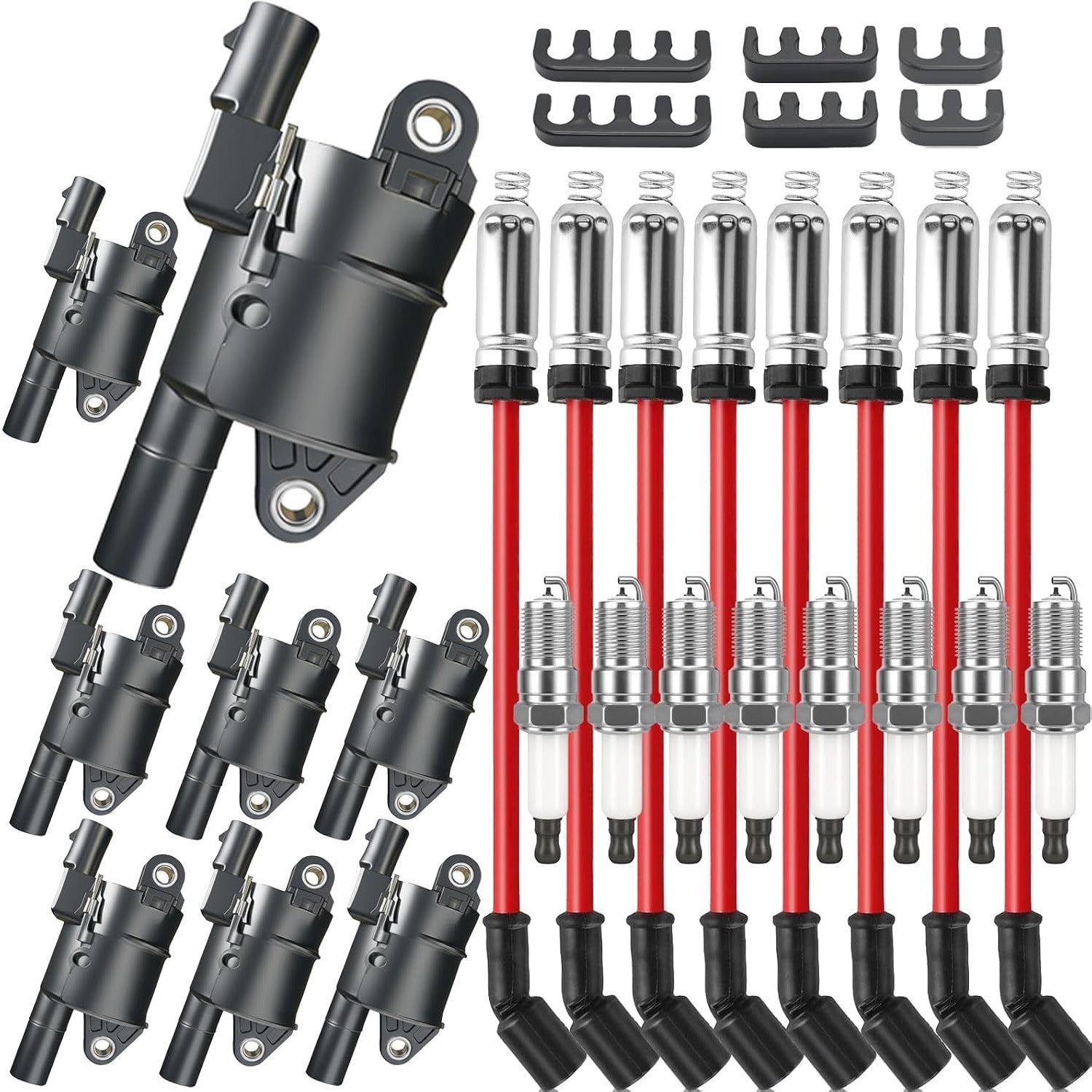

Includes 8 round ignition coils, 8 double iridium spark plugs and 8 10mm high temperature spark plug wires.

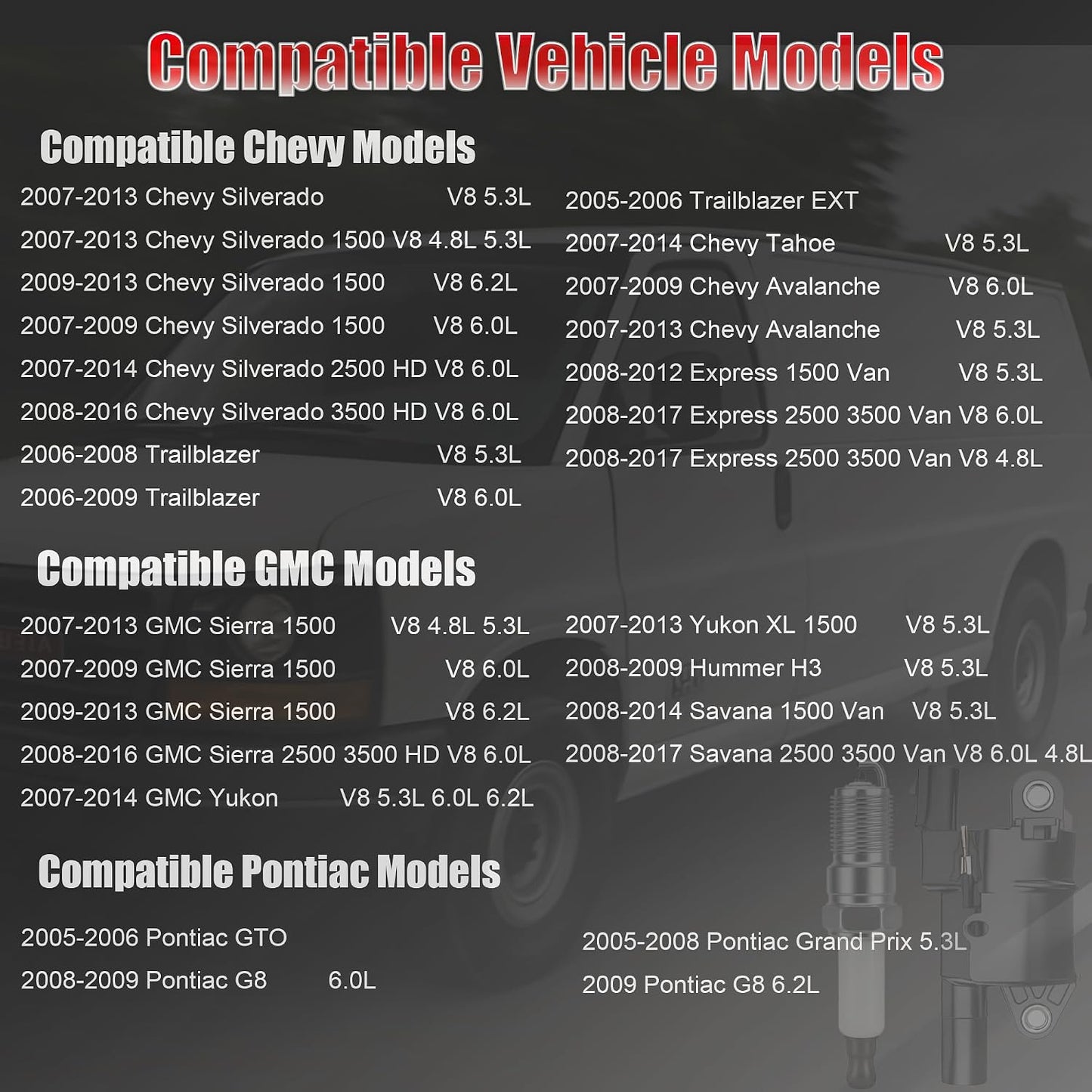

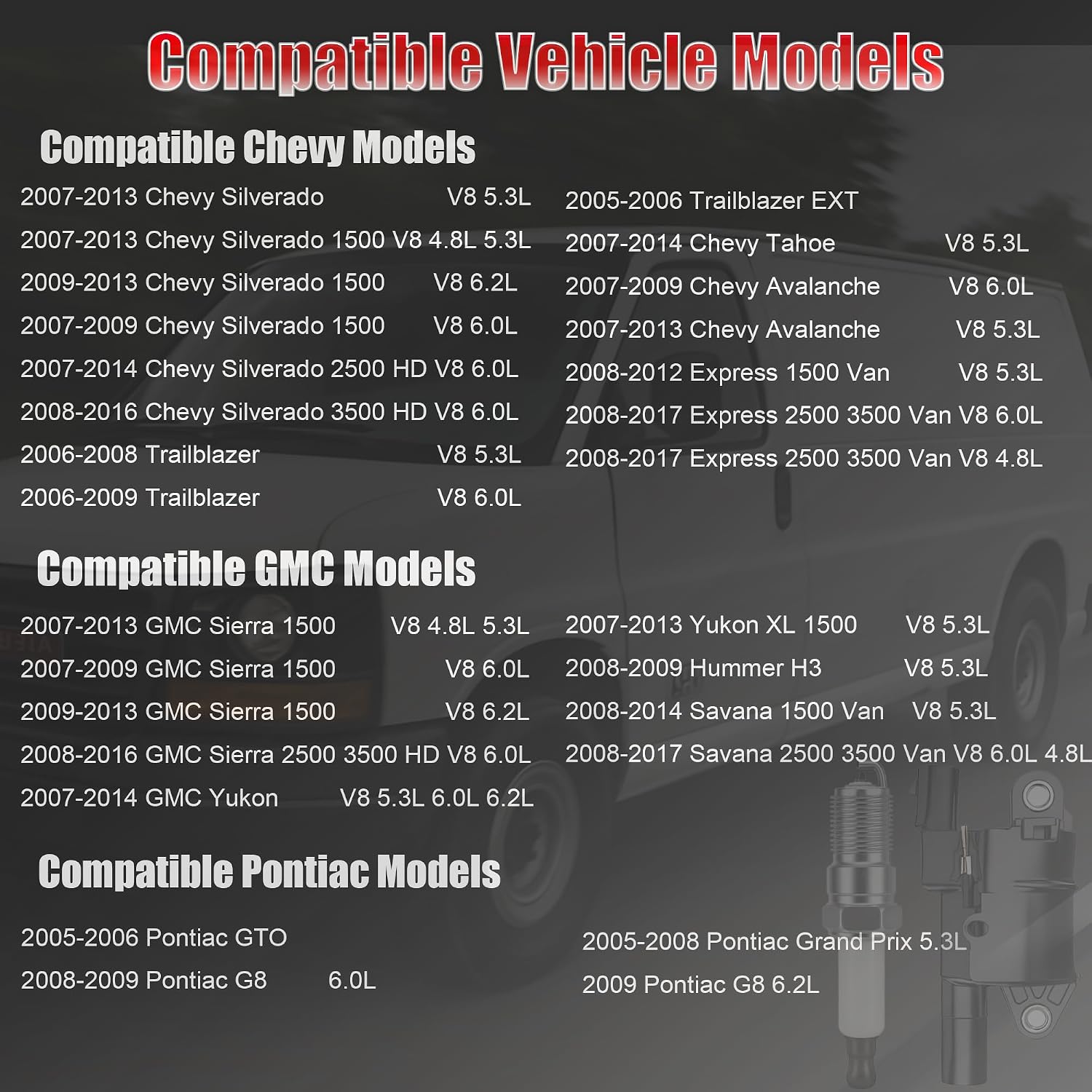

Fits 4.8L, 5.3L, 6.0L and 6.2L GM V8 engines in Chevrolet Avalanche, Express, Silverado, Suburban and Tahoe, GMC Savana, Sierra and Yukon, and Cadillac Escalade, generally 2007 and newer with round style coils.

Coil replaces: 12573190, 12611424, D514A, UF414, C1512, 5C1555, E894, 52-1820, IC534, CUF414, GN10165, 1788407, C599, 50069
Plugs replace: 41-110, 41-962
Wires replace: 748UU, 758EE

ADDITIONAL INFORMATION FOR VERIFICATION:
Type: Ignition Coil, Spark Plug and Wire Set
Coil Type: Round Coils
Coil Style: Coil on Plug (COP)
Manufacturer Part Number: UF414, C1512, IC534
OE/OEM Part Number: 12573190, 12611424, D514A, GN10165, 5C1555, E894, 52-1820
Interchange Part Number: CUF414, 1788407, C599, 50069, 6737104
Spark Plug Part Number: 41-110, 41-962
Spark Plug Wire Part Number: 748UU, 758EE
Quantity: Set of 8
Connection: 4 pins
Terminal Type: Blade
Spark Plug Wire Diameter: 10mm
Spark Plug Type: Double Iridium
Placement on Vehicle: Front
Country of Origin: China
Condition: New
